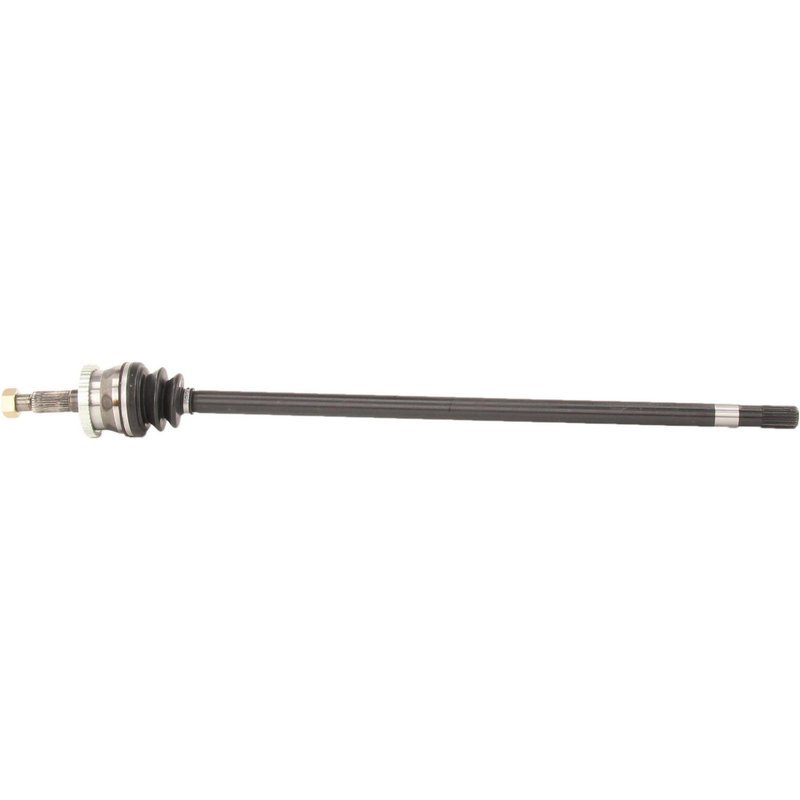

TrakMotive CH-8034 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft CH-8034 for Jeep Grand Cherokee

The TrakMotive CV Axle Shaft CH-8034 is designed specifically for Jeep Grand Cherokee models, providing reliable driveline performance. This new CV axle shaft includes essential components such as a neoprene boot and a standard locking axle nut to ensure durability and proper fitment.

• Compatible with Jeep Grand Cherokee vehicles
• Includes a neoprene boot for enhanced protection
• Equipped with a 48-tooth ABS ring and included tone ring
• Standard hex axle nut (M24*1.5 thread size) included
• Overall compressed length of 40.12 inches (1019 mm)
• 27 splines on both inboard and outboard ends
• Conventional outboard joint and shaft connection style

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering reliable constant velocity components tailored for specific vehicle applications. The CH-8034 model features a conventional outboard joint and a toothed ABS ring designed to integrate seamlessly with the Jeep Grand Cherokee’s driveline system. This product line emphasizes precise fitment and durability through quality materials such as neoprene boots and standard locking axle nuts.

Technical Specifications and Features

The CH-8034 CV axle shaft includes a 48-tooth ABS ring with a toothed design, which is essential for accurate wheel speed sensor readings. The included ABS tone ring ensures compatibility with the vehicle’s anti-lock braking system. The axle nut is a standard locking type with a hex head measuring 1 3/8 inches (34.64 mm) across flats, 5/7 inches (18 mm) in height, and 1 4/7 inches (40 mm) in length, threaded M24*1.5. Both the inboard and outboard splines have 27 teeth, providing secure shaft engagement. The neoprene boot material offers resistance to wear and environmental factors, extending the life of the joint. The overall compressed length of 40.12 inches (1019 mm) matches the Jeep Grand Cherokee’s specifications for proper driveline alignment.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Jeep Grand Cherokee
• Restores proper ABS sensor function with included tone ring
• Eliminates axle vibration caused by spline wear or joint failure
• Prevents grease leakage with durable neoprene boot
• Ensures secure wheel attachment with included standard locking axle nut

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft CH-8034, verify compatibility with your Jeep Grand Cherokee model year and drivetrain configuration. Use proper torque specifications for the M24*1.5 axle nut to ensure secure fastening without damaging threads. Inspect the neoprene boot for any damage during installation and ensure the ABS tone ring is properly aligned with the wheel speed sensor. It is recommended to replace axle nuts with the included new nut to maintain locking integrity.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component built to meet OEM standards for fit and function. TrakMotive products undergo quality control inspections to ensure durability and performance. While specific warranty details are not provided, new parts typically carry manufacturer-backed warranties against defects in materials and workmanship.
