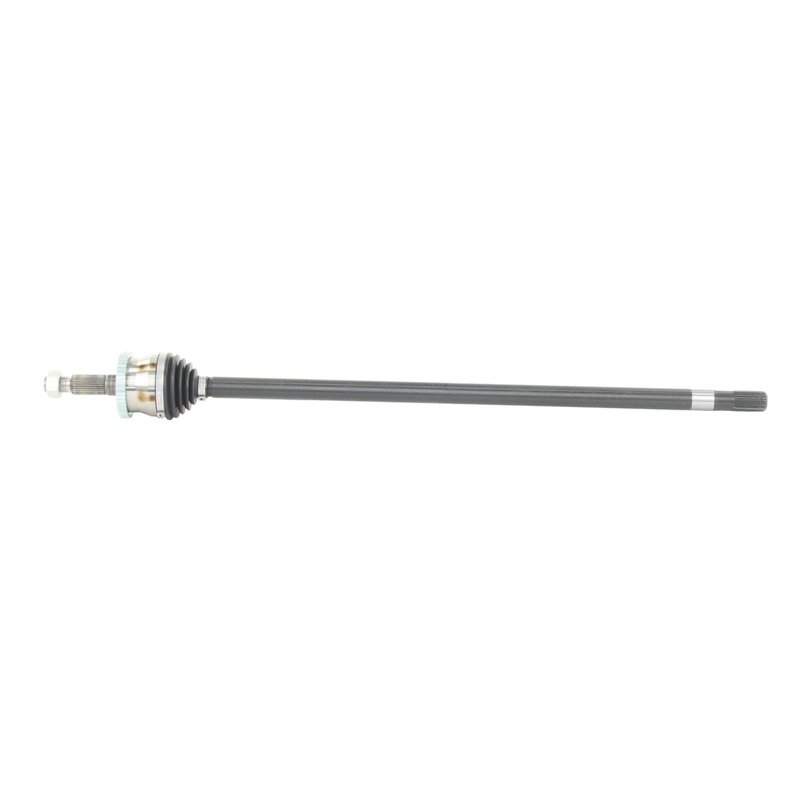

TrakMotive CH-8034HDX CV Axle Shaft - Front Right
| Brand | TrakMotive CH-8034HDX |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 48 |
| ABS Ring Type | Toothed |
| ABS Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .69 |
| Axle Nut Height (mm) | 18 |
| Axle Nut Hex Size (in) | 1.375 |
| Axle Nut Hex Size (mm) | 35 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.56 |
| Axle Nut Length (mm) | 40 |
| Axle Nut Locking Type | Standard |
| Axle Nut Socket Size | 35 |
| Axle Nut Thread Size | M24x1.5 |
| Grade Type | Premium |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 40.125 |
| Overall Compressed Length (mm) | 1019 |
| Product line | Extreme Climate CV Axle Shaft |
| Fits | Jeep · 6 vehicles |
Extreme Climate design. Premium grease and TPE boots help maintain OE performance in extreme temperatures.
OE performance match. Engineered to maintain original performance standards under harsh temperature swings.
Complete axle assembly. Includes a toothed ABS ring and axle nut for a ready-to-install setup.
Cross-references GSP NCV82011 and TrakMotive CH-8034HDX for the same application. See all 2.
Extreme Climate CV Axle for Grand Cherokee
The TrakMotive Extreme Climate CV Axle Shaft CH-8034HDX is built for the front right position on 1999-2004 Jeep Grand Cherokee models. It combines premium 7023B grease with TPE boots to help maintain OE-style driveline performance across extreme temperature swings from -50°C to +50°C.
Key Features
- Fits 1999-2004 Jeep Grand Cherokee, front right
- Extreme Climate CV Axle Shaft from TrakMotive
- Premium 7023B grease formulated for wide temperature operation
- TPE boot material engineered for temperature stability
- Outboard joint uses a conventional design with thermoplastic boot material
- Includes a 35 mm axle nut with M24x1.5 thread size
- ABS tone ring included with 48-tooth toothed ring
- 27 splines at both inboard and outboard connections
- Overall compressed length: 40.125 in. (1019 mm)
Product Details
TrakMotive CH-8034HDX is an Extreme Climate CV Axle Shaft for the front right side of the Jeep Grand Cherokee. The axle is configured with spline-style shaft connections, a conventional outboard joint, and integrated ABS tone ring details for vehicles equipped with the matching sensor setup. This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application.
The Extreme Climate CV Axle Shaft line is built around temperature-resistant materials and lubricant selection. In this application, the premium grease and TPE boot construction are used to help preserve driveline operation in hot and cold conditions while maintaining OE-style fit and function for the Jeep Grand Cherokee platform.
Common Repair Uses
- Front right axle noise or clicking during turns
- Vibration from a worn CV joint or shaft
- Torn or deteriorated axle boot condition
- ABS-related driveline service on equipped vehicles
- Restoring driveline function after axle wear or contamination
Installation Notes
Verify front right fitment before installation on 1999-2004 Jeep Grand Cherokee models. Confirm axle nut thread size, spline count, ABS ring configuration, and compressed length against the original part. This application is not for use with lifted or modified suspensions. Follow factory service procedures and torque specifications during installation.
Quality Assurance
TrakMotive positions the Extreme Climate CV Axle Shaft line around OE-performance materials for demanding temperature conditions. CH-8034HDX is built with premium grease, TPE boots, and integrated ABS tone ring details to support consistent driveline service in the specified application.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2004 | Jeep | Grand Cherokee | AWD | Front Right | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft |
| 2003 | Jeep | Grand Cherokee | AWD | Front Right | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft |
| 2002 | Jeep | Grand Cherokee | AWD | Front Right | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft |
| 2001 | Jeep | Grand Cherokee | AWD | Front Right | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft |
| 2000 | Jeep | Grand Cherokee | AWD | Front Right | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft |
| 1999 | Jeep | Grand Cherokee | AWD | Front Right | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft |
