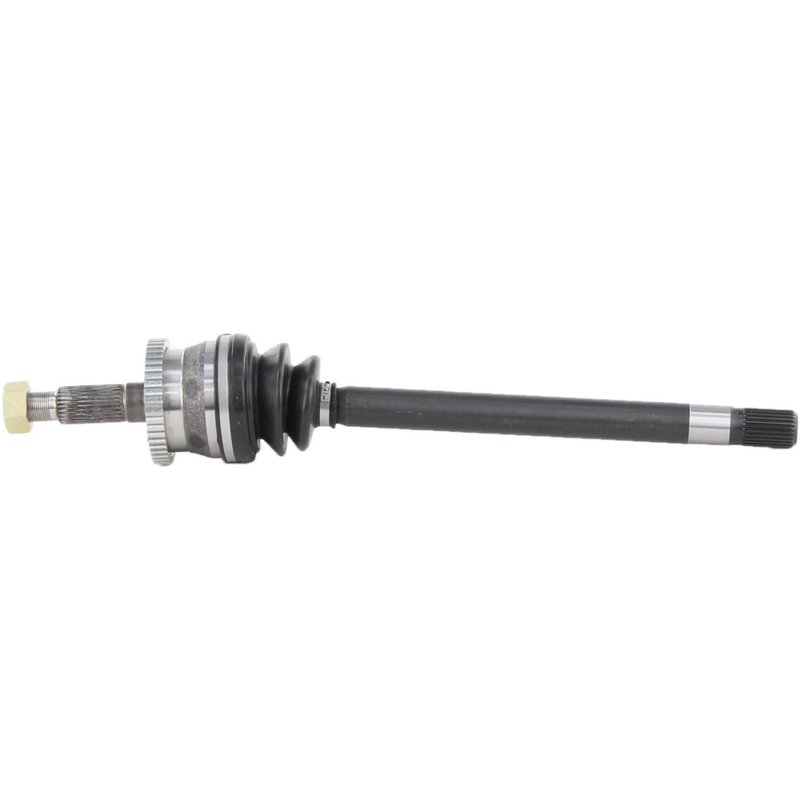

TrakMotive CH-8035 CV Axle Shaft - Front Left
| Brand | TrakMotive CH-8035 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 5/7 |
| Axle Nut Height (mm) | 18 |
| Axle Nut Hex Size (in) | 1 3/8 |
| Axle Nut Hex Size (mm) | 34.64 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 4/7 |
| Axle Nut Length (mm) | 40 |
| Axle Nut Locking Type | Standard |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 23.23 |
| Overall Compressed Length (mm) | 590 |
| Product line | CV Axle Shaft |
| Fits | Jeep · 11 vehicles |
OE-style replacement. New CV axle shaft with conventional joint and shaft connections.
ABS tone ring included. Toothed ring with 48 teeth for ABS-equipped applications.
Neoprene boot material. Flexible construction helps protect the joint from road debris.
Cross-references AMS Automotive 4909, Cardone New 66-3300 and Cardone Reman 60-3300 for the same application. See all 24.
CV Axle Shaft for Jeep Grand Cherokee
TrakMotive CH-8035 is a new CV axle shaft for the front left position on select 1999-2004 Jeep Grand Cherokee models with Quadra-Drive (Full Time, Vari-Lok). It is built for direct replacement service on the Jeep Grand Cherokee front axle application and includes the axle nut and ABS tone ring.
Key Features
- Fits 1999-2004 Jeep Grand Cherokee, front left, Quadra-Drive (Full Time, Vari-Lok)
- New CV axle shaft from TrakMotive
- ABS tone ring included with 48-tooth toothed ring design
- Neoprene boot material for drivetrain service use
- 27 inboard splines and 27 outboard splines
- Overall compressed length: 23.23 in. (590 mm)
- Axle nut included with M24 x 1.5 thread, 34.64 mm hex size
Product Details
This TrakMotive CV axle shaft, part number CH-8035, is specified for the front left side of the Jeep Grand Cherokee in Quadra-Drive (Full Time, Vari-Lok) applications. It is a new axle assembly with conventional outboard joint and conventional shaft connection style, built to match the listed spline count, compressed length, and ABS tone ring requirements for the application. TrakMotive CH-8035 is also referenced by interchange numbers including Cardone New 66-3300 and Cardone Reman 60-3300 for the same fitment.
Common Problems This Part Can Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder from a damaged axle shaft
- Grease leakage from a deteriorated axle boot
- ABS warning concerns related to a damaged tone ring
- Driveline noise caused by spline or joint wear
Installation Notes and Tips
Verify front left fitment before installation by matching the vehicle year, Quadra-Drive configuration, spline count, and axle length. The ABS axle design includes a tone ring and is listed to fit non-ABS applications unless otherwise noted by the vehicle configuration. Confirm axle nut thread size, hex size, and hub interface details during service to ensure proper assembly on the Jeep Grand Cherokee.
Quality Assurance
TrakMotive identifies this axle shaft as a new replacement part from an ISO 9001:1007 and TS 16949:2009 certified company. The CH-8035 is backed by a limited lifetime warranty.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2004 | Jeep | Grand Cherokee | AWD | Front Left | Quadra-Drive (Full Time, Vari-Lok); CV Axle Shaft |
| 2003 | Jeep | Grand Cherokee | AWD | Front Left | Quadra-Drive (Full Time, Vari-Lok); CV Axle Shaft |
| 2003 | Jeep | Grand Cherokee | 4WD | Front Left | Quadra-Drive (Full Time, Vari-Lok); CV Axle Shaft |
| 2002 | Jeep | Grand Cherokee | AWD | Front Left | Quadra-Drive (Full Time, Vari-Lok); CV Axle Shaft |
| 2002 | Jeep | Grand Cherokee | 4WD | Front Left | Quadra-Drive (Full Time, Vari-Lok); CV Axle Shaft |
| 2001 | Jeep | Grand Cherokee | AWD | Front Left | Quadra-Drive (Full Time, Vari-Lok); CV Axle Shaft |
| 2001 | Jeep | Grand Cherokee | 4WD | Front Left | Quadra-Drive (Full Time, Vari-Lok); CV Axle Shaft |
| 2000 | Jeep | Grand Cherokee | AWD | Front Left | Quadra-Drive (Full Time, Vari-Lok); CV Axle Shaft |
| 2000 | Jeep | Grand Cherokee | 4WD | Front Left | Quadra-Drive (Full Time, Vari-Lok); CV Axle Shaft |
| 1999 | Jeep | Grand Cherokee | AWD | Front Left | Quadra-Drive (Full Time, Vari-Lok); CV Axle Shaft |
| 1999 | Jeep | Grand Cherokee | 4WD | Front Left | Quadra-Drive (Full Time, Vari-Lok); CV Axle Shaft |
