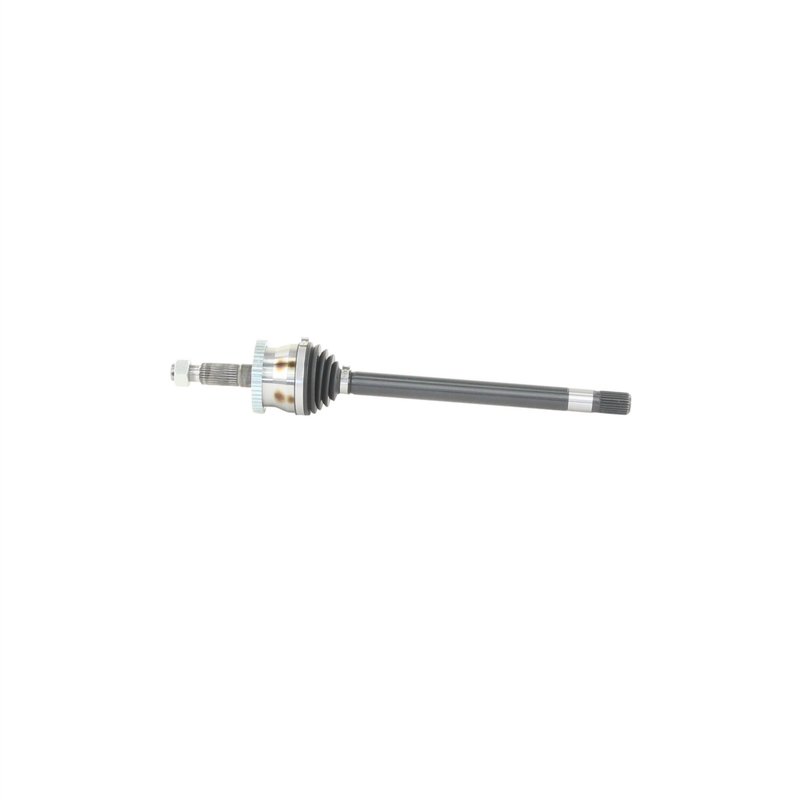

TrakMotive CH-8035HDX CV Axle Shaft - Front Left
| Brand | TrakMotive CH-8035HDX |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 48 |
| ABS Ring Type | Toothed |
| ABS Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .69 |
| Axle Nut Height (mm) | 18 |
| Axle Nut Hex Size (in) | 1.375 |
| Axle Nut Hex Size (mm) | 35 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.56 |
| Axle Nut Length (mm) | 40 |
| Axle Nut Locking Type | Standard |
| Axle Nut Socket Size | 35 |
| Axle Nut Thread Size | M24x1.5 |
| Grade Type | Premium |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 23.25 |
| Overall Compressed Length (mm) | 590 |
| Product line | Extreme Climate CV Axle Shaft |
| Fits | Jeep · 6 vehicles |
Extreme climate design. Premium grease and TPE boots help maintain OE performance in hot and cold conditions.
OE performance. Built to maintain original driveline feel with premium-grade components.
ABS tone ring included. Supports accurate wheel speed signal output for the driveline system.
Cross-references TrakMotive CH-8035HDX and NCV82510 for the same application. See all 2.
Extreme Climate CV Axle for Grand Cherokee
TrakMotive CH-8035HDX is a front left CV axle shaft for 1999-2004 Jeep Grand Cherokee applications. It is built for OE-style driveline service with premium 7023B grease and TPE boots formulated to hold performance in hot and cold conditions.
Key Features
- Fits 1999-2004 Jeep Grand Cherokee, front left
- Extreme Climate CV Axle Shaft line for temperature stability from -50°C to +50°C
- Premium 7023B grease for consistent joint lubrication
- TPE boot material for improved flexibility in demanding climates
- 27-spline inboard and 27-spline outboard shaft connection
- Includes a 48-tooth toothed ABS tone ring
- Includes axle nut with M24x1.5 thread, 35 mm hex size
- Overall compressed length: 23.25 in. (590 mm)
Product Details
The TrakMotive Extreme Climate CV Axle Shaft CH-8035HDX is engineered for Jeep Grand Cherokee front left service where axle durability, ABS signal accuracy, and joint smoothness matter. The toothed ABS ring and included tone ring support proper wheel speed sensor operation, while the premium grease and thermoplastic outboard boot are selected to maintain OE-level function across wide temperature swings. For shoppers searching for a 1999-2004 Jeep Grand Cherokee front left CV axle shaft, CH-8035HDX provides a direct-fit driveline replacement with the correct spline count and compressed length.
This part cross-references NCV82510 for the same application.
Common Problems This Part Can Address
- Clicking or popping from a worn front CV joint
- Vibration during acceleration from a damaged axle shaft
- ABS warning light caused by a failed tone ring or sensor signal issue
- Torn CV boot that has allowed grease loss and contamination
- Driveline noise from excessive joint wear on the front left side
Installation Notes and Tips
Verify axle length, spline count, and ABS ring configuration before installation. This axle is listed for 1999-2004 Jeep Grand Cherokee, front left, and is not for use with lifted or modified suspensions. Inspect the hub, seals, and mounting points during replacement, and torque the axle nut to the vehicle manufacturer’s specification using the included 35 mm hex hardware.
Quality Assurance
TrakMotive’s Extreme Climate CV Axle line uses premium grease and temperature-resistant boot materials to maintain OE performance in demanding environments. CH-8035HDX is built as a premium driveline replacement for consistent operation in extreme heat and cold.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2004 | Jeep | Grand Cherokee | AWD | Front Left | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft |
| 2003 | Jeep | Grand Cherokee | AWD | Front Left | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft |
| 2002 | Jeep | Grand Cherokee | AWD | Front Left | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft |
| 2001 | Jeep | Grand Cherokee | AWD | Front Left | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft |
| 2000 | Jeep | Grand Cherokee | AWD | Front Left | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft |
| 1999 | Jeep | Grand Cherokee | AWD | Front Left | Not For Use With Lifted or Modified Suspensions; Extreme Climate CV Axle Shaft |
