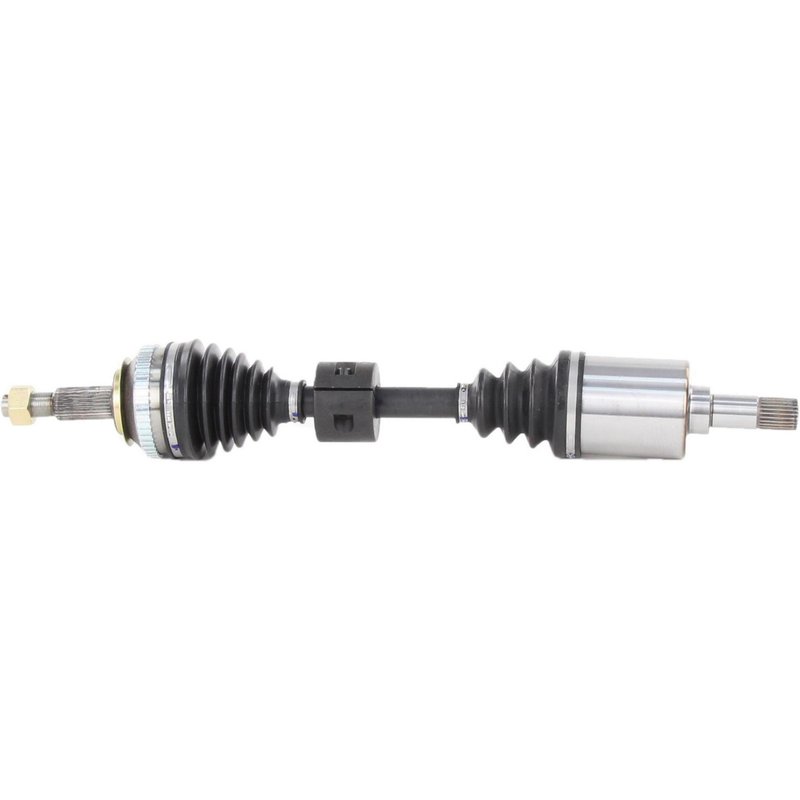

TrakMotive CH-8036 CV Axle Shaft - Front Left or Front Right

Overview of TrakMotive CV Axle Shaft CH-8036

The TrakMotive CV Axle Shaft CH-8036 is engineered for reliable driveline performance in Chrysler, Dodge, and Plymouth vehicles. Designed specifically for models like the Caravan, Grand Caravan, Grand Voyager, Town & Country, and Voyager, this new CV axle shaft ensures precise fitment and durability.

• Compatible with Chrysler, Dodge, Plymouth Caravan, Grand Caravan, Grand Voyager, Town & Country, and Voyager
• Includes a neoprene boot for enhanced protection against contaminants
• Equipped with a 47-tooth ABS ring and a toothed ABS tone ring included
• Features a hex head axle nut with cotter pin locking for secure installation
• Overall compressed length of 24.06 inches (611 mm) for exact fit
• New, not remanufactured, ensuring original equipment quality

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components tailored to specific vehicle applications. This CV axle shaft model CH-8036 is part of that line, offering a balance of durability and fitment accuracy. The inclusion of a toothed ABS ring and neoprene boot reflects the line’s attention to maintaining vehicle safety systems and protecting joint components from wear.

Technical Specifications and Features

This CV axle shaft features a 47-tooth ABS ring with a toothed design, which is essential for accurate wheel speed sensor readings. The axle nut is a hex head type measuring 1 1/4 inches (31.6 mm) across flats, with a height of 5/7 inches (17.8 mm) and a length of 2 1/7 inches (54.7 mm). It uses an M22 x 1.5 thread size and locks securely with a cotter pin to prevent loosening. The inboard joint is a male type with 25 splines, while the outboard joint is conventional with 26 splines. The neoprene boot material provides resistance to environmental factors, extending the life of the joint. The overall compressed length of 24.06 inches (611 mm) ensures proper fitment in the specified vehicle models.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts in Chrysler Caravan and Dodge Grand Caravan
• Restores proper ABS sensor function with included toothed ABS tone ring
• Eliminates axle vibration and noise caused by joint wear or boot failure
• Prevents grease leakage and contamination with durable neoprene boot
• Secures wheel hub connection with included hex axle nut and cotter pin locking

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft CH-8036, ensure the cotter pin is properly engaged to secure the axle nut. Use the specified 1 1/4 inch hex socket for the axle nut and a 1/4 inch Allen wrench for the inboard bolt. Verify the ABS tone ring is correctly positioned to maintain accurate sensor readings. It is recommended to inspect the surrounding suspension components during installation for any additional wear.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component manufactured to meet OEM specifications. The use of high-quality neoprene for the boot and precision-machined splines ensures durability and reliable performance. While specific warranty details are not provided, TrakMotive products typically adhere to industry standards for quality and reliability.
