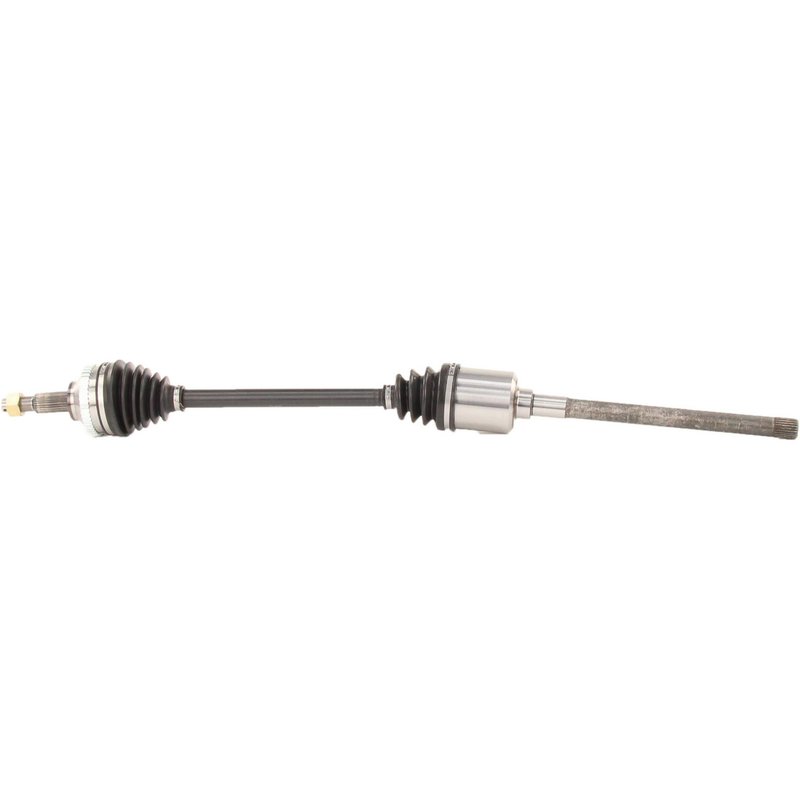

TrakMotive CH-8040 CV Axle Shaft - Front Right
| Brand | TrakMotive CH-8040 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 47 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 5/7 |
| Axle Nut Height (mm) | 17.8 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.6 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 2 1/7 |
| Axle Nut Length (mm) | 54.7 |
| Axle Nut Locking Type | Cotter Pin |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 41.26 |
| Overall Compressed Length (mm) | 1048 |
| Product line | CV Axle Shaft |
| Fits | Chrysler, Dodge, and Plymouth · 21 vehicles |
New unit. Freshly manufactured for dependable driveline service.
Neoprene boot. Helps resist wear while keeping the joint protected.
ABS tone ring included. Built with a toothed ring for ABS-equipped applications.
Cross-references Cardone New 66-3107, Cardone Reman 60-3070 and Cardone Reman 60-3107 for the same application. See all 19.
TrakMotive CH-8040 CV Axle Shaft
The TrakMotive CH-8040 is a new CV axle shaft for front right applications on select Chrysler, Dodge, and Plymouth minivans. It is built with a neoprene boot, a toothed ABS tone ring, and the correct spline and joint configuration for direct replacement service.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: CH-8040
- New axle shaft for front right driveline service
- ABS tone ring included with 47-tooth toothed ring
- Neoprene boot material
- Male inboard joint with conventional outboard joint
- 25 inboard splines and 26 outboard splines
- Axle nut included with M22 x 1.5 thread, 31.6 mm hex size, and cotter pin locking type
- Overall compressed length: 41.26 in. (1048 mm)
Product Details
TrakMotive positions the CH-8040 as a direct-fit CV axle shaft for front right use on 1991-1995 Dodge Caravan, 1991-1995 Dodge Grand Caravan, 1991-1995 Plymouth Grand Voyager, 1991-1994 Plymouth Voyager, and 1992-1995 Chrysler Town & Country. This part number, CH-8040, is built as a new replacement axle and is specified with ABS hardware that can be used in non-ABS applications unless otherwise noted. TrakMotive also notes ISO 9001:1007 and TS 16949:2009 certified company standards in its manufacturing background.
This part cross-references Cardone New 66-3107 for the same application.
Common Replacement Reasons
- Clicking or popping during turns from worn CV joints
- Vibration under acceleration from axle wear or imbalance
- Grease leakage from a damaged boot
- ABS warning concerns related to a failed tone ring or sensor input
- Driveline noise from a worn front right axle assembly
Installation Notes
Verify spline count, axle length, and axle nut thread size before installation. Confirm front right fitment on the vehicle and check ABS configuration, since the included tone ring is specified for ABS-style applications and may also fit non-ABS applications unless otherwise noted. Inspect seals, hub condition, and related suspension components during replacement to help ensure proper operation.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The brand also references ISO 9001:1007 and TS 16949:2009 certified company standards for manufacturing control.
| Year | Make | Model | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 1995 | Chrysler | Town & Country | AWD | — | — | — | Front Right | CV Axle Shaft |
| 1995 | Dodge | Grand Caravan | AWD | — | — | — | Front Right | CV Axle Shaft |
| 1995 | Plymouth | Grand Voyager | AWD | — | — | — | Front Right | CV Axle Shaft |
| 1994 | Chrysler | Town & Country | AWD | — | — | — | Front Right | CV Axle Shaft |
| 1994 | Dodge | Caravan | AWD | — | — | — | Front Right | CV Axle Shaft |
| 1994 | Dodge | Grand Caravan | AWD | — | — | — | Front Right | CV Axle Shaft |
| 1994 | Plymouth | Grand Voyager | AWD | — | — | — | Front Right | CV Axle Shaft |
| 1993 | Chrysler | Town & Country | AWD | — | — | — | Front Right | CV Axle Shaft |
| 1993 | Dodge | Caravan | AWD | — | — | — | Front Right | CV Axle Shaft |
| 1993 | Dodge | Grand Caravan | AWD | — | — | — | Front Right | CV Axle Shaft |
| 1993 | Plymouth | Grand Voyager | AWD | — | 3.3L | V6 | Front Right | CV Axle Shaft |
| 1993 | Plymouth | Voyager | AWD | Automatic | 2.5L | L4 | Front Right | CV Axle Shaft |
| 1992 | Chrysler | Town & Country | AWD | — | — | — | Front Right | CV Axle Shaft |
| 1992 | Dodge | Caravan | AWD | — | — | — | Front Right | CV Axle Shaft |
| 1992 | Dodge | Grand Caravan | AWD | — | — | — | Front Right | CV Axle Shaft |
| 1992 | Plymouth | Grand Voyager | AWD | — | — | — | Front Right | CV Axle Shaft |
| 1992 | Plymouth | Voyager | AWD | — | — | — | Front Right | CV Axle Shaft |
| 1991 | Dodge | Caravan | AWD | — | — | — | Front Right | CV Axle Shaft |
| 1991 | Dodge | Grand Caravan | AWD | — | — | — | Front Right | CV Axle Shaft |
| 1991 | Plymouth | Grand Voyager | AWD | — | — | — | Front Right | CV Axle Shaft |
| 1991 | Plymouth | Voyager | AWD | — | — | — | Front Right | CV Axle Shaft |
