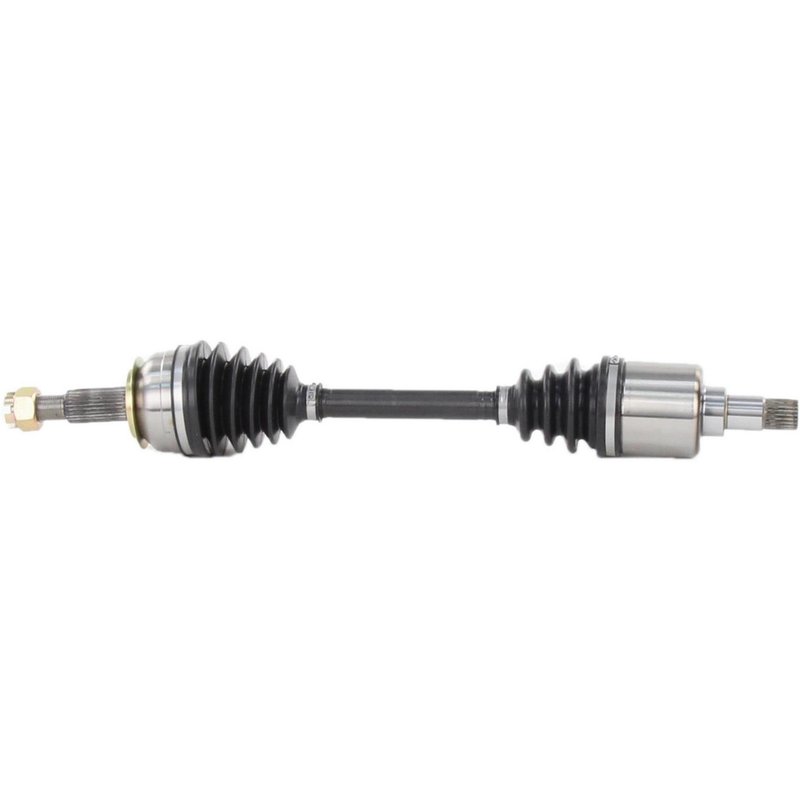

TrakMotive CH-8042 CV Axle Shaft - Front Left or Front Right
| Brand | TrakMotive CH-8042 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 26 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Cotter Pin |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 23 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 24.76 |
| Overall Compressed Length (mm) | 629 |
| Product line | CV Axle Shaft |
| Fits | Dodge, Plymouth, and Chrysler · 21 vehicles |
New replacement shaft. Built as a fresh CV axle shaft for straightforward service.
Neoprene boot material. Helps resist wear while keeping the joint protected.
Axle nut included. Cotter-pin locking type simplifies installation prep.
Cross-references Cardone Reman 60-3018, Cardone Reman 60-3033 and TrakMotive CH-8042 for the same application. See all 20.
CV Axle Shaft for Chrysler and Dodge Applications
TrakMotive CH-8042 is a new CV axle shaft built for front left and front right applications on select Chrysler, Dodge, and Plymouth vehicles from 1981-1987. It is specified with a neoprene boot, a male inboard connection, and a conventional outboard joint for direct driveline service on listed vehicles.
- New CV axle shaft for driveline and axle repair
- Fits front left and front right positions on listed applications
- Neoprene boot material for joint protection
- Male inboard shaft connection with conventional outboard shaft connection
- Includes axle nut with cotter pin locking type
- Axle nut thread size: M22 x 1.5
- Overall compressed length: 24.76 in. (629 mm)
- Inboard splines: 23; outboard splines: 26
- No ABS tone ring included
Product Details
The TrakMotive CV Axle Shaft line focuses on replacement driveline components for vehicles that need accurate fit and dependable geometry. Part number CH-8042 is engineered for the listed Chrysler, Dodge, and Plymouth fitments, including Dodge Charger, Dodge Rampage, Plymouth Turismo, Plymouth TC3, Chrysler New Yorker, Chrysler Town & Country, Chrysler Aries, and Plymouth Reliant applications. This part cross-references Cardone Reman 60-3018 and 60-3033 for the same application.
Use CH-8042 when replacing a worn or damaged front axle assembly on 1981-1987 Dodge Charger, 1984-1987 Plymouth Turismo, 1984 Dodge Rampage, 1983 Chrysler New Yorker, 1983 Chrysler Town & Country, 1983 Dodge Aries, 1983 Plymouth Reliant, and 1981-1982 Plymouth TC3 applications. It also fits 1983-1987 Dodge Charger and 1983-1987 Dodge Rampage front left applications, with front right coverage on select 1985-1987 Dodge Charger models.
What It Helps Fix
- Clicking or popping from a worn CV joint
- Vibration during acceleration from axle wear
- Grease leakage from a damaged boot
- Noise caused by spline or joint wear
- Loss of driveline smoothness on front-wheel-drive vehicles
Installation Notes
Verify spline count, axle diameter, and position before installation. Some fitments note comparison to the original axle, and 1983 applications are listed from 5/21/83. The axle nut is included and uses a hex head with cotter pin locking. ABS tone ring is not included, and ABS axles fit non-ABS applications unless otherwise noted by the vehicle listing.
Quality Assurance
TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty and produced by an ISO 9001:1007 and TS 16949:2009 certified company.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 1987 | Dodge | Charger | Manual | — | — | Front Right | Compare spline counts and diameter to original; CV Axle Shaft |
| 1987 | Dodge | Charger | Manual | — | — | Front Left | Compare spline counts and diameter to original; CV Axle Shaft |
| 1987 | Plymouth | Turismo | — | — | — | Front Left | CV Axle Shaft |
| 1986 | Dodge | Charger | — | — | — | Front Right | HP; Compare spline counts and diameter to original; CV Axle Shaft |
| 1986 | Dodge | Charger | — | — | — | Front Left | Compare spline counts and diameter to original; CV Axle Shaft |
| 1986 | Plymouth | Turismo | — | — | — | Front Left | CV Axle Shaft |
| 1985 | Dodge | Charger | — | — | — | Front Right | HP; Compare spline counts and diameter to original; CV Axle Shaft |
| 1985 | Dodge | Charger | — | — | — | Front Left | Compare spline counts and diameter to original; CV Axle Shaft |
| 1985 | Plymouth | Turismo | — | — | — | Front Left | CV Axle Shaft |
| 1984 | Dodge | Charger | — | — | — | Front Left | Compare spline counts and diameter to original; CV Axle Shaft |
| 1984 | Dodge | Rampage | — | — | — | Front Left | CV Axle Shaft |
| 1984 | Plymouth | Turismo | — | — | — | Front Left | CV Axle Shaft |
| 1983 | Chrysler | New Yorker | — | — | — | Front Left | From 5/21/83; CV Axle Shaft |
| 1983 | Chrysler | Town & Country | — | — | — | Front Left | From 5/21/83; CV Axle Shaft |
| 1983 | Dodge | Aries | — | — | — | Front Left | From 5/21/83; CV Axle Shaft |
| 1983 | Dodge | Charger | Manual | — | — | Front Left | From 5/21/83; Compare spline counts and diameter to original; CV Axle Shaft |
| 1983 | Dodge | Rampage | — | — | — | Front Left | From 5/21/83; CV Axle Shaft |
| 1983 | Plymouth | Reliant | — | — | — | Front Left | From 5/21/83; CV Axle Shaft |
| 1983 | Plymouth | Turismo | Manual | — | — | Front Left | From 5/21/83; CV Axle Shaft |
| 1982 | Plymouth | TC3 | Manual | 1.7L | L4 | Front Left | CV Axle Shaft |
| 1981 | Plymouth | TC3 | Manual | 1.7L | L4 | Front Left | CV Axle Shaft |
