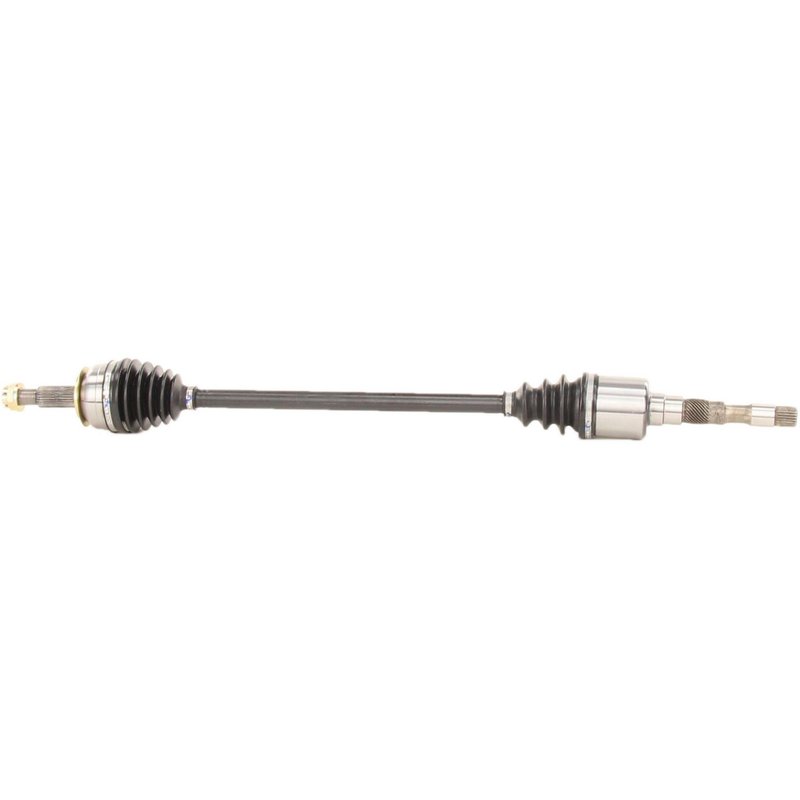

TrakMotive CH-8043 CV Axle Shaft - Front Right
| Brand | TrakMotive CH-8043 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 5/6 |
| Axle Nut Height (mm) | 21 |
| Axle Nut Hex Size (in) | 1 1/6 |
| Axle Nut Hex Size (mm) | 30 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.6 |
| Axle Nut Locking Type | Cotter Pin |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 23 |
| Number Of Outboard Splines | 26 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 38.11 |
| Overall Compressed Length (mm) | 968 |
| Product line | CV Axle Shaft |
| Fits | Dodge and Plymouth · 13 vehicles |
OE direct replacement. New CV axle shaft with included axle nut for straightforward service.
Neoprene boot material. Helps resist wear while keeping the joint protected.
ISO certified manufacturing. Built by a company certified to ISO 9001 and TS 16949 standards.
Cross-references BBB Industries 8220, Cardone New 66-3019 and Cardone Reman 60-3019 for the same application. See all 13.
TrakMotive CV Axle Shaft CH-8043
TrakMotive CH-8043 is a new CV axle shaft for front right applications on select Dodge and Plymouth vehicles. It is built with a neoprene boot, a male inboard connection, and a conventional outboard joint for direct driveline replacement service.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: CH-8043
- New axle shaft with 38.11 in. overall compressed length
- Neoprene boot material for driveline protection
- Male inboard shaft connection style
- Conventional outboard joint type and shaft connection style
- 23 inboard splines and 26 outboard splines
- Includes axle nut with M22 x 1.5 thread, 30 mm hex size, and cotter pin locking type
- No ABS tone ring included
- Fits non-ABS applications unless otherwise noted
Product Details
This TrakMotive CV axle shaft is engineered for front right replacement use on 1983-1987 Dodge Charger, 1983-1987 Plymouth Turismo, 1983-1984 Dodge Rampage, and 1983 Plymouth Reliant applications listed in the fitment data. Use CH-8043 when replacing a worn or noisy axle on these vehicles and verify spline count, diameter, and application notes before installation. This part cross-references Cardone New 66-3019 for the same application.
What This Part Helps Address
- Clicking or popping during turns from worn CV joints
- Vibration or shudder from a damaged axle shaft
- Grease leakage from a deteriorated boot
- Axle play caused by spline or joint wear
- Front right driveline noise on listed Dodge and Plymouth models
Installation Notes
Confirm front right position, spline counts, and axle diameter against the original part before installation. Verify the axle nut thread size, hex size, and locking style match the vehicle requirements. Because ABS tone ring is not included, compare the vehicle’s ABS configuration and follow the fitment notes for non-ABS use where applicable.
Quality Assurance
TrakMotive identifies this axle shaft as a new replacement part and backs it with a limited lifetime warranty. The manufacturer also states ISO 9001:1007 and TS 16949:2009 certified company quality systems.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 1987 | Dodge | Charger | Manual | — | — | Front Right | Compare spline counts and diameter to original; CV Axle Shaft |
| 1987 | Plymouth | Turismo | — | — | — | Front Right | CV Axle Shaft |
| 1986 | Dodge | Charger | — | — | — | Front Right | Exc. Hp; Compare spline counts and diameter to original; CV Axle Shaft |
| 1986 | Plymouth | Turismo | — | — | — | Front Right | CV Axle Shaft |
| 1985 | Dodge | Charger | — | — | — | Front Right | Exc. Hp; Compare spline counts and diameter to original; CV Axle Shaft |
| 1985 | Plymouth | Turismo | — | — | — | Front Right | CV Axle Shaft |
| 1984 | Dodge | Charger | — | — | — | Front Right | Compare spline counts and diameter to original; CV Axle Shaft |
| 1984 | Dodge | Rampage | — | — | — | Front Right | Exc. Hp; CV Axle Shaft |
| 1984 | Plymouth | Turismo | — | — | — | Front Right | CV Axle Shaft |
| 1983 | Dodge | Charger | — | — | — | Front Right | Compare spline counts and diameter to original; CV Axle Shaft |
| 1983 | Dodge | Rampage | — | — | — | Front Right | Exc. Hp; CV Axle Shaft |
| 1983 | Plymouth | Reliant | — | 2.6L | L4 | Front Right | From 5/21/83; CV Axle Shaft |
| 1983 | Plymouth | Turismo | — | — | — | Front Right | CV Axle Shaft |
