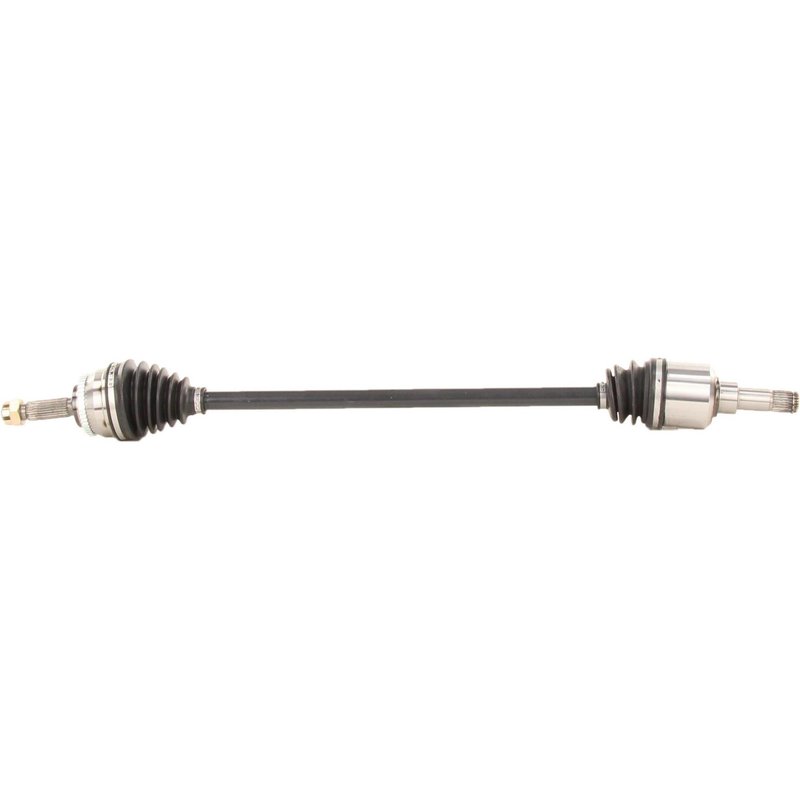

TrakMotive CH-8051 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft CH-8051

The TrakMotive CV Axle Shaft CH-8051 is engineered for reliable driveline performance in select Chrysler, Dodge, and Mitsubishi vehicles. Designed to meet OEM specifications, this new axle shaft ensures consistent power transfer and durability for models like the Dodge Avenger, Mitsubishi Eclipse, and Chrysler Sebring.

• Compatible with Chrysler, Dodge, and Mitsubishi vehicles including Avenger, Eclipse, and Sebring
• Includes a neoprene boot for enhanced durability and protection
• Equipped with a 43-tooth ABS ring and toothed ABS tone ring included
• Features a hex axle nut with cotter pin locking for secure installation
• Overall compressed length of 38.35 inches (974 mm) for precise fitment

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering dependable CV components designed to restore driveline integrity. This line emphasizes quality materials such as neoprene boots and includes essential hardware like axle nuts with cotter pin locking mechanisms. The CH-8051 model exemplifies this approach by combining robust construction with precise fitment for specific vehicle applications.

Technical Specifications and Features

The CH-8051 CV Axle Shaft features a male inboard joint type with 25 splines on both inboard and outboard shafts, ensuring a secure connection and smooth power transfer. The outboard joint uses a conventional style, compatible with the specified vehicle models. The included ABS tone ring has 43 teeth and a toothed design, which integrates with the vehicle's ABS system for accurate wheel speed monitoring. The axle nut is a hex type measuring 1 1/4 inches (32 mm) across flats, 1 1/2 inches (37 mm) in length, and 22 mm in height, with an M22x1.5 thread size and cotter pin locking for added safety.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts in Chrysler Avenger, Dodge Eclipse, and Chrysler Sebring
• Restores proper ABS sensor function with included toothed ABS tone ring
• Eliminates axle vibration and noise caused by joint wear or boot failure
• Prevents grease leakage and contamination with durable neoprene boot
• Secures wheel hub connection with included axle nut and cotter pin locking

Installation Notes and Tips

• Verify vehicle compatibility with Chrysler Avenger, Dodge Eclipse, or Chrysler Sebring before installation
• Ensure the cotter pin is properly installed to secure the axle nut and prevent loosening
• Inspect the axle shaft splines for proper engagement during installation
• Check ABS tone ring alignment to maintain accurate sensor readings
• Use appropriate torque specifications for axle nut tightening as per vehicle manufacturer guidelines

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft CH-8051 is a new, not remanufactured, component built to meet or exceed OEM standards. It includes a neoprene boot for enhanced durability and comes with the necessary hardware for secure installation. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliable performance in compatible Chrysler, Dodge, and Mitsubishi vehicles.
