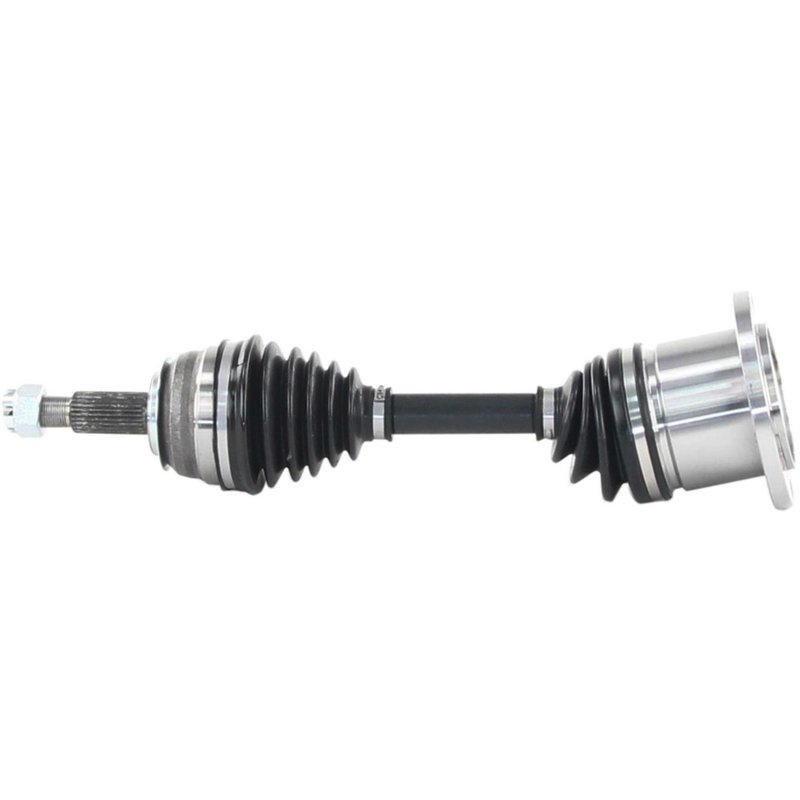

TrakMotive CH-8060 CV Axle Shaft - Front Left or Front Right

Overview of TrakMotive CV Axle Shaft CH-8060 for Dodge Dakota

The TrakMotive CV Axle Shaft CH-8060 is designed specifically for Dodge Dakota models, providing reliable driveline performance. This new CV axle shaft is engineered to meet OEM specifications, ensuring proper fit and function for your vehicle.

• Compatible with Dodge Dakota vehicles
• New, not remanufactured, for consistent quality
• Includes axle nut with cotter pin locking mechanism
• Neoprene boot material for durability and protection
• Overall compressed length of 18.74 inches (476 mm)
• Inboard flange joint and conventional outboard joint types
• Axle nut hex size 1 1/4 inch (31.8 mm) with 1 inch (26 mm) height
• Thread size M22*1.5 for secure installation
• 26 outboard splines for proper shaft engagement

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering dependable CV components designed to restore driveline integrity. This line emphasizes precise fitment and durable materials, such as neoprene boots and flange-style inboard joints, to maintain vehicle performance and reduce maintenance needs. The CH-8060 model exemplifies these qualities with its robust construction and inclusion of necessary hardware like the axle nut with cotter pin locking.

Technical Description and Specifications

The CH-8060 CV axle shaft features a flange-type inboard joint and a conventional outboard joint, ensuring compatibility with the Dodge Dakota's driveline system. The neoprene boot material offers resistance to wear and environmental factors, protecting the joint from contaminants. The axle nut included is a hex head type measuring 1 1/4 inches across flats and 1 inch in height, with a thread size of M22*1.5, secured by a cotter pin locking mechanism to prevent loosening during operation. The shaft has 26 outboard splines, providing a secure connection to the hub assembly. Its overall compressed length is 18.74 inches (476 mm), matching OEM dimensions for proper installation.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Dodge Dakota
• Eliminates clicking or popping noises during turns caused by joint wear
• Resolves vibration issues related to axle imbalance or joint failure
• Prevents grease leaks by restoring boot integrity with durable neoprene material
• Addresses axle nut loosening with included cotter pin locking hardware

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft CH-8060 on a Dodge Dakota, ensure the axle nut is torqued to manufacturer specifications and secured with the included cotter pin to maintain safety. Inspect the axle shaft splines and hub for wear before installation to guarantee proper fit. The neoprene boot should be checked for any damage during installation to maintain joint protection. Proper alignment of the flange and conventional joints is critical for smooth driveline operation.

Quality Assurance and Warranty Information

This CV axle shaft is a new component manufactured to meet or exceed OEM standards for fit and function. TrakMotive provides quality assurance through rigorous testing and material selection. While specific warranty details are not provided here, new parts typically come with a limited warranty covering defects in materials and workmanship. Always verify warranty terms with the supplier or manufacturer.
