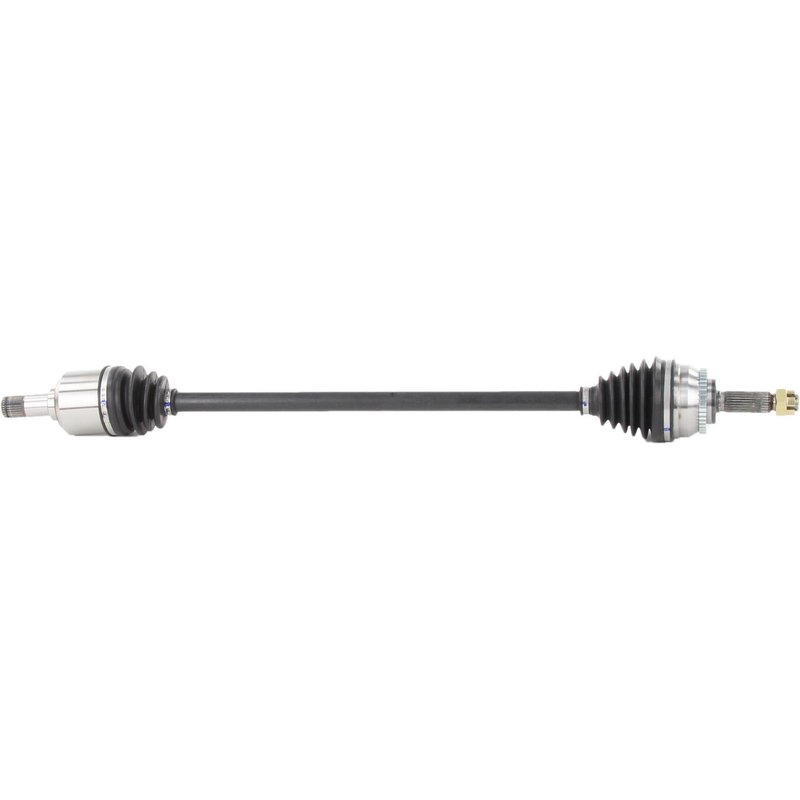

TrakMotive CH-8061 CV Axle Shaft - Front Right

Overview of the TrakMotive CV Axle Shaft CH-8061

The TrakMotive CV Axle Shaft CH-8061 is engineered for reliable driveline performance in select Chrysler, Dodge, and Mitsubishi vehicles. Designed to meet OEM specifications, this new CV axle shaft ensures proper fit and function for models like the Eclipse, Galant, Sebring, and Stratus.

• Includes a toothed ABS tone ring with 43 teeth for accurate wheel speed sensor readings
• Equipped with a neoprene boot for enhanced durability and protection against contaminants
• Comes with a hex head axle nut featuring a cotter pin locking mechanism for secure installation
• Inboard joint type is male with 27 splines; outboard joint is conventional with 25 splines
• Overall compressed length of 37.68 inches (957 mm) for precise fitment

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle components designed to restore driveline integrity. This line emphasizes compatibility with specific vehicle makes and models, ensuring that each CV axle shaft like the CH-8061 meets exacting standards for fit, function, and durability.

Technical Specifications and Features

The CH-8061 CV axle shaft features a 43-tooth ABS ring that is toothed and included with the assembly, supporting accurate ABS sensor operation. The axle nut is a 32 mm (1 1/4 inch) hex head type, 22 mm (6/7 inch) in height, and 37 mm (1 1/2 inch) in length, secured with a cotter pin locking system to prevent loosening during operation. The neoprene boot material provides resistance to wear and environmental damage, extending the service life of the axle. The inboard shaft connection is male with 27 splines, while the outboard connection is conventional with 25 splines, ensuring proper engagement and torque transfer.

Compatible Vehicles and Common Applications

• Replacement for worn or damaged CV axle shafts on Chrysler Sebring models
• Suitable for Dodge Stratus vehicles requiring a new driveline component
• Compatible with Mitsubishi Eclipse and Galant models needing CV axle shaft repair
• Addresses issues such as axle vibration, clicking noises during turns, and grease leakage
• Restores proper ABS sensor function with included tone ring

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft CH-8061, ensure the cotter pin locking axle nut is properly secured to prevent loosening. Verify the correct orientation of the neoprene boot to avoid premature wear. Use appropriate torque specifications for the axle nut and inspect the ABS tone ring for damage during installation. This part is designed for direct replacement on compatible Chrysler, Dodge, and Mitsubishi models, facilitating a straightforward installation process.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft CH-8061 is a new component manufactured to meet or exceed OEM standards. It includes a high-quality ABS tone ring and durable neoprene boot to ensure long-term reliability. While specific warranty details are not provided, TrakMotive products typically undergo rigorous quality control to maintain consistent performance in driveline applications.
