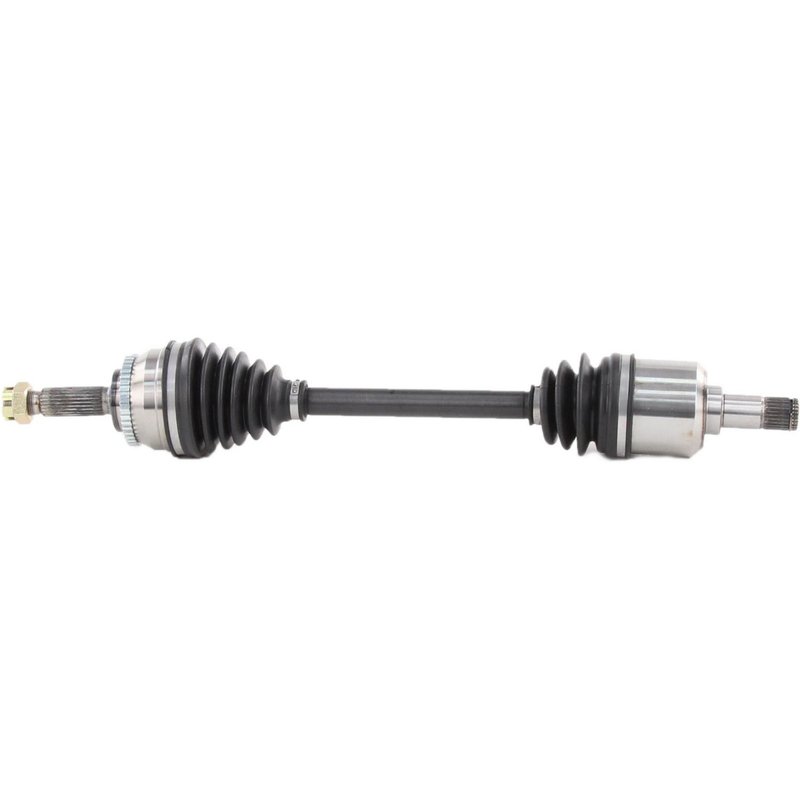

TrakMotive CH-8063 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft CH-8063

The TrakMotive CV Axle Shaft CH-8063 is engineered for reliable driveline performance in select Chrysler, Dodge, and Mitsubishi vehicles. Designed to meet OEM specifications, this new axle shaft ensures proper fit and function for models like the Eclipse, Galant, Sebring, and Stratus.

• Compatible with Chrysler, Dodge, Mitsubishi Eclipse, Galant, Sebring, and Stratus
• Includes a neoprene boot for durability and protection
• Equipped with a 43-tooth ABS ring and included tone ring
• Hex axle nut with cotter pin locking mechanism included
• Overall compressed length of 25.71 inches (653 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components that maintain vehicle stability and smooth power transfer. This CV Axle Shaft is part of that line, featuring a conventional outboard joint and a male inboard joint connection style, designed to fit specific vehicle applications accurately. The inclusion of a toothed ABS ring and tone ring supports proper ABS sensor function, critical for vehicle safety systems.

Technical Specifications and Features

This CV Axle Shaft (part number CH-8063) includes a neoprene boot material that resists wear and environmental damage. The axle nut is a hex type with a 1 1/4 inch (32 mm) hex size, 1 1/2 inch (37 mm) length, and 6/7 inch (22 mm) height, secured with a cotter pin locking type to ensure safe installation. The shaft features 27 inboard splines and 25 outboard splines, with a male inboard joint and conventional outboard joint connection style. The ABS ring has 43 teeth and is toothed, with the tone ring included for ABS sensor compatibility.

Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts in Chrysler, Dodge, and Mitsubishi vehicles
• Restores proper ABS sensor function with included toothed ABS ring and tone ring
• Eliminates axle vibration and noise caused by joint wear or boot failure
• Prevents grease leakage and contamination with durable neoprene boot
• Ensures secure wheel attachment with included axle nut and cotter pin locking

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft CH-8063, verify compatibility with your vehicle’s make and model, specifically Chrysler, Dodge, or Mitsubishi Eclipse, Galant, Sebring, or Stratus. Use the included hex axle nut and cotter pin to secure the shaft properly. Inspect the neoprene boot for any damage during installation to maintain joint protection. Proper torque specifications should be followed to avoid premature wear or failure.

Quality Assurance and Warranty

This CV Axle Shaft is a new, not remanufactured, component designed to meet or exceed OEM standards. TrakMotive ensures quality through precise manufacturing and material selection, including durable neoprene boots and robust joint construction. Warranty details should be confirmed with the distributor or manufacturer, as coverage may vary.
