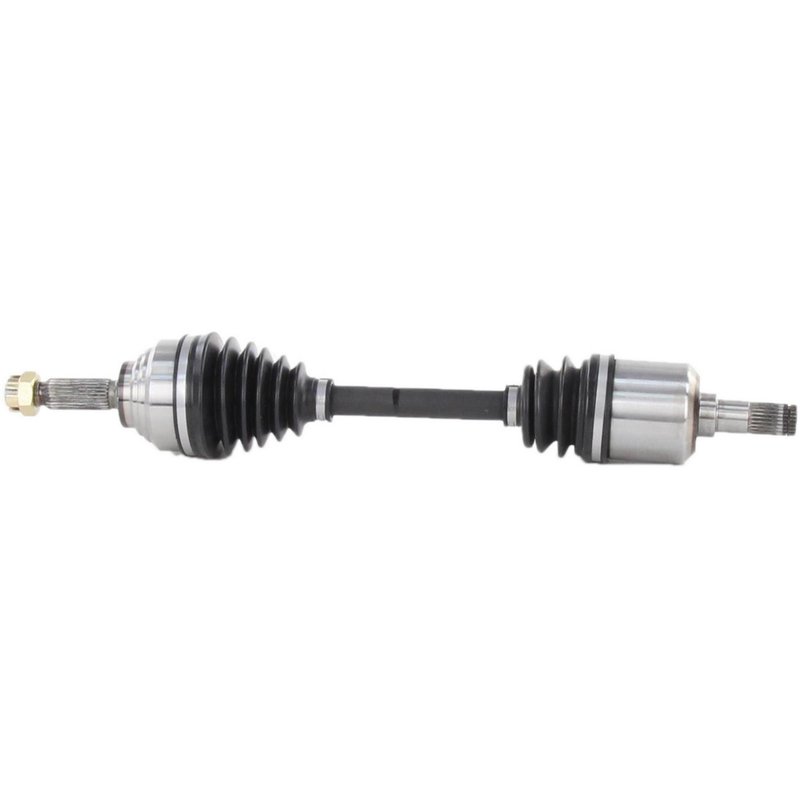

TrakMotive CH-8064 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft CH-8064

The TrakMotive CV Axle Shaft CH-8064 is designed specifically for Mitsubishi Expo and Expo LRV models. This new CV axle shaft provides reliable driveline performance with precise fitment and durable construction to maintain vehicle stability and power transfer.

• Compatible with Mitsubishi Expo and Expo LRV
• Includes axle nut with cotter pin locking type
• Neoprene boot material for enhanced durability
• Hex head axle nut measuring 1 1/4 inch (32 mm)
• Overall compressed length of 24.06 inches (611 mm)
• Male inboard joint and conventional outboard joint types
• 25 splines on both inboard and outboard shafts

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle components engineered for precise fit and function. This line emphasizes compatibility with specific vehicle makes and models, such as the Mitsubishi Expo series, ensuring that each axle shaft meets OEM specifications for joint types, spline counts, and boot materials. The CH-8064 model exemplifies this approach by combining a neoprene boot with a male inboard joint and conventional outboard joint to provide consistent driveline performance.

Technical Description and Specifications

The CH-8064 CV axle shaft features a neoprene boot that offers resistance to wear and environmental factors, helping to protect the internal joints. The inboard joint is a male type with 25 splines, matching the male inboard shaft connection style, while the outboard joint is conventional with 25 splines as well. The included axle nut is a hex head type, measuring 1 1/4 inches (32 mm) across the flats, with a height of 22 mm (6/7 inch) and a length of 37 mm (1 1/2 inch). It uses an M22 x 1.5 thread size and secures with a cotter pin locking mechanism to ensure safe installation. The overall compressed length of the axle shaft is 24.06 inches (611 mm), designed to fit the driveline geometry of Mitsubishi Expo and Expo LRV vehicles.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Mitsubishi Expo and Expo LRV
• Resolves issues related to axle vibration or clicking noises during turns
• Addresses grease leakage caused by torn or degraded CV boots
• Restores driveline stability and smooth power transfer to the wheels
• Prevents axle nut loosening with included cotter pin locking nut

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft CH-8064, ensure the axle nut is torqued to the manufacturer’s specifications and secured with the cotter pin to prevent loosening. Inspect the mating surfaces and splines for damage before installation. The neoprene boot should be checked for proper seating to avoid premature wear. This axle shaft is designed for direct replacement on Mitsubishi Expo and Expo LRV models, so no modifications should be necessary.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component built to meet or exceed OEM standards. TrakMotive provides quality assurance through rigorous manufacturing controls. While specific warranty details are not provided here, new parts typically carry a limited warranty against defects in materials and workmanship. Always verify warranty terms with the supplier or manufacturer.
