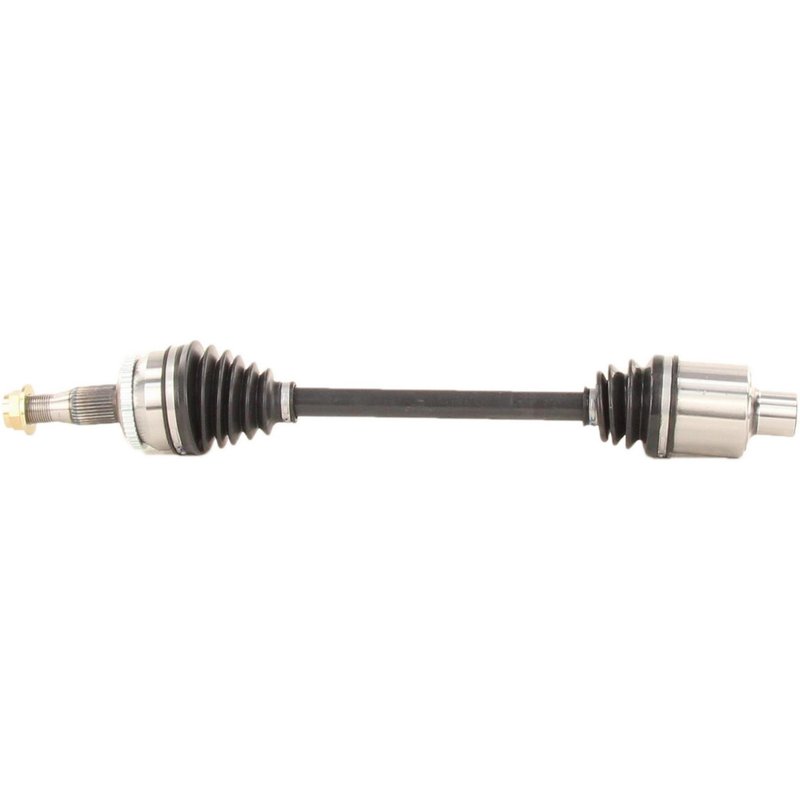

TrakMotive CH-8075 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft CH-8075

The TrakMotive CV Axle Shaft CH-8075 is engineered for Chrysler 300M vehicles requiring reliable driveline components. This new CV axle shaft is designed to maintain optimal performance and durability in demanding driving conditions.

• Compatible with Chrysler 300M models
• Includes a self-locking hex axle nut (M27*2 thread size)
• Neoprene boot material for enhanced joint protection
• 50-tooth ABS ring with a toothed design and included tone ring
• Overall compressed length of 26.81 inches (681 mm)
• Female inboard joint with 27 splines and conventional outboard joint with 33 splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precision-engineered constant velocity components tailored for specific vehicle applications. The CH-8075 model exemplifies this approach by combining robust materials and exact fitment specifications to ensure compatibility and performance for Chrysler 300M driveline systems.

Technical Specifications and Features

This CV axle shaft features a neoprene boot that provides resistance against environmental contaminants and wear. The inboard joint is female type with 27 splines, while the outboard joint is conventional with 33 splines, ensuring proper connection and torque transfer. The included ABS ring has 50 teeth and a toothed design, complete with a tone ring to support ABS sensor functionality. The axle nut is a self-locking hex type, measuring 1 2/7 inches (32.8 mm) across the flats, with a height of 22 mm (6/7 inch) and length of 37.9 mm (1 1/2 inch), designed to secure the axle firmly in place.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Chrysler 300M
• Restores proper ABS sensor operation with included tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage with durable neoprene boot
• Ensures secure wheel attachment with self-locking axle nut

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft CH-8075, verify compatibility with Chrysler 300M model year and drivetrain specifications. Use appropriate torque settings for the M27*2 self-locking axle nut to ensure secure fitment. Inspect the boot and joints for damage during installation and replace any worn components to maintain driveline integrity.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component built to meet OEM standards. TrakMotive ensures quality through precise manufacturing and material selection. Warranty details should be confirmed with the distributor or manufacturer to guarantee coverage for defects or premature failure.
