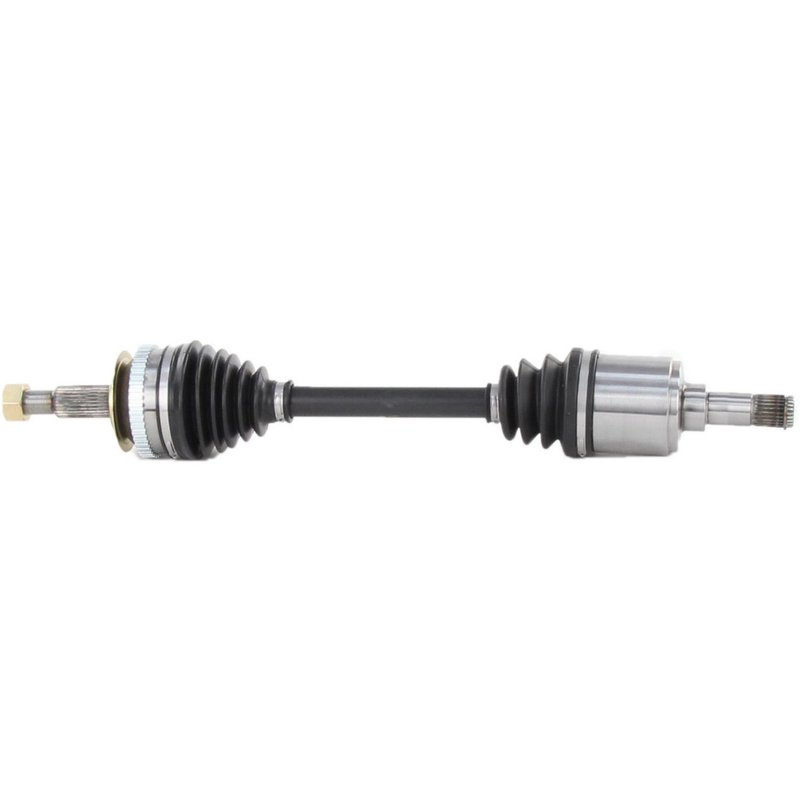

TrakMotive CH-8080 CV Axle Shaft - Front Left

Overview of the TrakMotive CV Axle Shaft CH-8080

The TrakMotive CV Axle Shaft CH-8080 is engineered for reliable driveline performance in Chrysler, Dodge, and Plymouth vehicles. Designed specifically for models like the Caravan, Grand Caravan, Grand Voyager, Town & Country, and Voyager, this new CV axle shaft ensures precise fit and function.

• Compatible with Chrysler, Dodge, Plymouth Caravan, Grand Caravan, Grand Voyager, Town & Country, and Voyager
• Includes a neoprene boot for durability and protection
• Equipped with a 47-tooth ABS ring and included tone ring for accurate ABS sensor readings
• Features a hex axle nut with cotter pin locking for secure installation
• Overall compressed length of 25.12 inches (638 mm) for exact fitment

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle shafts designed to meet OEM specifications. This line emphasizes durability and precise fitment, incorporating features such as ABS tone rings and secure axle nut locking mechanisms. The CH-8080 model exemplifies these standards, providing a reliable replacement part for select Chrysler, Dodge, and Plymouth vehicles.

Technical Specifications and Features

The CH-8080 CV axle shaft includes a neoprene boot that resists wear and environmental damage, extending the life of the joint. It features a male inboard joint type with 25 splines and a conventional outboard joint with 26 splines, ensuring smooth power transfer. The ABS system is supported by a 47-tooth toothed ABS ring and an included tone ring, which help maintain accurate wheel speed sensor readings. The axle nut is a hex type measuring 1 1/4 inches (31.6 mm) across flats, with a height of 5/7 inches (17.8 mm) and a length of 2 1/7 inches (54.7 mm). It uses an M22x1.5 thread size and locks securely with a cotter pin to prevent loosening during operation.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts in Chrysler Caravan and Dodge Grand Caravan
• Restores proper ABS sensor function with included tone ring and ABS ring
• Eliminates axle vibration and noise caused by joint wear or boot failure
• Prevents grease leakage and contamination with durable neoprene boot
• Secures wheel hub connection with included axle nut and cotter pin locking

Installation Notes and Tips

• Verify vehicle compatibility with Chrysler, Dodge, or Plymouth models listed before installation
• Ensure the cotter pin is properly installed to secure the axle nut and prevent loosening
• Inspect surrounding suspension and hub components for wear during replacement
• Use appropriate torque specifications for axle nut tightening to avoid damage
• Check ABS sensor alignment and wiring after installation to maintain system accuracy

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft CH-8080 is a new, not remanufactured, component built to meet or exceed OEM standards. It includes an ABS tone ring and a secure locking axle nut to ensure reliable operation. While specific warranty details are not provided, TrakMotive products typically come with manufacturer-backed quality assurance to support durability and performance in compatible Chrysler, Dodge, and Plymouth vehicles.
