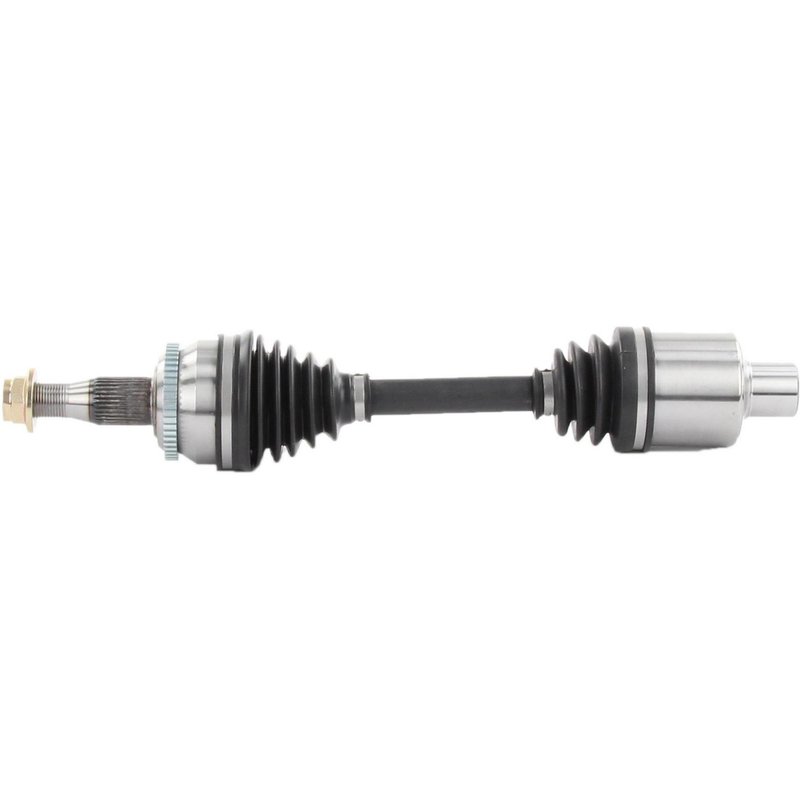

TrakMotive CH-8094 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft CH-8094

The TrakMotive CV Axle Shaft CH-8094 is engineered for reliable driveline performance in select Chrysler and Dodge vehicles. Designed specifically for models like the 300M, Concorde, Intrepid, and LHS, this new axle shaft ensures precise fitment and durability.

• Compatible with Chrysler 300M, Concorde, Intrepid, and LHS
• Includes a self-locking hex axle nut (M27*2 thread size)
• Neoprene boot material for enhanced joint protection
• ABS tone ring with 50 toothed ring teeth included
• Overall compressed length of 21.14 inches (537 mm)
• Inboard female joint with 27 splines and outboard conventional joint with 33 splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle shafts designed to meet OEM specifications. This line emphasizes precise engineering, including features like ABS tone rings and durable neoprene boots, to maintain driveline integrity and vehicle safety. The CH-8094 model exemplifies these standards with its comprehensive component integration and fitment accuracy.

Technical Specifications and Features

The CH-8094 CV Axle Shaft includes a 50-tooth ABS ring with a toothed design, ensuring accurate wheel speed sensor readings for anti-lock braking systems. The axle nut is a self-locking hex type, measuring 1 2/7 inches (32.8 mm) across the flats, with a height of 6/7 inches (22 mm) and a length of 1 1/2 inches (37.9 mm). The axle nut is included with the shaft for convenience. The neoprene boot material provides resistance to wear and environmental factors, protecting the inboard and outboard joints. The inboard joint features a female connection style with 27 splines, while the outboard joint is conventional with 33 splines. The overall compressed length of 21.14 inches (537 mm) ensures proper fitment within the specified vehicle models.

Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Chrysler 300M, Concorde, Intrepid, and LHS
• Restores proper ABS sensor function with included toothed ABS tone ring
• Eliminates axle vibration and noise caused by joint wear or boot failure
• Prevents grease leakage and contamination with durable neoprene boot
• Ensures secure wheel attachment with included self-locking axle nut

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft CH-8094, verify compatibility with the vehicle make and model. Use proper torque specifications for the M27*2 self-locking axle nut to ensure secure fitment. Inspect the axle shaft splines and joints for damage before installation. The included ABS tone ring should be aligned correctly to maintain accurate sensor readings. It is recommended to replace axle nuts and boots as a set to maintain driveline integrity.

Quality Assurance and Warranty

This CV Axle Shaft is a new, not remanufactured, component built to meet or exceed OEM standards. The use of high-quality materials such as neoprene for the boot and precision-machined splines supports long-term durability. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliable performance in compatible Chrysler and Dodge vehicles.
