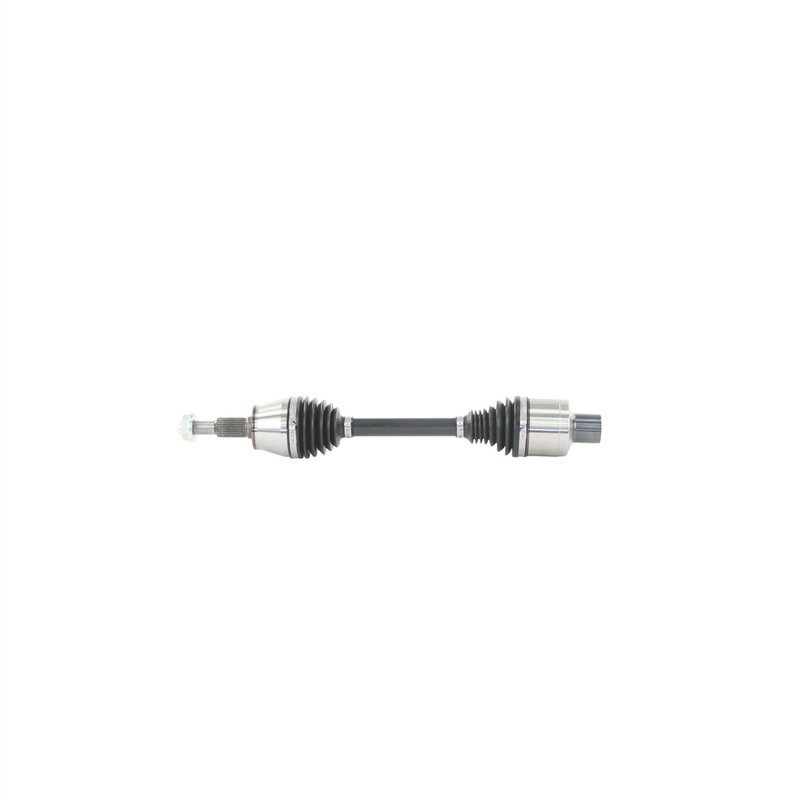

TrakMotive CH-8100HDX CV Axle Shaft - Front Right
| Brand | TrakMotive CH-8100HDX |
|---|---|
| Position | Front Right |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .88 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.375 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.625 |
| Axle Nut Length (mm) | 41 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Socket Size | 36 |
| Axle Nut Thread Size | M24x2 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 29 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 29 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 24 |
| Overall Compressed Length (mm) | 610 |
| Overall Extended Length (in) | 26.19 |
| Product line | Extreme Climate CV Axle Shaft |
| Fits | Jeep · 11 vehicles |
Extreme Climate design. Premium grease and thermoplastic boots help maintain OE performance in extreme temperatures.
OE performance. Engineered to match original function with a direct replacement CV axle shaft.
Includes axle nut. Self-locking hardware is provided for a cleaner installation.
Cross-references TrakMotive CH-8100HDX and NCV82502 for the same application. See all 2.
Extreme Climate CV Axle for Jeep Front Right
TrakMotive CH-8100HDX is a front right CV axle shaft for select Jeep Commander and Jeep Grand Cherokee applications. It is built for OE-style driveline service with premium 7023B grease and thermoplastic boots engineered to maintain performance across extreme temperatures from -50°C to +50°C.
Key Features
- Fits 2006-2010 Jeep Commander, front right
- Fits 2005-2010 Jeep Grand Cherokee, front right
- Extreme Climate CV Axle Shaft line for temperature-sensitive driveline service
- Premium 7023B grease for consistent joint lubrication
- Thermoplastic boots on the inboard and outboard joints
- 29-spline inboard and 29-spline outboard shaft connection
- Includes axle nut with M24x2 thread, 36 mm hex size, and self-locking design
- Overall compressed length: 24 in (610 mm); overall extended length: 26.19 in (665 mm)
Product Details
TrakMotive CH-8100HDX is a premium-grade CV axle shaft for the front right position on Jeep Commander and Jeep Grand Cherokee models listed above. The axle uses a conventional outboard joint, a female inboard joint, and spline connections at both ends for direct driveline replacement. The Extreme Climate CV Axle Shaft product line focuses on maintaining OE performance in severe heat and cold, making it a practical choice for vehicles exposed to wide temperature swings.
This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application.
Common Problems This Part Addresses
- Clicking or popping from a worn CV joint during turns
- Vibration or shudder from a damaged axle shaft
- Torn or cracked CV boots that allow grease loss and contamination
- Driveline noise caused by worn spline engagement
- Front right axle failure on Jeep Commander and Jeep Grand Cherokee models
Installation Notes
Verify front right fitment by year, model, and suspension configuration before installation. This axle is not for use with lifted or modified suspensions on the listed Jeep applications. Confirm axle nut thread size, hex size, and overall length against the original part before assembly.
Quality Assurance
TrakMotive positions this axle in its premium Extreme Climate line, using thermoplastic boot materials and temperature-stable grease to support OE-level driveline operation in demanding conditions.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2010 | Jeep | Commander | 4WD | Front Right | Not for use with lifted or modified suspensions; Extreme Climate CV Axle Shaft |
| 2010 | Jeep | Grand Cherokee | AWD | Front Right | Not for use with lifted or modified suspensions; Extreme Climate CV Axle Shaft |
| 2009 | Jeep | Commander | 4WD | Front Right | Not for use with lifted or modified suspensions; Extreme Climate CV Axle Shaft |
| 2009 | Jeep | Grand Cherokee | AWD | Front Right | Not for use with lifted or modified suspensions; Extreme Climate CV Axle Shaft |
| 2008 | Jeep | Commander | AWD | Front Right | Not for use with lifted or modified suspensions; Extreme Climate CV Axle Shaft |
| 2008 | Jeep | Grand Cherokee | AWD | Front Right | Not for use with lifted or modified suspensions; Extreme Climate CV Axle Shaft |
| 2007 | Jeep | Commander | AWD | Front Right | Not for use with lifted or modified suspensions; Extreme Climate CV Axle Shaft |
| 2007 | Jeep | Grand Cherokee | AWD | Front Right | Not for use with lifted or modified suspensions; Extreme Climate CV Axle Shaft |
| 2006 | Jeep | Commander | AWD | Front Right | Not for use with lifted or modified suspensions; Extreme Climate CV Axle Shaft |
| 2006 | Jeep | Grand Cherokee | AWD | Front Right | Not for use with lifted or modified suspensions; Extreme Climate CV Axle Shaft |
| 2005 | Jeep | Grand Cherokee | AWD | Front Right | Not for use with lifted or modified suspensions; Extreme Climate CV Axle Shaft |
