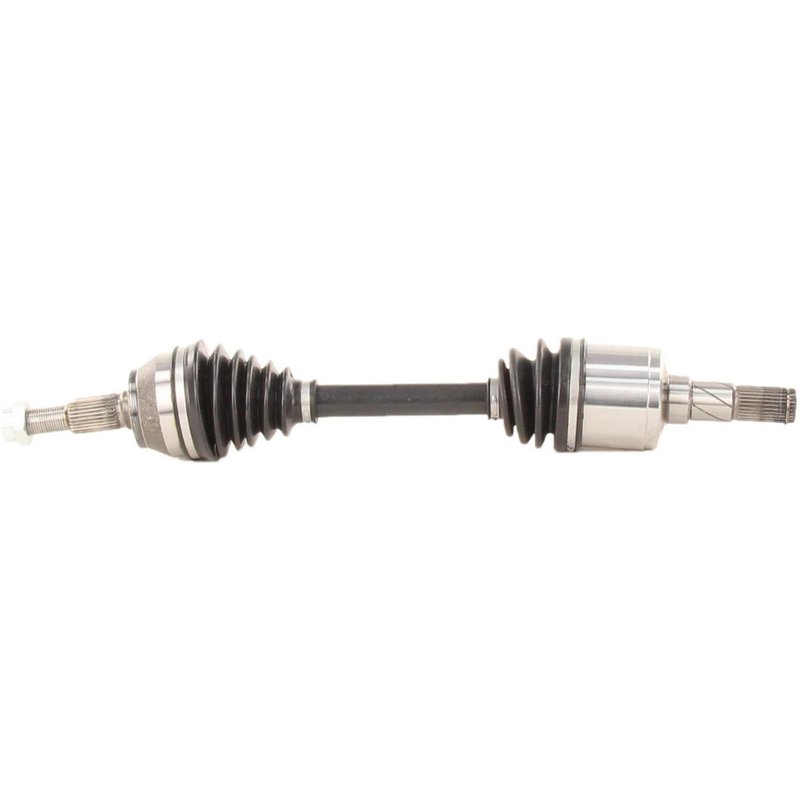

TrakMotive CH-8101 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft CH-8101

The TrakMotive CV Axle Shaft CH-8101 is designed specifically for Jeep Commander and Grand Cherokee models. This new CV axle shaft ensures reliable driveline performance with precise fitment and durable construction.

• Compatible with Jeep Commander and Grand Cherokee
• Includes self-locking axle nut with hex head
• Neoprene boot material for enhanced durability
• Male inboard joint type with 29 splines
• Conventional outboard joint with 29 splines
• Overall compressed length of 26.54 inches (674 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components engineered for specific vehicle applications. The CH-8101 model features a neoprene boot for resistance against wear and environmental factors, and a self-locking axle nut designed to maintain secure installation. This product line emphasizes compatibility and durability for Jeep driveline systems.

Technical Specifications and Features

The CH-8101 CV axle shaft includes a hex head axle nut measuring 36 mm (1 3/7 inches) across flats, with a height of 21.5 mm (6/7 inches) and a length of 41.5 mm (1 5/8 inches). The axle nut thread size is M24x2, and it features a self-locking mechanism to prevent loosening during operation. The inboard joint is a male type with 29 splines, matching the outboard joint which is conventional with 29 splines as well. The overall compressed length of the shaft is 26.54 inches (674 mm), ensuring proper fitment within the Jeep Commander and Grand Cherokee driveline assemblies.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Jeep Commander and Grand Cherokee
• Resolves issues related to axle vibration or clicking noises during turns
• Addresses grease leakage caused by torn or degraded boots
• Eliminates axle nut loosening with self-locking nut design
• Restores driveline stability and smooth power transfer to wheels

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft CH-8101, ensure the axle nut is torqued to manufacturer specifications to maintain the self-locking feature. Inspect the mating surfaces for cleanliness and damage before assembly. The neoprene boot should be checked for proper seating to prevent contamination. This part is designed for direct replacement on compatible Jeep Commander and Grand Cherokee models, facilitating straightforward installation.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft CH-8101 is a new, not remanufactured, component built to meet OEM standards. It includes a self-locking axle nut and durable neoprene boot to enhance longevity. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliable performance in driveline applications.
