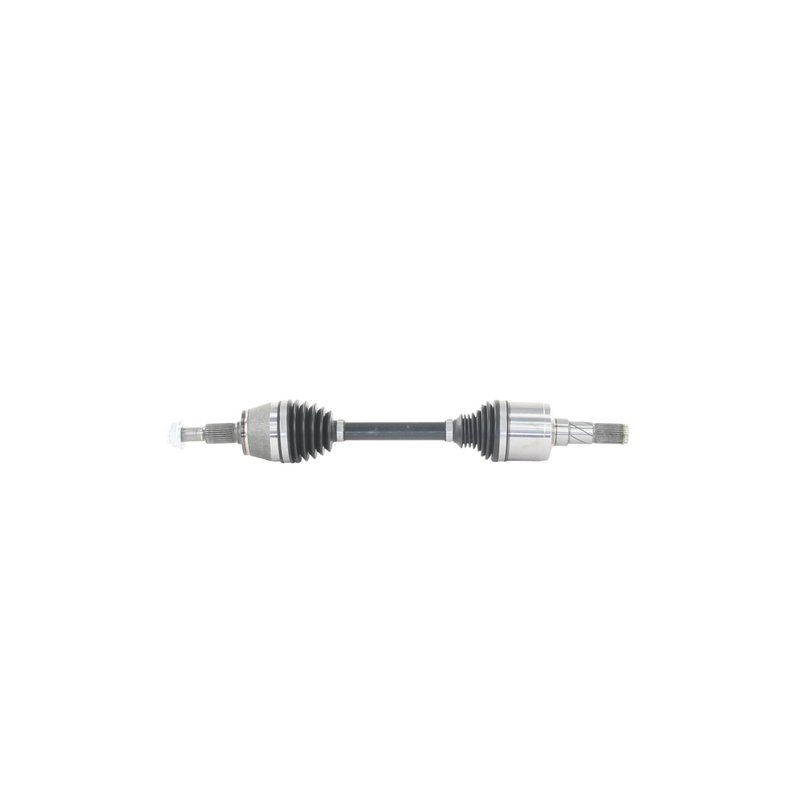

TrakMotive CH-8101HDX CV Axle Shaft - Front Left
| Brand | TrakMotive CH-8101HDX |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .88 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.375 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.625 |
| Axle Nut Length (mm) | 41 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Socket Size | 36 |
| Axle Nut Thread Size | M24x2 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 29 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 29 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 26.56 |
| Overall Compressed Length (mm) | 674 |
| Overall Extended Length (in) | 28.69 |
| Product line | Extreme Climate CV Axle Shaft |
| Fits | Jeep · 11 vehicles |
Extreme Climate design. Premium 7023B grease and TPE boots help maintain OE performance in extreme temperatures.
OE performance. Engineered to maintain original performance standards in demanding temperature swings.
Premium grade. A CV axle shaft built with thermoplastic boots and spline connections for dependable driveline function.
Cross-references TrakMotive CH-8101HDX and NCV82501 for the same application. See all 2.
Extreme Climate CV Axle for Jeep Front Left
TrakMotive CH-8101HDX is an Extreme Climate CV Axle Shaft built for front left service on select Jeep Commander and Jeep Grand Cherokee applications. It uses premium 7023B grease and thermoplastic boots to help maintain OE-style performance across extreme temperature swings.
Key Features
- Fits 2006-2010 Jeep Commander, front left
- Fits 2005-2010 Jeep Grand Cherokee, front left
- Extreme Climate CV Axle Shaft line from TrakMotive
- Premium 7023B grease for temperature stability
- Thermoplastic boots on the inboard and outboard joints
- 29-spline inboard and 29-spline outboard shaft connection
- Includes axle nut with M24x2 thread, 36 mm hex size, and self-locking design
- No ABS tone ring included
Product Details
This TrakMotive CV axle shaft is engineered for front left driveline replacement on Jeep Commander and Jeep Grand Cherokee models listed above. The CH-8101HDX uses a conventional outboard joint, a male inboard joint, and spline-style shaft connections to match the specified OE application. The Extreme Climate CV Axle Shaft product line is built around premium grease and thermoplastic boot materials that help the assembly retain consistent operation in hot and cold environments.
This part cross-references Monroe Shocks & Struts (e.g., NCV82501) for the same application.
Common Problems This Part Addresses
- Clicking or popping during turns from a worn CV joint
- Vibration under acceleration caused by axle wear
- Torn or cracked CV boots that allow grease loss
- Noise from a damaged front left axle shaft
- Driveline performance issues on high-mileage Jeep Commander or Jeep Grand Cherokee vehicles
Installation Notes and Tips
Verify front left fitment before installation and confirm axle length, spline count, and axle nut thread size against the original part. This application is not for use with lifted or modified suspensions. Inspect the hub, seals, and surrounding driveline components during replacement to help prevent repeat failure.
Quality Assurance
TrakMotive positions the Extreme Climate CV Axle Shaft line around OE-performance materials for demanding temperature conditions. CH-8101HDX is built with premium-grade components and application-specific dimensions for the listed Jeep Commander and Jeep Grand Cherokee fitments.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2010 | Jeep | Commander | 4WD | Front Left | Not for use with lifted or modified suspensions; Extreme Climate CV Axle Shaft |
| 2010 | Jeep | Grand Cherokee | AWD | Front Left | Not for use with lifted or modified suspensions; Extreme Climate CV Axle Shaft |
| 2009 | Jeep | Commander | 4WD | Front Left | Not for use with lifted or modified suspensions; Extreme Climate CV Axle Shaft |
| 2009 | Jeep | Grand Cherokee | AWD | Front Left | Not for use with lifted or modified suspensions; Extreme Climate CV Axle Shaft |
| 2008 | Jeep | Commander | AWD | Front Left | Not for use with lifted or modified suspensions; Extreme Climate CV Axle Shaft |
| 2008 | Jeep | Grand Cherokee | AWD | Front Left | Not for use with lifted or modified suspensions; Extreme Climate CV Axle Shaft |
| 2007 | Jeep | Commander | AWD | Front Left | Not for use with lifted or modified suspensions; Extreme Climate CV Axle Shaft |
| 2007 | Jeep | Grand Cherokee | AWD | Front Left | Not for use with lifted or modified suspensions; Extreme Climate CV Axle Shaft |
| 2006 | Jeep | Commander | AWD | Front Left | Not for use with lifted or modified suspensions; Extreme Climate CV Axle Shaft |
| 2006 | Jeep | Grand Cherokee | AWD | Front Left | Not for use with lifted or modified suspensions; Extreme Climate CV Axle Shaft |
| 2005 | Jeep | Grand Cherokee | AWD | Front Left | Not for use with lifted or modified suspensions; Extreme Climate CV Axle Shaft |
| No rows match your filter. | |||||
