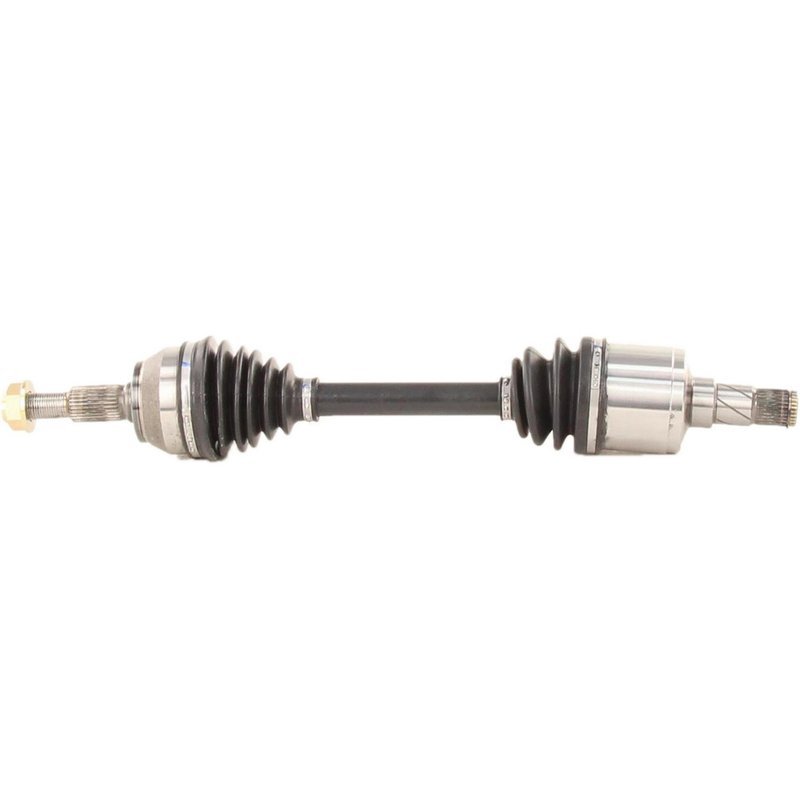

TrakMotive CH-8102 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft CH-8102

The TrakMotive CV Axle Shaft CH-8102 is designed specifically for Jeep Commander and Grand Cherokee models. This new CV axle shaft provides reliable driveline performance with precise fitment and durable construction.

• Compatible with Jeep Commander and Grand Cherokee
• Includes self-locking axle nut with hex head design
• Neoprene boot material for enhanced durability
• Male inboard joint type with 29 splines
• Overall compressed length of 25.71 inches (653 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components engineered for direct fit replacement. This line emphasizes precise spline counts and connection styles to ensure compatibility with specific vehicle driveline systems. The CH-8102 model features a conventional outboard joint and a male inboard shaft connection style, aligning with the requirements of Jeep Commander and Grand Cherokee drivetrains.

Technical Specifications and Features

This CV axle shaft includes a self-locking axle nut with a hex head measuring 1 2/5 inches (35.5 mm) across flats and a height of 1 inch (23 mm). The axle nut length is 1 3/5 inches (41 mm) with an M24*2 thread size, ensuring secure installation. The neoprene boot material provides resistance to wear and environmental factors, protecting the joint from contaminants. Both the inboard and outboard splines number 29, matching the factory specifications for a proper fit and function.

Common Applications and Problem Resolution

• Replacement of worn or damaged CV axle shafts on Jeep Commander and Grand Cherokee
• Eliminates clicking or popping noises during turns caused by joint wear
• Resolves vibration issues related to axle shaft imbalance or damage
• Prevents grease leakage and contamination with durable neoprene boots
• Restores driveline integrity for smooth power transfer to wheels

Installation Notes and Tips

Ensure the axle nut is torqued to manufacturer specifications using the included self-locking hex nut. Verify spline alignment on both inboard and outboard connections before final assembly. The neoprene boot should be inspected for proper seating to prevent premature wear. This CV axle shaft is designed for direct replacement on compatible Jeep Commander and Grand Cherokee models, facilitating straightforward installation.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft CH-8102 is a new, not remanufactured, component built to meet OEM standards. It undergoes quality control inspections to ensure durability and fitment accuracy. The included self-locking axle nut enhances installation security. Warranty details should be confirmed with the product documentation or supplier.
