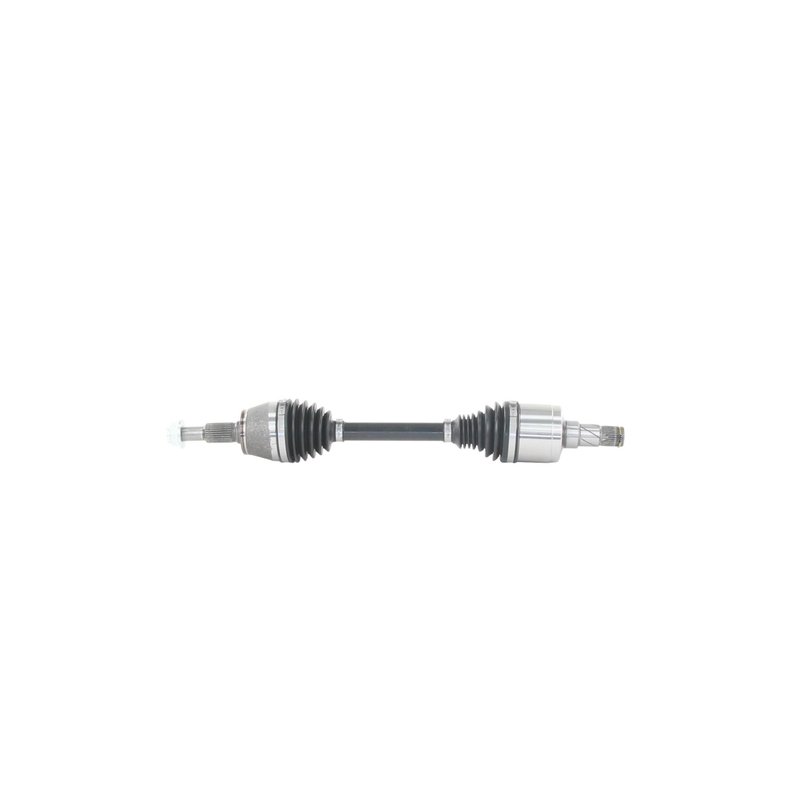

TrakMotive CH-8102HDX CV Axle Shaft - Front Left
| Brand | TrakMotive CH-8102HDX |
|---|---|
| Position | Front Left |
| ABS Ring Tooth Count | 0 |
| ABS Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | .88 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.375 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.625 |
| Axle Nut Length (mm) | 41 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Socket Size | 36 |
| Axle Nut Thread Size | M24x2 |
| Grade Type | Premium |
| Inboard Joint Boot Material | Thermoplastic |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| Number Of Bolt Holes | 0 |
| Number Of Inboard Joint Bolt Holes | 0 |
| Number Of Inboard Shaft Bolts | 0 |
| Number Of Inboard Splines | 29 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Number Of Outboard Shaft Bolts | 0 |
| Number Of Outboard Splines | 29 |
| Outboard Joint Boot Material | Thermoplastic |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 25.69 |
| Overall Compressed Length (mm) | 653 |
| Overall Extended Length (in) | 27.875 |
| Product line | Extreme Climate CV Axle Shaft |
| Fits | Jeep · 11 vehicles |
Extreme Climate design. Premium 7023B grease and TPE boots help maintain OE performance in extreme temperatures.
OE performance. Engineered to maintain original performance standards under demanding temperature swings.
Premium construction. Thermoplastic boots and spline connections support durable CV axle operation.
Cross-references TrakMotive CH-8102HDX and NCV82500 for the same application. See all 2.
Extreme Climate CV Axle for Jeep Front Left
TrakMotive CH-8102HDX is a front left CV axle shaft for select Jeep Commander and Jeep Grand Cherokee applications. It is built for OE-style driveline operation in demanding temperature swings, using premium 7023B grease and thermoplastic boots to help maintain consistent performance from hot to cold conditions.
Key Features
- Extreme Climate CV Axle Shaft from TrakMotive
- Premium 7023B grease formulated for temperature extremes of +/- 50°C
- Thermoplastic inboard and outboard boots
- 29-spline inboard and 29-spline outboard shaft connection
- Conventional outboard joint with male inboard joint
- Includes axle nut with M24x2 thread, 36 mm hex size, and self-lock design
- No ABS tone ring included
- Overall compressed length: 653 mm; overall extended length: 708 mm
Detailed Description
This TrakMotive CV axle shaft is engineered for front left service on 2005-2010 Jeep Grand Cherokee and 2006-2010 Jeep Commander models. The Extreme Climate CV Axle Shaft line uses premium grease and TPE-style boot materials to support OE-level driveline function across wide temperature changes, making CH-8102HDX a direct-fit replacement for vehicles that need stable CV joint operation in harsh weather.
CH-8102HDX includes a self-lock axle nut and uses spline connections at both ends for proper engagement. The axle is built with 29 splines on the inboard and outboard sides, a conventional outboard joint, and a male inboard joint. This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application.
What It Helps Address
- Clicking or popping from a worn front CV joint
- Vibration during acceleration from a damaged axle shaft
- Torn or heat-aged CV boots
- Grease loss from cracked thermoplastic boot material
- Front left driveline noise on Jeep Commander and Jeep Grand Cherokee models
Installation Notes and Tips
Compatible With 2006-2010 Jeep Commander, front left, and 2005-2010 Jeep Grand Cherokee, front left. Not for use with lifted or modified suspensions. Verify spline count, axle length, and axle nut thread size before installation. Inspect the hub, seals, and surrounding suspension components for wear before fitting the new axle.
Quality Assurance
TrakMotive positions the Extreme Climate CV Axle Shaft line for OE-performance replacement use in severe temperature conditions. CH-8102HDX is built with premium-grade materials and application-specific dimensions for direct replacement service.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2010 | Jeep | Commander | 4WD | Front Left | Not for use with lifted or modified suspensions; Extreme Climate CV Axle Shaft |
| 2010 | Jeep | Grand Cherokee | AWD | Front Left | Not for use with lifted or modified suspensions; Extreme Climate CV Axle Shaft |
| 2009 | Jeep | Commander | 4WD | Front Left | Not for use with lifted or modified suspensions; Extreme Climate CV Axle Shaft |
| 2009 | Jeep | Grand Cherokee | AWD | Front Left | Not for use with lifted or modified suspensions; Extreme Climate CV Axle Shaft |
| 2008 | Jeep | Commander | AWD | Front Left | Not for use with lifted or modified suspensions; Extreme Climate CV Axle Shaft |
| 2008 | Jeep | Grand Cherokee | AWD | Front Left | Not for use with lifted or modified suspensions; Extreme Climate CV Axle Shaft |
| 2007 | Jeep | Commander | AWD | Front Left | Not for use with lifted or modified suspensions; Extreme Climate CV Axle Shaft |
| 2007 | Jeep | Grand Cherokee | AWD | Front Left | Not for use with lifted or modified suspensions; Extreme Climate CV Axle Shaft |
| 2006 | Jeep | Commander | AWD | Front Left | Not for use with lifted or modified suspensions; Extreme Climate CV Axle Shaft |
| 2006 | Jeep | Grand Cherokee | AWD | Front Left | Not for use with lifted or modified suspensions; Extreme Climate CV Axle Shaft |
| 2005 | Jeep | Grand Cherokee | AWD | Front Left | Not for use with lifted or modified suspensions; Extreme Climate CV Axle Shaft |
