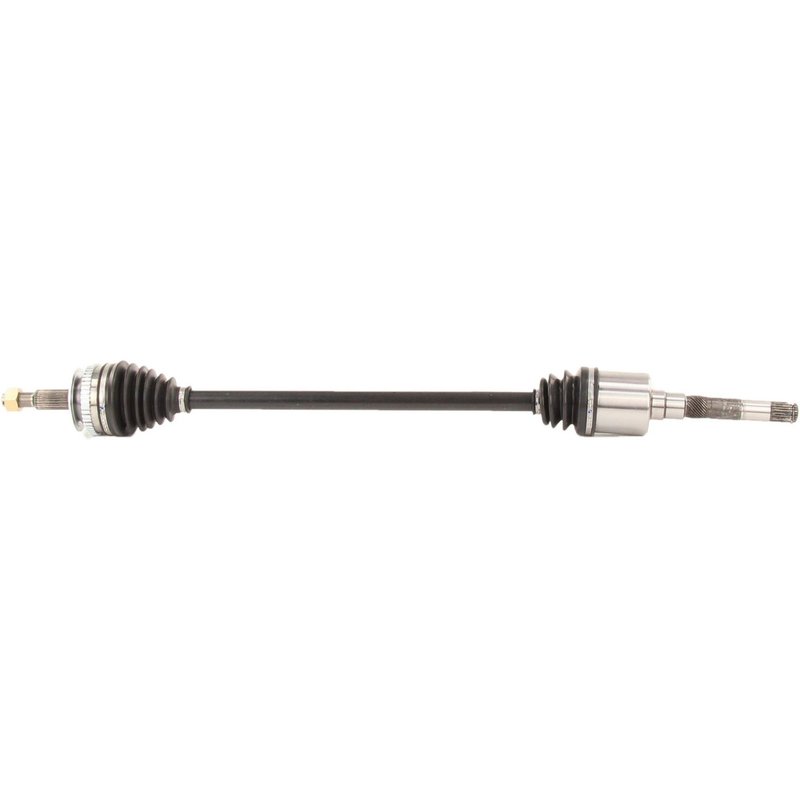

TrakMotive CH-8108 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft CH-8108

The TrakMotive CV Axle Shaft CH-8108 is engineered for reliable driveline performance in Chrysler, Dodge, and Plymouth vehicles. Designed specifically for models like the Caravan, Grand Caravan, Grand Voyager, Town & Country, and Voyager, this new CV axle shaft ensures precise fitment and durability.

• Compatible with Chrysler, Dodge, Plymouth Caravan, Grand Caravan, Grand Voyager, Town & Country, and Voyager
• Includes a neoprene boot for enhanced protection
• Equipped with a 47-tooth ABS ring and included tone ring
• Axle nut with hex head, cotter pin locking, and M22*1.5 thread size
• Overall compressed length of 40.51 inches (1029 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering high-quality constant velocity components designed to meet OEM specifications. This CV axle shaft model CH-8108 features a male inboard joint and conventional outboard joint, ensuring compatibility with the driveline systems of select Chrysler, Dodge, and Plymouth vehicles. The inclusion of a toothed ABS ring and tone ring supports accurate wheel speed sensor readings, critical for ABS functionality.

Technical Specifications and Features

This CV axle shaft is constructed with a neoprene boot to resist wear and environmental damage. It features 25 inboard splines and 26 outboard splines, providing secure shaft connections. The axle nut is a hex type with a 1 1/4 inch (31.6 mm) hex size, 5/7 inch (17.8 mm) height, and 2 1/7 inch (54.7 mm) length, secured with a cotter pin locking mechanism. The ABS ring has 47 teeth and is designed as a toothed ring, with the tone ring included for sensor compatibility.

Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts in Chrysler Caravan and Dodge Grand Caravan
• Restores proper ABS sensor function with included ABS tone ring
• Eliminates axle vibration and noise caused by joint wear
• Addresses boot damage and grease leakage with durable neoprene boot
• Ensures secure wheel attachment with included axle nut and cotter pin locking

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft CH-8108, verify compatibility with your vehicle’s make and model. Use the included axle nut and cotter pin to secure the shaft properly. Ensure the ABS tone ring is correctly positioned to maintain accurate sensor readings. Lubricate splines as recommended and inspect surrounding components for wear during installation.

Quality Assurance and Warranty

This CV axle shaft is new and manufactured to meet or exceed OEM standards for fit and function. The neoprene boot material and precision-machined splines contribute to long service life. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliability in driveline applications.
