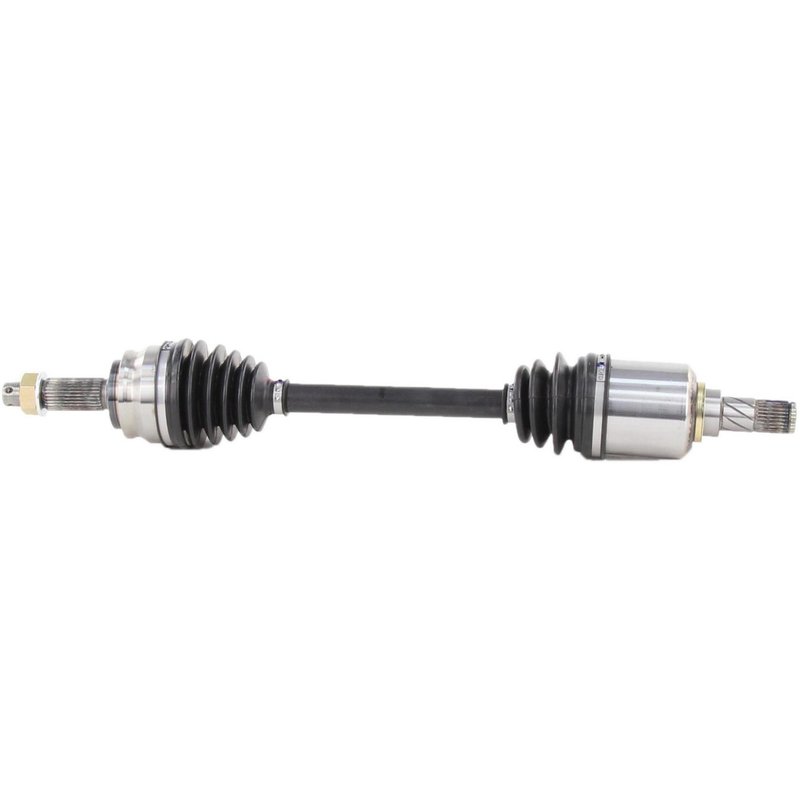

TrakMotive CH-8110 CV Axle Shaft - Front Left
| Brand | TrakMotive CH-8110 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 3/5 |
| Axle Nut Height (mm) | 15 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Cotter Pin |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 28 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 25.12 |
| Overall Compressed Length (mm) | 638 |
| Product line | CV Axle Shaft |
| Fits | Jeep and Dodge · 54 vehicles |
New replacement shaft. Built as a fresh CV axle shaft for straightforward service replacement.
Neoprene boot. Flexible material helps protect the joint from dirt and moisture.
Axle nut included. Comes with a hex nut and cotter-pin locking style for installation.
Cross-references Cardone New 66-3511, TrakMotive CH-8110 and 60-3511 for the same application. See all 19.
CV Axle Shaft for Jeep Compass, Patriot, and Dodge Caliber
TrakMotive CH-8110 is a new front left CV axle shaft for select Jeep Compass, Jeep Patriot, and Dodge Caliber applications. It is built for direct replacement service and includes the axle nut specified for the application.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: CH-8110
- Front left position
- New axle shaft, not remanufactured
- Inboard joint type: male
- Outboard joint type: conventional
- Boot material: neoprene
- Axle nut included with cotter pin locking type
- Axle nut thread size: M22 x 1.5
- Overall compressed length: 25.12 in. (638 mm)
- ABS tone ring not included
Product Details
TrakMotive CH-8110 is a CV axle shaft for front left driveline service on 2007-2017 Jeep Patriot, 2007-2016 Jeep Compass, and 2007-2012 Dodge Caliber applications, with additional VIN-specific coverage for 2008 and 2009 Dodge Caliber models. The axle uses a male inboard connection, a conventional outboard joint, and a neoprene boot for the specified fitment. TrakMotive identifies this part as a direct replacement axle shaft for the listed vehicles, and the CH-8110 reference is useful when cross-checking interchange data during ordering or repair planning.
This part cross-references Cardone New 66-3511 for the same application.
What This Part Helps Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder from a damaged axle shaft
- Grease leakage from a torn or deteriorated CV boot
- Front-wheel-drive driveline noise under acceleration
- Loss of smooth power transfer to the front left wheel
Installation Notes and Tips
Verify the vehicle’s year, make, model, and front left application before installation. Confirm axle nut thread size, spline count, and overall length against the removed part to ensure proper match. ABS axles can fit non-ABS applications unless otherwise noted by the vehicle listing, and this axle does not include an ABS tone ring. Use the correct torque procedure for the axle nut and follow the vehicle service manual for hub, knuckle, and suspension fastener specifications.
Quality Assurance
TrakMotive lists this CV axle shaft as a new part and backs it with a limited lifetime warranty. The manufacturer also states ISO 9001:1007 and TS 16949:2009 certification, reflecting controlled production and quality management practices.
| Year | Make | Model | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2017 | Jeep | Compass | FWD | Automatic CVT | — | — | Front Left | classic style, vertical rear door handle; CV Axle Shaft |
| 2017 | Jeep | Compass | FWD | Manual | — | — | Front Left | classic style, vertical rear door handle; CV Axle Shaft |
| 2017 | Jeep | Compass | 4WD | Manual | — | — | Front Left | classic style, vertical rear door handle; CV Axle Shaft |
| 2017 | Jeep | Compass | 4WD | Automatic CVT | — | — | Front Left | classic style, vertical rear door handle; CV Axle Shaft |
| 2017 | Jeep | Patriot | FWD | Automatic CVT | — | — | Front Left | ( continuously variable ); CV Axle Shaft |
| 2017 | Jeep | Patriot | FWD | Manual | — | — | Front Left | CV Axle Shaft |
| 2017 | Jeep | Patriot | 4WD | Manual | — | — | Front Left | CV Axle Shaft |
| 2017 | Jeep | Patriot | 4WD | Automatic CVT | — | — | Front Left | ( continuously variable ); CV Axle Shaft |
| 2016 | Jeep | Compass | FWD | Automatic CVT | — | — | Front Left | CV Axle Shaft |
| 2016 | Jeep | Compass | FWD | Manual | — | — | Front Left | CV Axle Shaft |
| 2016 | Jeep | Compass | 4WD | Manual | — | — | Front Left | CV Axle Shaft |
| 2016 | Jeep | Compass | 4WD | Automatic CVT | — | — | Front Left | CV Axle Shaft |
| 2016 | Jeep | Patriot | FWD | Automatic CVT | — | — | Front Left | ( continuously variable ); CV Axle Shaft |
| 2016 | Jeep | Patriot | FWD | Manual | — | — | Front Left | CV Axle Shaft |
| 2016 | Jeep | Patriot | 4WD | Manual | — | — | Front Left | CV Axle Shaft |
| 2016 | Jeep | Patriot | 4WD | Automatic CVT | — | — | Front Left | ( continuously variable ); CV Axle Shaft |
| 2015 | Jeep | Compass | FWD | Automatic CVT | — | — | Front Left | CV Axle Shaft |
| 2015 | Jeep | Compass | FWD | Manual | — | — | Front Left | CV Axle Shaft |
| 2015 | Jeep | Compass | 4WD | Manual | — | — | Front Left | CV Axle Shaft |
| 2015 | Jeep | Compass | 4WD | Automatic CVT | — | — | Front Left | CV Axle Shaft |
| 2015 | Jeep | Patriot | FWD | Automatic CVT | — | — | Front Left | ( continuously variable ); CV Axle Shaft |
| 2015 | Jeep | Patriot | FWD | Manual | — | — | Front Left | CV Axle Shaft |
| 2015 | Jeep | Patriot | 4WD | Manual | — | — | Front Left | CV Axle Shaft |
| 2015 | Jeep | Patriot | 4WD | Automatic CVT | — | — | Front Left | ( continuously variable ); CV Axle Shaft |
| 2014 | Jeep | Compass | — | Automatic CVT | — | — | Front Left | CV Axle Shaft |
| 2014 | Jeep | Compass | — | Manual | — | — | Front Left | CV Axle Shaft |
| 2014 | Jeep | Patriot | — | Automatic CVT | — | — | Front Left | ( continuously variable ); CV Axle Shaft |
| 2014 | Jeep | Patriot | — | Manual | — | — | Front Left | CV Axle Shaft |
| 2013 | Jeep | Compass | — | — | — | — | Front Left | CV Axle Shaft |
| 2013 | Jeep | Patriot | — | — | — | — | Front Left | CV Axle Shaft |
| 2012 | Dodge | Caliber | — | — | 2.0L | L4 | Front Left | CV Axle Shaft |
| 2012 | Jeep | Compass | — | — | — | — | Front Left | CV Axle Shaft |
| 2012 | Jeep | Patriot | — | — | — | — | Front Left | CV Axle Shaft |
| 2011 | Dodge | Caliber | — | — | 2.4L | L4 | Front Left | CV Axle Shaft |
| 2011 | Jeep | Compass | — | — | — | — | Front Left | CV Axle Shaft |
| 2011 | Jeep | Patriot | — | — | — | — | Front Left | CV Axle Shaft |
| 2010 | Dodge | Caliber | — | — | 2.4L | L4 | Front Left | CV Axle Shaft |
| 2010 | Jeep | Compass | — | — | — | — | Front Left | CV Axle Shaft |
| 2010 | Jeep | Patriot | — | — | — | — | Front Left | CV Axle Shaft |
| 2009 | Dodge | Caliber | — | — | 2.4L | L4 | Front Left | VIN B (8th Digit); CV Axle Shaft |
| 2009 | Dodge | Caliber | — | — | 2.0L | L4 | Front Left | CV Axle Shaft |
| 2009 | Dodge | Caliber | — | — | 1.8L | L4 | Front Left | CV Axle Shaft |
| 2009 | Jeep | Compass | — | — | — | — | Front Left | CV Axle Shaft |
| 2009 | Jeep | Patriot | — | — | — | — | Front Left | CV Axle Shaft |
| 2008 | Dodge | Caliber | — | — | 2.4L | L4 | Front Left | VIN K (8th Digit); CV Axle Shaft |
| 2008 | Dodge | Caliber | — | — | 2.0L | L4 | Front Left | CV Axle Shaft |
| 2008 | Dodge | Caliber | — | — | 1.8L | L4 | Front Left | CV Axle Shaft |
| 2008 | Jeep | Compass | — | — | — | — | Front Left | CV Axle Shaft |
| 2008 | Jeep | Patriot | — | — | — | — | Front Left | CV Axle Shaft |
| 2007 | Dodge | Caliber | — | — | 2.4L | L4 | Front Left | CV Axle Shaft |
| 2007 | Dodge | Caliber | — | — | 2.0L | L4 | Front Left | CV Axle Shaft |
| 2007 | Dodge | Caliber | — | — | 1.8L | L4 | Front Left | CV Axle Shaft |
| 2007 | Jeep | Compass | — | — | — | — | Front Left | CV Axle Shaft |
| 2007 | Jeep | Patriot | — | — | — | — | Front Left | CV Axle Shaft |
