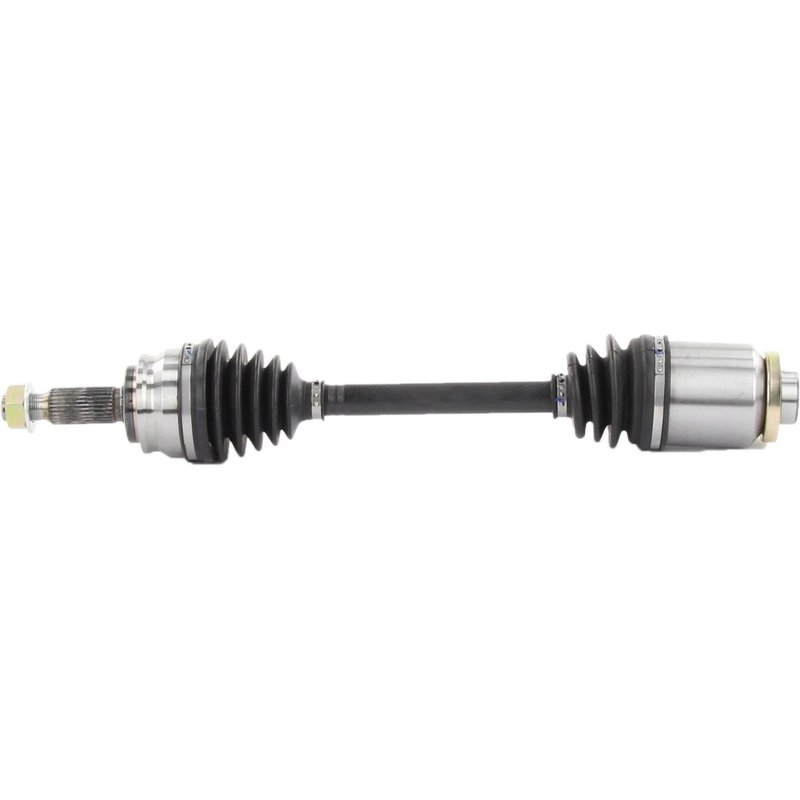

TrakMotive CH-8111 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft CH-8111

The TrakMotive CV Axle Shaft CH-8111 is designed specifically for Dodge and Jeep models including the Caliber, Compass, and Patriot. This new CV axle shaft ensures reliable driveline performance with precise fitment and durable construction.

• Compatible with Dodge Caliber, Jeep Compass, and Jeep Patriot
• Part Number: CH-8111
• Includes axle nut with cotter pin locking type
• Neoprene boot material for enhanced durability
• Overall compressed length of 23.11 inches (587 mm)
• Hex axle nut head type with 1 1/4 inch (32 mm) hex size
• Female inboard joint and conventional outboard joint types

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering reliable constant velocity components engineered for specific vehicle applications. This CV axle shaft line emphasizes precise fitment and quality materials, such as neoprene boots and robust joint designs, to maintain driveline integrity and vehicle safety. The CH-8111 model is part of this line, offering a new, direct replacement axle shaft tailored for select Dodge and Jeep vehicles.

Technical Specifications and Features

The CH-8111 CV axle shaft features a neoprene boot that provides resistance to wear and environmental damage. It includes a hex head axle nut measuring 1 1/4 inches (32 mm) across flats, with a height of 3/5 inch (15 mm) and a length of 1 1/2 inches (37 mm). The axle nut uses a cotter pin locking mechanism to ensure secure installation. The inboard joint is female type with 28-2t splines, while the outboard joint is conventional with 28 splines. The overall compressed length of the shaft is 23.11 inches (587 mm), designed to match factory specifications for proper driveline alignment.

Applications and Common Issues Addressed

• Replacement for worn or damaged CV axle shafts on Dodge Caliber, Jeep Compass, and Jeep Patriot
• Resolves issues related to axle shaft vibration or clicking noises during turns
• Addresses grease leakage or torn CV boots causing joint wear
• Fixes axle nut loosening problems with included cotter pin locking nut
• Restores driveline stability and smooth power transfer to wheels

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before removing the old axle shaft. Verify the spline counts and joint types match the CH-8111 specifications. Use the included axle nut with cotter pin locking type to secure the shaft properly. Inspect the axle boot for proper seating to prevent contamination. Torque the axle nut to manufacturer specifications and install the cotter pin to prevent loosening.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft CH-8111 is a new, direct replacement part manufactured to meet OEM standards. It undergoes quality checks to ensure durability and fitment accuracy. While specific warranty details are not provided, TrakMotive products typically come with a limited warranty against defects in materials and workmanship.
