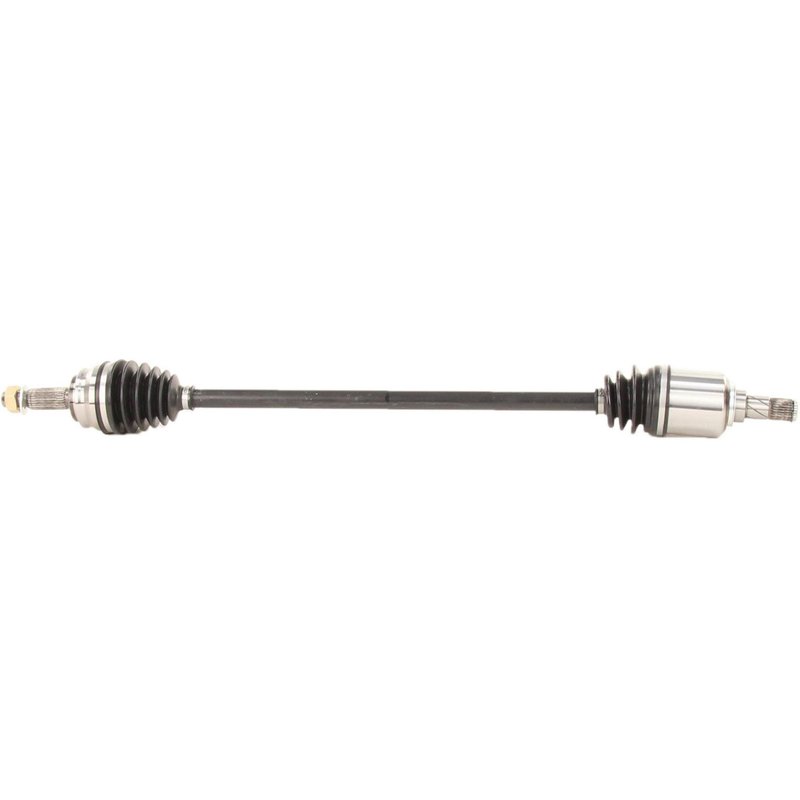

TrakMotive CH-8112 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft CH-8112

The TrakMotive CV Axle Shaft CH-8112 is designed for reliable driveline performance in Dodge and Jeep vehicles. Specifically compatible with Dodge Caliber, Jeep Compass, and Jeep Patriot models, this new CV axle shaft ensures proper fit and function for your vehicle's front-wheel or all-wheel drive system.

• Brand: TrakMotive
• Brand Line: CV Axle Shaft
• Part Number: CH-8112
• Compatible with Dodge Caliber, Jeep Compass, Jeep Patriot
• Axle Nut Included with Hex Head and Cotter Pin Locking
• Neoprene Boot Material for Durability
• Overall Compressed Length: 37.72 inches (958 mm)
• Inboard Joint Type: Male with 27 Splines
• Outboard Joint Type: Conventional with 28 Splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle shafts engineered for precise fitment and durability. This line includes components designed to meet OEM specifications, featuring neoprene boots for enhanced protection against contaminants and wear. The CH-8112 model exemplifies this line by providing a robust axle nut with a hex head and cotter pin locking mechanism, ensuring secure installation and long-term reliability.

Technical Specifications and Features

The CH-8112 CV axle shaft includes a neoprene boot that resists cracking and deterioration, extending the life of the joint. The axle nut is a hex head type measuring 1 1/4 inches (32 mm) across the flats, with a height of 3/5 inch (15 mm) and a length of 1 1/2 inches (37 mm). It features an M22 x 1.5 thread size and a cotter pin locking type for secure fastening. The inboard joint is male with 27 splines, while the outboard joint is conventional with 28 splines, both designed for precise shaft connection and smooth power transfer. The overall compressed length of 37.72 inches (958 mm) ensures proper fitment within the driveline assembly.

Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Dodge Caliber, Jeep Compass, and Jeep Patriot
• Resolves issues related to axle vibration or clicking noises during turns
• Addresses grease leakage or torn CV boots causing joint contamination
• Fixes axle nut loosening problems with included cotter pin locking mechanism
• Restores driveline integrity for smooth power delivery to wheels

Installation Notes and Tips

• Ensure vehicle compatibility with Dodge Caliber, Jeep Compass, or Jeep Patriot before installation
• Use proper torque specifications for the M22 x 1.5 axle nut and secure with the cotter pin
• Inspect surrounding components such as wheel bearings and suspension parts during replacement
• Verify the orientation of the male inboard joint and spline engagement for correct assembly
• Check the neoprene boot for proper seating to prevent premature wear

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft CH-8112 is a new, not remanufactured, component built to meet or exceed OEM standards. It includes a durable neoprene boot and a secure axle nut with cotter pin locking to maintain driveline safety and performance. While specific warranty details are not provided, TrakMotive products typically come with manufacturer-backed quality assurance to support reliable operation in Dodge and Jeep vehicles.
