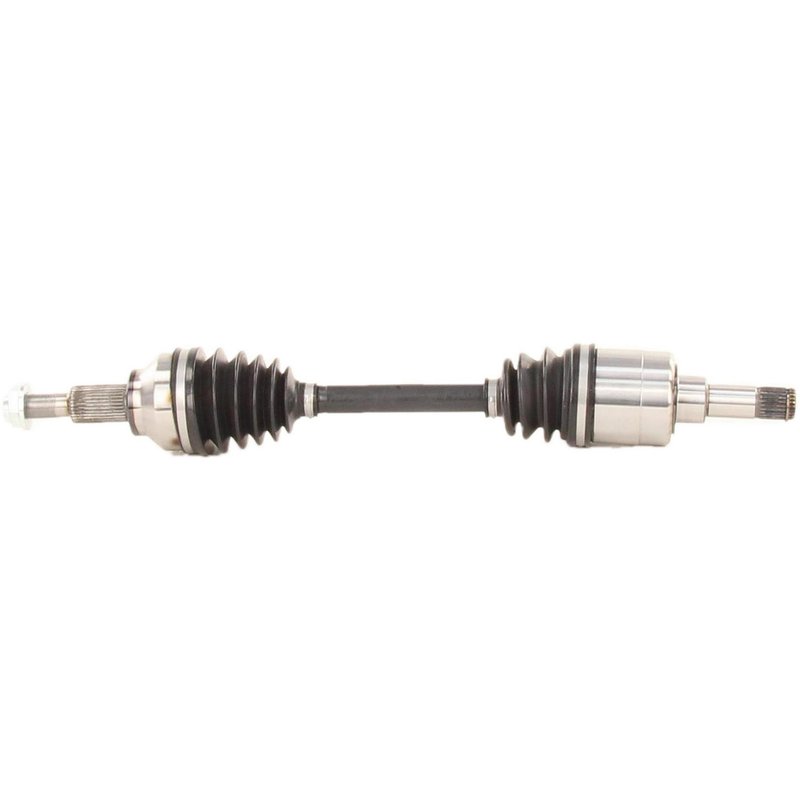

TrakMotive CH-8115 CV Axle Shaft - Front Left
| Brand | TrakMotive CH-8115 |
|---|---|
| Position | Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 4/5 |
| Axle Nut Height (mm) | 20 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Splines | 32 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 25.39 |
| Overall Compressed Length (mm) | 645 |
| Product line | CV Axle Shaft |
| Fits | Dodge and Chrysler · 32 vehicles |
New axle shaft. Built as a direct replacement for driveline service.
Neoprene boot. Helps resist wear while keeping the joint protected.
Includes axle nut. Conveniently supplied for a complete installation.
Cross-references Cardone New 66-3518, Cardone Reman 60-3518 and TrakMotive CH-8115 for the same application. See all 21.
TrakMotive CH-8115 CV Axle Shaft
TrakMotive CH-8115 is a new CV axle shaft for the front left position on select Chrysler and Dodge applications. It is built with a neoprene boot, a male inboard shaft connection, and a conventional outboard joint for direct driveline replacement on supported vehicles.
This CV axle shaft is engineered for 2020 Dodge Journey, 2011-2019 Dodge Journey, 2011-2014 Chrysler 200, 2008-2014 Dodge Avenger, and 2007-2010 Chrysler Sebring front left applications. The CH-8115 includes an axle nut and uses a 25-spline inboard design with 32 outboard splines.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: CH-8115
- Front left axle shaft for select Chrysler and Dodge vehicles
- New construction with neoprene boot material
- Male inboard shaft connection and conventional outboard joint
- 25 inboard splines and 32 outboard splines
- Axle nut included; M22 x 1.5 thread size, stake locking type
- Overall compressed length: 25.39 in. (645 mm)
- ABS tone ring not included
Product Details
TrakMotive CH-8115 is a CV axle shaft from the TrakMotive CV Axle Shaft line, built for front left driveline service on supported Chrysler 200, Dodge Avenger, Dodge Journey, and Chrysler Sebring models. The axle is a new unit with a 25.39-inch compressed length, hex axle nut head type, and a 31.8 mm axle nut hex size. It is intended for vehicles that match the listed spline counts, shaft connection style, and application notes, including Journey models with an intermediate shaft where specified.
This part cross-references Cardone New 66-3518 and Cardone Reman 60-3518 for the same application. TrakMotive CH-8115 is also listed against OE-style reference numbers including 5085180AB and 52123559AA.
Common Problems This Part Can Address
- Clicking or popping during turns from a worn front left CV axle
- Vibration under acceleration caused by axle wear or imbalance
- Grease leakage from a damaged axle boot
- Clunking or driveline noise from worn CV joints
- Loss of smooth power transfer to the front wheel
Installation Notes and Tips
Verify year, make, model, position, spline count, and the intermediate shaft note before installation. This axle is for front left use only and ABS axles fit non-ABS applications unless otherwise noted by the vehicle listing. Confirm axle nut thread size, hex size, and compressed length against the original part before assembly.
For best results, inspect related suspension and hub components during replacement and follow the vehicle service procedure for torque and staking requirements. The CH-8115 is a direct-fit style replacement for the listed Chrysler 200, Dodge Avenger, Dodge Journey, and Chrysler Sebring applications when the fitment details match.
Quality Assurance
TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty and produced by an ISO 9001:1007 and TS 16949:2009 certified company. Those quality systems support consistent manufacturing control for the CH-8115 and related driveline components.
| Year | Make | Model | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2020 | Dodge | Journey | FWD | — | 2.4L | L4 | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2019 | Dodge | Journey | FWD | — | 2.4L | L4 | Front Left | Fits Models with Intermediate Shaft; CV Axle Shaft |
| 2018 | Dodge | Journey | FWD | — | 2.4L | L4 | Front Left | Fits Models with Intermediate Shaft; CV Axle Shaft |
| 2017 | Dodge | Journey | FWD | — | 2.4L | L4 | Front Left | Fits Models with Intermediate Shaft; CV Axle Shaft |
| 2016 | Dodge | Journey | FWD | — | 2.4L | L4 | Front Left | Fits Models with Intermediate Shaft; CV Axle Shaft |
| 2015 | Dodge | Journey | FWD | — | 2.4L | L4 | Front Left | Fits Models with Intermediate Shaft; CV Axle Shaft |
| 2014 | Chrysler | 200 | — | Automatic | 2.4L | L4 | Front Left | Fits Models with Intermediate Shaft; CV Axle Shaft |
| 2014 | Dodge | Avenger | FWD | — | 2.4L | L4 | Front Left | Fits Models with Intermediate Shaft; CV Axle Shaft |
| 2014 | Dodge | Journey | FWD | — | 2.4L | L4 | Front Left | Fits Models with Intermediate Shaft; CV Axle Shaft |
| 2013 | Chrysler | 200 | — | Automatic | 2.4L | L4 | Front Left | Fits Models with Intermediate Shaft; CV Axle Shaft |
| 2013 | Dodge | Avenger | FWD | — | 2.4L | L4 | Front Left | Fits Models with Intermediate Shaft; CV Axle Shaft |
| 2013 | Dodge | Journey | FWD | — | 2.4L | L4 | Front Left | Fits Models with Intermediate Shaft; CV Axle Shaft |
| 2012 | Chrysler | 200 | — | Automatic | 2.4L | L4 | Front Left | Fits Models with Intermediate Shaft; CV Axle Shaft |
| 2012 | Dodge | Avenger | FWD | — | 2.4L | L4 | Front Left | Fits Models with Intermediate Shaft; CV Axle Shaft |
| 2012 | Dodge | Journey | FWD | — | 2.4L | L4 | Front Left | Fits Models with Intermediate Shaft; CV Axle Shaft |
| 2011 | Chrysler | 200 | — | Automatic | 2.4L | L4 | Front Left | Fits Models with Intermediate Shaft; CV Axle Shaft |
| 2011 | Dodge | Avenger | FWD | — | 2.4L | L4 | Front Left | Fits Models with Intermediate Shaft; CV Axle Shaft |
| 2011 | Dodge | Journey | FWD | — | 2.4L | L4 | Front Left | Fits Models with Intermediate Shaft; CV Axle Shaft |
| 2010 | Chrysler | Sebring | — | — | 2.7L | V6 | Front Left | Fits Models with Intermediate Shaft; CV Axle Shaft |
| 2010 | Chrysler | Sebring | — | — | 2.4L | L4 | Front Left | Fits Models with Intermediate Shaft; CV Axle Shaft |
| 2010 | Dodge | Avenger | — | — | 2.7L | V6 | Front Left | Fits Models with Intermediate Shaft; CV Axle Shaft |
| 2010 | Dodge | Avenger | — | — | 2.4L | L4 | Front Left | Fits Models with Intermediate Shaft; CV Axle Shaft |
| 2009 | Chrysler | Sebring | — | — | 2.7L | V6 | Front Left | Fits Models with Intermediate Shaft; CV Axle Shaft |
| 2009 | Chrysler | Sebring | — | — | 2.4L | L4 | Front Left | Fits Models with Intermediate Shaft; CV Axle Shaft |
| 2009 | Dodge | Avenger | — | — | 2.7L | V6 | Front Left | Fits Models with Intermediate Shaft; CV Axle Shaft |
| 2009 | Dodge | Avenger | — | — | 2.4L | L4 | Front Left | Fits Models with Intermediate Shaft; CV Axle Shaft |
| 2008 | Chrysler | Sebring | — | — | 2.7L | V6 | Front Left | Fits Models with Intermediate Shaft; CV Axle Shaft |
| 2008 | Chrysler | Sebring | — | — | 2.4L | L4 | Front Left | Fits Models with Intermediate Shaft; CV Axle Shaft |
| 2008 | Dodge | Avenger | — | — | 2.7L | V6 | Front Left | Fits Models with Intermediate Shaft; CV Axle Shaft |
| 2008 | Dodge | Avenger | — | — | 2.4L | L4 | Front Left | Fits Models with Intermediate Shaft; CV Axle Shaft |
| 2007 | Chrysler | Sebring | — | — | 2.7L | V6 | Front Left | Fits Models with Intermediate Shaft; CV Axle Shaft |
| 2007 | Chrysler | Sebring | — | — | 2.4L | L4 | Front Left | Fits Models with Intermediate Shaft; CV Axle Shaft |
