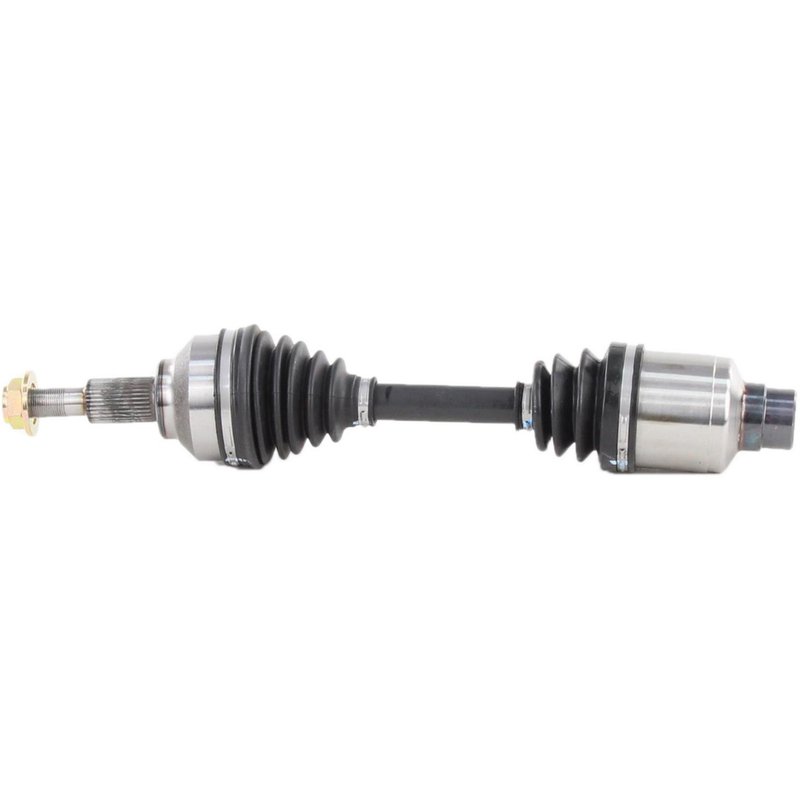

TrakMotive CH-8116 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft CH-8116

The TrakMotive CV Axle Shaft CH-8116 is designed for reliable driveline performance in select Chrysler and Dodge vehicles. Engineered to meet OEM specifications, this new CV axle shaft ensures proper fit and function for models including the 200, Avenger, Journey, and Sebring.

• Compatible with Chrysler and Dodge 200, Avenger, Journey, and Sebring models
• Includes axle nut with stake locking type for secure installation
• Neoprene boot material for enhanced durability and protection
• Female inboard joint with 28 splines and conventional outboard joint with 32 splines
• Overall compressed length of 20.63 inches (524 mm) for precise fitment
• Hex axle nut head type with M22*1.5 thread size

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle components designed to restore driveline integrity. This line emphasizes exact fitment and durability, featuring neoprene boots and conventional joint types to maintain smooth power transfer and protect against contaminants. The CH-8116 model exemplifies these standards with its female inboard joint and included axle nut, ensuring a complete replacement solution.

Technical Specifications and Features

This CV axle shaft features a female inboard joint connection style with 28 splines, paired with a conventional outboard joint having 32 splines. The neoprene boot material offers resistance to wear and environmental factors, extending the service life of the axle. The included axle nut is a hex head type measuring 1 1/4 inches (31.8 mm) across flats, with a height of 4/5 inch (20 mm) and a length of 1 1/3 inch (34.4 mm). It uses a stake locking mechanism and an M22*1.5 thread size to ensure secure fastening during installation. The overall compressed length of 20.63 inches (524 mm) matches OEM dimensions for proper driveline alignment.

Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts in Chrysler 200, Avenger, Journey, and Sebring
• Resolves issues related to axle shaft vibration or clicking noises during turns
• Addresses grease leakage caused by torn or degraded CV boots
• Eliminates driveline binding or uneven power transfer due to joint wear
• Prevents axle nut loosening with included stake locking axle nut

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before removing the old axle shaft. Verify the spline counts and joint types match the replacement part. Use the included hex axle nut with the specified M22*1.5 thread size and stake locking method to secure the axle shaft. Inspect the axle shaft boots for proper seating and avoid over-tightening to prevent damage. It is recommended to check wheel alignment after installation to maintain driveline performance.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft CH-8116 is a new, not remanufactured, component manufactured to meet or exceed OEM standards. The neoprene boot and conventional joint design contribute to long-lasting durability. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliable operation in compatible Chrysler and Dodge vehicles.
