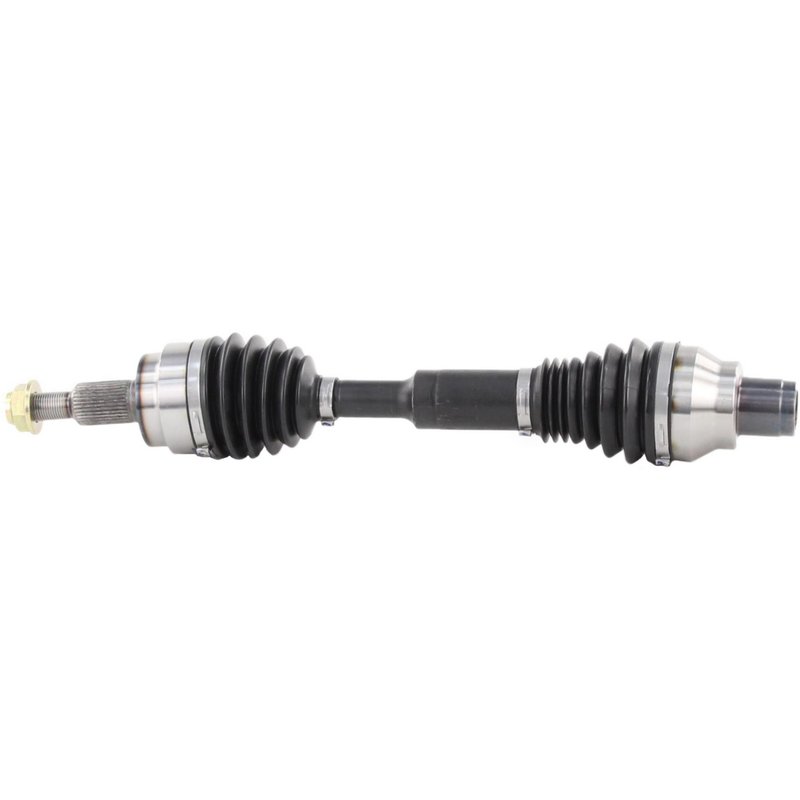

TrakMotive CH-8119XTT CV Axle Shaft - Front Left or Front Right
TrakMotive Extended Travel CV Axle Shaft Overview
The TrakMotive Extended Travel CV Axle Shaft CH-8119XTT is engineered for Dodge Ram 1500 models requiring durable driveline components. Designed to provide reliable performance, this CV axle shaft supports extended suspension travel while maintaining proper fit and function.
- Compatible with Dodge Ram 1500 trucks
- Includes self-locking axle nut with hex head design
- Boot constructed from durable TPEE material for enhanced flexibility
- Inboard joint features a female spline connection with 29 splines
- Outboard joint uses a conventional spline connection with 33 splines
- Overall compressed length of 23.75 inches (603 mm)
- New, not remanufactured, ensuring original quality
Extended Travel CV Axle Shaft Product Line Details
The Extended Travel CV Axle Shaft line by TrakMotive is specifically designed to accommodate vehicles with modified or lifted suspensions that require longer axle shafts. This product line ensures that the CV axle shaft maintains proper engagement and articulation during extended suspension travel, reducing the risk of premature wear or failure. The CH-8119XTT model fits within this line, providing a reliable solution for Dodge Ram 1500 owners seeking enhanced driveline durability.
Technical Specifications and Features
The CH-8119XTT axle shaft includes a self-locking axle nut with a hex head type measuring 1.4 inches (35.5 mm) across flats and a height of 0.91 inches (23 mm). The axle nut length is 1.61 inches (40.99 mm), and it features an M24x2 thread size. The boot is made from TPEE, a thermoplastic elastomer known for its resistance to wear and environmental factors. The inboard joint is a female spline type with 29 splines, while the outboard joint is a conventional spline with 33 splines. The overall compressed length of the shaft is 23.75 inches (603 mm), ensuring proper fitment and function in compatible Dodge Ram 1500 models.
Applications and Problem Solving
- Replacement for worn or damaged CV axle shafts on Dodge Ram 1500
- Supports vehicles with extended suspension travel or lift kits
- Addresses issues related to axle shaft binding or premature joint wear
- Restores driveline stability and smooth power transfer
- Prevents axle nut loosening with self-locking design
Installation Notes and Tips
When installing the TrakMotive CH-8119XTT CV axle shaft, ensure compatibility with your Dodge Ram 1500 model year and suspension setup. Use the included self-locking axle nut and torque it to manufacturer specifications to maintain secure fitment. Inspect the TPEE boot for any damage during installation to prevent contamination. Proper spline engagement on both inboard and outboard joints is critical for optimal performance.
Quality Assurance and Warranty
This CV axle shaft is new and manufactured to meet or exceed OEM standards for fit and durability. The self-locking axle nut and high-quality TPEE boot contribute to long service life. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliable operation in Dodge Ram 1500 applications.
| Brand | TrakMotive |
| Part Number | CH-8119XTT |
| Position | Extended Travel CV Axle Shaft, Front Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.91 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.4 |
| Axle Nut Hex Size (mm) | 35.5 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.61 |
| Axle Nut Length (mm) | 40.99 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M24*2 |
| Boot Material | TPEE |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 29 |
| Number Of Outboard Splines | 33 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 23.75 |
| Overall Compressed Length (mm) | 603 |
This part fits 12 vehicles. Search below:
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2011 | Ram | 1500 | 4WD | Front Right | Not for use with lifted suspensions.; For Extreme Articulation; Chrysler 8.25" ring gear; Inner boot may contact control arm when used with 2-3 inch leveling kits; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2011 | Ram | 1500 | 4WD | Front Left | Not for use with lifted suspensions.; For Extreme Articulation; Chrysler 8.25" ring gear; Inner boot may contact control arm when used with 2-3 inch leveling kits; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2010 | Dodge | Ram 1500 | 4WD | Front Right | Not for use with lifted suspensions.; Exc. Mega Cab; For Extreme Articulation; Chrysler 8.25" ring gear; Inner boot may contact control arm when used with 2-3 inch leveling kits; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2010 | Dodge | Ram 1500 | 4WD | Front Left | Not for use with lifted suspensions.; Exc. Mega Cab; For Extreme Articulation; Chrysler 8.25" ring gear; Inner boot may contact control arm when used with 2-3 inch leveling kits; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2009 | Dodge | Ram 1500 | 4WD | Front Right | Not for use with lifted suspensions.; Exc. Mega Cab; For Extreme Articulation; Chrysler 8.25" ring gear; Inner boot may contact control arm when used with 2-3 inch leveling kits; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2009 | Dodge | Ram 1500 | 4WD | Front Left | Not for use with lifted suspensions.; Exc. Mega Cab; For Extreme Articulation; Chrysler 8.25" ring gear; Inner boot may contact control arm when used with 2-3 inch leveling kits; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2008 | Dodge | Ram 1500 | 4WD | Front Right | Not for use with lifted suspensions.; Exc. Mega Cab; For Extreme Articulation; Chrysler 8.25" ring gear; Inner boot may contact control arm when used with 2-3 inch leveling kits; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2008 | Dodge | Ram 1500 | 4WD | Front Left | Not for use with lifted suspensions.; Exc. Mega Cab; For Extreme Articulation; Chrysler 8.25" ring gear; Inner boot may contact control arm when used with 2-3 inch leveling kits; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2007 | Dodge | Ram 1500 | 4WD | Front Right | Not for use with lifted suspensions.; Exc. Mega Cab; For Extreme Articulation; Chrysler 8.25" ring gear; Inner boot may contact control arm when used with 2-3 inch leveling kits; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2007 | Dodge | Ram 1500 | 4WD | Front Left | Not for use with lifted suspensions.; Exc. Mega Cab; For Extreme Articulation; Chrysler 8.25" ring gear; Inner boot may contact control arm when used with 2-3 inch leveling kits; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2006 | Dodge | Ram 1500 | 4WD | Front Right | Not for use with lifted suspensions.; Exc. Mega Cab; For Extreme Articulation; Chrysler 8.25" ring gear; Inner boot may contact control arm when used with 2-3 inch leveling kits; Always Replace in Pairs; Extended Travel CV Axle Shaft |
| 2006 | Dodge | Ram 1500 | 4WD | Front Left | Not for use with lifted suspensions.; Exc. Mega Cab; For Extreme Articulation; Chrysler 8.25" ring gear; Inner boot may contact control arm when used with 2-3 inch leveling kits; Always Replace in Pairs; Extended Travel CV Axle Shaft |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
