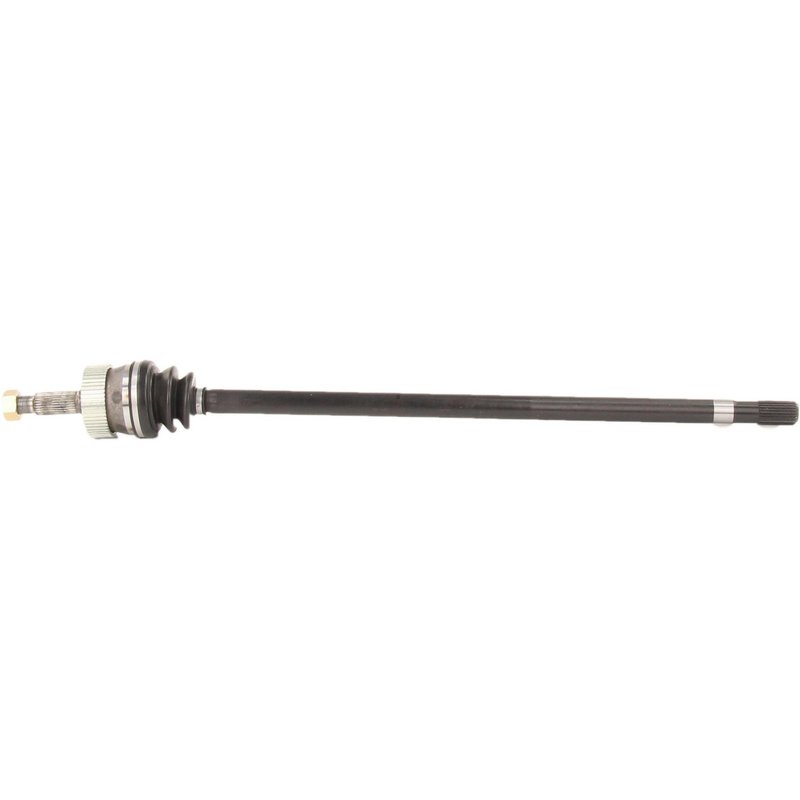

TrakMotive CH-8221 CV Axle Shaft - Front Right

Reliable CV Axle Shaft for Jeep Cherokee and Grand Cherokee

The TrakMotive CV Axle Shaft CH-8221 is engineered to provide dependable driveline performance for Jeep Cherokee, Comanche, Grand Cherokee, and Wagoneer models. Designed with precision, this new axle shaft ensures smooth power transfer and durability under various driving conditions.

• Compatible with Jeep Cherokee, Comanche, Grand Cherokee, and Wagoneer
• Includes ABS tone ring with 54 toothed ring teeth for accurate wheel speed sensing
• Neoprene boot material for enhanced protection against contaminants
• Comes with a standard locking hex axle nut (M24*1.5 thread size)
• Overall compressed length of 38.5 inches (978 mm) for proper fitment
• 27 inboard and 27 outboard splines for secure shaft connection
• Conventional outboard joint and shaft connection style

TrakMotive CV Axle Shaft Product Line Overview

The TrakMotive CV Axle Shaft line focuses on delivering reliable constant velocity components designed to meet OEM specifications. This product line emphasizes quality materials and precise engineering, such as the inclusion of ABS tone rings and durable neoprene boots, to ensure consistent driveline performance and longevity. The CH-8221 model exemplifies these standards, providing a direct replacement for select Jeep models.

Technical Details and Features

The CH-8221 CV Axle Shaft features a 54-tooth ABS ring with a toothed design, which is included to maintain accurate ABS sensor readings. The axle nut included is a hex head type with a 1 3/8 inch (34.64 mm) hex size and a height of 5/7 inch (18 mm), featuring a standard locking mechanism and thread size M24*1.5. The neoprene boot material offers resistance to wear and environmental factors, protecting the joint from dirt and moisture. Both inboard and outboard splines number 27, ensuring a secure and precise fit. The overall compressed length of 38.5 inches (978 mm) matches factory specifications for proper installation.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Jeep Cherokee, Comanche, Grand Cherokee, and Wagoneer
• Restores proper ABS sensor function with included ABS tone ring
• Eliminates axle vibration and noise caused by joint wear or boot failure
• Prevents grease leakage and contamination with durable neoprene boot
• Ensures secure wheel connection with included axle nut and proper spline count

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft CH-8221, verify compatibility with your specific Jeep model and year. Use the included hex axle nut with the specified M24*1.5 thread size and torque to manufacturer specifications. Inspect the axle boot for any damage during installation and ensure the ABS tone ring is properly aligned for accurate sensor readings. Proper lubrication and clean installation surfaces will help maintain driveline integrity.

Quality Assurance and Warranty

This CV Axle Shaft is a new, not remanufactured, component built to meet or exceed OEM standards. TrakMotive products undergo rigorous quality control to ensure durability and performance. While specific warranty details are not provided here, TrakMotive typically offers coverage against manufacturing defects. Consult product documentation or your supplier for warranty terms.
