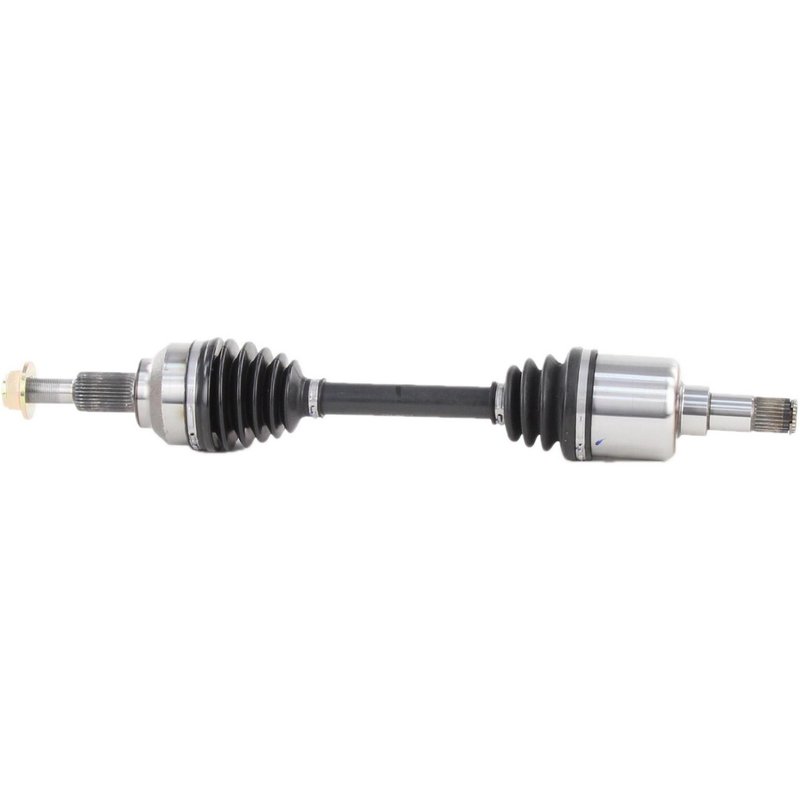

TrakMotive CH-8224 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft CH-8224 for Dodge Caliber

The TrakMotive CV Axle Shaft CH-8224 is designed specifically for Dodge Caliber models, providing reliable driveline performance. This new CV axle shaft ensures proper power transfer from the transmission to the wheels, maintaining vehicle stability and handling.

• Compatible with Dodge Caliber vehicles
• New, not remanufactured, for consistent quality
• Includes self-locking axle nut with hex head design
• Neoprene boot material for enhanced durability
• Overall compressed length of 24.65 inches (626 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering dependable CV components engineered for precise fitment and durability. The CH-8224 model features a conventional outboard joint and a male inboard joint, designed to match the original equipment specifications for the Dodge Caliber. This line emphasizes quality materials such as neoprene boots and includes necessary hardware like the self-locking axle nut to simplify installation and ensure secure assembly.

Technical Specifications and Features

The CH-8224 CV axle shaft includes a hex head axle nut measuring 1 1/4 inches (31.8 mm) across flats, with a height of 5/6 inches (21.2 mm) and a length of 1 1/3 inches (34.4 mm). The axle nut features a self-locking design with an M22x1.5 thread size, ensuring secure fastening during operation. The shaft has 26 inboard splines and 32 outboard splines, with a male inboard joint and conventional outboard joint connection styles. The neoprene boot material offers resistance to wear and environmental factors, contributing to the longevity of the CV axle shaft.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Dodge Caliber vehicles
• Addresses issues such as axle vibration or clicking noises during turns
• Resolves grease leakage caused by torn or degraded CV boots
• Eliminates axle shaft play or looseness affecting vehicle handling
• Restores proper driveline function after axle shaft failure

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft CH-8224, ensure the axle nut is torqued to manufacturer specifications to maintain the self-locking feature. Inspect the axle splines for proper engagement and verify the neoprene boot is seated correctly to prevent contamination. This CV axle shaft is designed for direct replacement on Dodge Caliber models, facilitating a straightforward installation process.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft CH-8224 is a new component manufactured to meet OEM standards for fit and function. It includes a self-locking axle nut and durable neoprene boot to enhance reliability. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure consistent performance in driveline applications.
