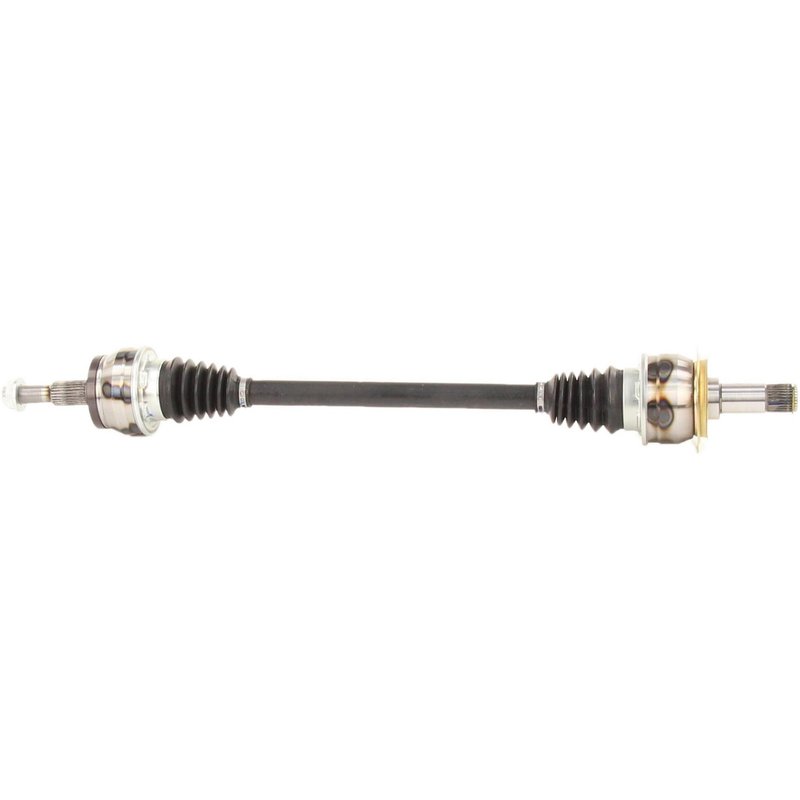

TrakMotive CH-8237 CV Axle Shaft - Rear Right

Overview of TrakMotive CV Axle Shaft CH-8237

The TrakMotive CV Axle Shaft CH-8237 is designed for reliable driveline performance in Chrysler and Dodge vehicles. This new CV axle shaft is engineered to meet the specific requirements of models like the Chrysler 300, Dodge Challenger, Charger, and Magnum.

• Brand: TrakMotive
• Brand Line: CV Axle Shaft
• Part Number: CH-8237
• Compatible with Chrysler 300, Dodge Challenger, Charger, and Magnum
• Axle Nut Included with Self-locking Hex Head
• Neoprene Boot Material for Durability
• Overall Compressed Length: 32.32 inches (821 mm)
• Inboard Joint Type: Male with 30 Splines
• Outboard Joint Type: Conventional with 27 Splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise fit and reliable driveline components for a range of vehicles. The CH-8237 model features a neoprene boot for enhanced resistance to wear and environmental factors. This line emphasizes compatibility and durability, ensuring that each axle shaft meets OEM specifications for Chrysler and Dodge applications.

Technical Specifications and Features

This CV axle shaft includes a self-locking axle nut with a hex head measuring 1 1/4 inches (31.8 mm) across flats and a height of 3/4 inch (18.9 mm). The axle nut length is 1 1/3 inches (34.4 mm) with an M22*1.5 thread size. The inboard joint is a male type with 30 splines, while the outboard joint is conventional with 27 splines, providing secure shaft connections. The neoprene boot material offers flexibility and protection against contaminants, extending the service life of the axle shaft. The overall compressed length of 32.32 inches (821 mm) ensures proper fitment in the specified vehicle models.

Applications and Common Issues Addressed

• Replacement for worn or damaged CV axle shafts in Chrysler 300 and Dodge Charger
• Eliminates clicking or popping noises during turns caused by joint wear
• Resolves vibration or shuddering issues related to axle imbalance
• Prevents grease leaks from torn or degraded CV boots
• Restores driveline stability and smooth power transfer to wheels

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft CH-8237, ensure the axle nut is torqued to manufacturer specifications to maintain the self-locking feature. Inspect the axle housing and surrounding components for wear or damage before installation. The neoprene boot should be checked for proper seating to prevent contamination. This part is designed for direct replacement on compatible Chrysler and Dodge models, simplifying the installation process.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft CH-8237 is a new, not remanufactured, component built to meet or exceed OEM standards. It includes a self-locking axle nut to enhance safety and reliability. While specific warranty details are not provided, TrakMotive products typically undergo rigorous quality control to ensure durability and performance in demanding automotive applications.
