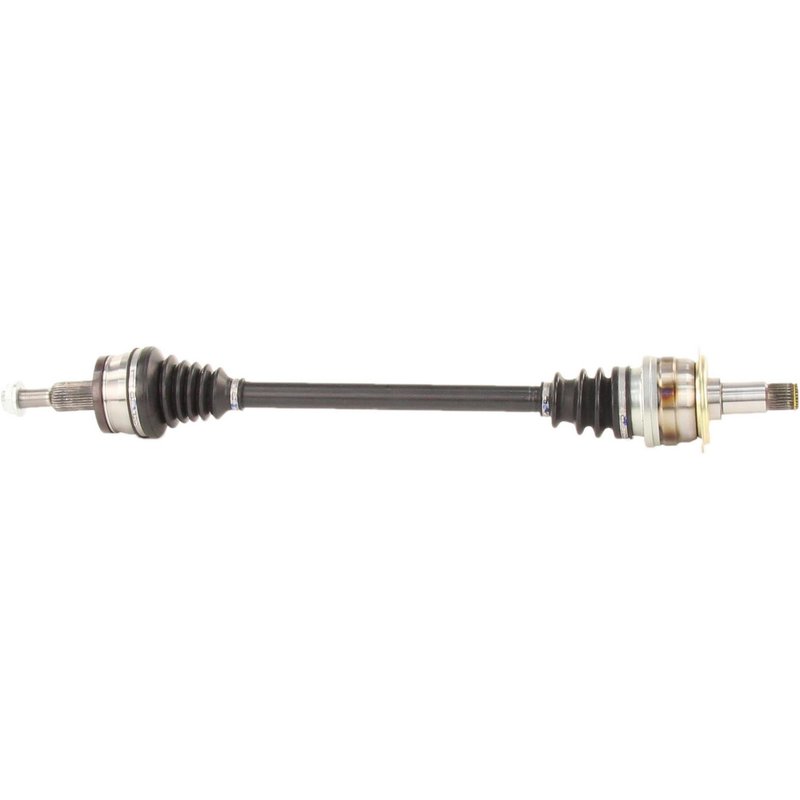

TrakMotive CH-8240 CV Axle Shaft - Rear Left
| Brand | TrakMotive CH-8240 |
|---|---|
| Position | Rear Left |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Magnetic |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 3/4 |
| Axle Nut Height (mm) | 18.9 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Self-lock |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 32 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 32.6 |
| Overall Compressed Length (mm) | 828 |
| Product line | CV Axle Shaft |
| Fits | Chrysler and Dodge · 16 vehicles |
New shaft assembly. Built as a fresh replacement, not remanufactured.
Neoprene boot. Helps resist wear while keeping the joint protected.
ABS tone ring included. Ready for applications that use ABS sensing.
Cross-references TrakMotive CH-8240, 60-3681 and 4726101AD for the same application. See all 7.
CV Axle Shaft for Rear Left Applications
TrakMotive CH-8240 is a new CV axle shaft for rear left driveline service on select Chrysler 300 and Dodge Charger models. It is built with a neoprene boot, a magnetic ABS tone ring, and the correct spline counts for direct replacement use on listed applications.
Fits 2009-2014 Chrysler 300, rear left. Fits 2009-2014 Dodge Charger, rear left. Compare spline counts and diameter to the original axle before ordering.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: CH-8240
- New axle shaft assembly
- Rear left position
- Inboard joint type: male
- Outboard joint type: conventional
- Boot material: neoprene
- ABS tone ring included with 48 magnetic teeth
- Axle nut included with self-lock design
- Axle nut thread size: M22 x 1.5
- Overall compressed length: 32.6 in. (828 mm)
- 27 inboard splines and 32 outboard splines
Product Details
TrakMotive CH-8240 is a CV axle shaft for rear left driveline replacement on 2009-2014 Chrysler 300 and 2009-2014 Dodge Charger models. The axle uses a male inboard connection, a conventional outboard joint, and a magnetic ABS ring with 48 teeth for applications that require wheel speed signal integration. TrakMotive identifies this axle as a new part, and the manufacturer notes that ABS axles fit non-ABS applications unless otherwise noted. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Problems This Part Can Address
- Clicking or popping from a worn CV joint
- Vibration during acceleration from axle wear
- Grease leakage from a damaged boot
- ABS warning concerns tied to a failed tone ring or sensor signal issue
- Driveline noise from spline or joint wear
Installation Notes
Verify rear left fitment against the vehicle’s original axle before installation, including spline count, diameter, and axle length. Confirm axle nut thread size and locking style during service, and inspect related seals, hubs, and suspension components for wear before reassembly. For 2009-2014 Chrysler 300 and Dodge Charger rear left applications, matching the original configuration is important for proper fit and operation.
Quality Assurance
TrakMotive states this CV axle shaft is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:1007 and TS 16949:2009 certification, supporting controlled production and quality management for CH-8240.
| Year | Make | Model | Drive Type | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2014 | Chrysler | 300 | AWD | 5.7L | V8 | — | Rear Left | Compare spline counts and diameter to original; CV Axle Shaft |
| 2014 | Dodge | Charger | AWD | 5.7L | V8 | — | Rear Left | Compare spline counts and diameter to original; CV Axle Shaft |
| 2013 | Chrysler | 300 | AWD | 5.7L | V8 | — | Rear Left | Compare spline counts and diameter to original; CV Axle Shaft |
| 2013 | Dodge | Charger | AWD | 5.7L | V8 | — | Rear Left | Compare spline counts and diameter to original; CV Axle Shaft |
| 2012 | Chrysler | 300 | AWD | 5.7L | V8 | FLEX | Rear Left | Compare spline counts and diameter to original; CV Axle Shaft |
| 2012 | Dodge | Charger | AWD | 5.7L | V8 | FLEX | Rear Left | Compare spline counts and diameter to original; CV Axle Shaft |
| 2011 | Chrysler | 300 | AWD | 5.7L | V8 | FLEX | Rear Left | Compare spline counts and diameter to original; CV Axle Shaft |
| 2011 | Dodge | Charger | AWD | 5.7L | V8 | FLEX | Rear Left | Compare spline counts and diameter to original; CV Axle Shaft |
| 2010 | Chrysler | 300 | AWD | 5.7L | V8 | — | Rear Left | Compare spline counts and diameter to original; CV Axle Shaft |
| 2010 | Chrysler | 300 | AWD | 3.5L | V6 | — | Rear Left | Compare spline counts and diameter to original; CV Axle Shaft |
| 2010 | Dodge | Charger | AWD | 5.7L | V8 | — | Rear Left | Compare spline counts and diameter to original; CV Axle Shaft |
| 2010 | Dodge | Charger | AWD | 3.5L | V6 | — | Rear Left | Compare spline counts and diameter to original; CV Axle Shaft |
| 2009 | Chrysler | 300 | AWD | 5.7L | V8 | — | Rear Left | Compare spline counts and diameter to original; CV Axle Shaft |
| 2009 | Chrysler | 300 | AWD | 3.5L | V6 | — | Rear Left | Compare spline counts and diameter to original; CV Axle Shaft |
| 2009 | Dodge | Charger | AWD | 5.7L | V8 | — | Rear Left | Compare spline counts and diameter to original; CV Axle Shaft |
| 2009 | Dodge | Charger | AWD | 3.5L | V6 | — | Rear Left | Compare spline counts and diameter to original; CV Axle Shaft |
