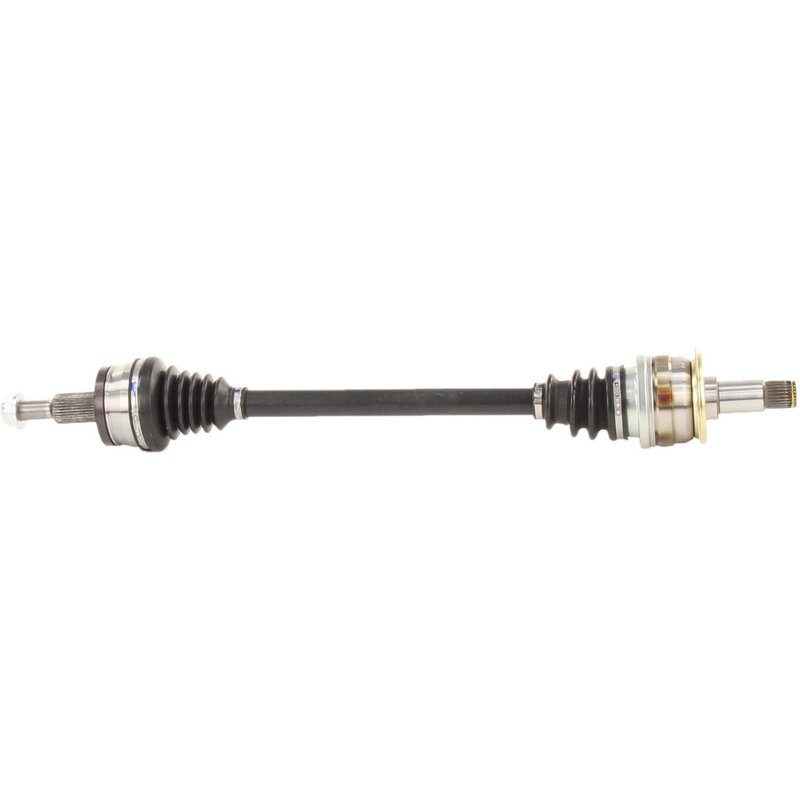

TrakMotive CH-8242 CV Axle Shaft - Rear Right

Overview of the TrakMotive CV Axle Shaft CH-8242

The TrakMotive CV Axle Shaft CH-8242 is engineered for reliable driveline performance in Chrysler and Dodge vehicles, including the 300, Challenger, and Charger models. Designed to meet OEM specifications, this new CV axle shaft ensures consistent power transfer and durability.

• Compatible with Chrysler 300, Dodge Challenger, and Dodge Charger
• Includes magnetic ABS tone ring with 48 teeth for accurate wheel speed sensing
• Neoprene boot material for enhanced protection against contaminants
• Self-locking hex axle nut included (M22*1.5 thread size)
• Overall compressed length of 32.28 inches (820 mm)
• Inboard joint with 27 male splines and outboard conventional joint with 32 splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise fitment and durability for driveline and axle components. This line emphasizes quality materials such as neoprene boots and magnetic ABS tone rings to maintain vehicle safety systems and driveline integrity. The CH-8242 model exemplifies these standards with its comprehensive feature set tailored for specific Chrysler and Dodge applications.

Technical Specifications and Features

This CV axle shaft features a magnetic ABS tone ring with 48 teeth, which is included to ensure proper ABS sensor function. The neoprene boot material provides resistance to wear and environmental damage, extending the life of the joint. The axle nut is a self-locking hex type, measuring 1 1/4 inches across the flats and 3/4 inch in height, designed to secure the axle firmly in place. The inboard joint uses a male connection style with 27 splines, while the outboard joint is conventional with 32 splines, ensuring compatibility with the specified vehicle models. The overall compressed length of 32.28 inches (820 mm) matches OEM dimensions for proper fitment.

Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Chrysler 300, Dodge Challenger, and Charger
• Restores proper ABS sensor function with included magnetic tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage and contamination with durable neoprene boots
• Secures axle assembly with included self-locking axle nut

Installation Notes and Tips

Ensure the vehicle is safely supported before removing the old axle shaft. Verify the spline counts and connection styles match the replacement part. Use the included self-locking axle nut to secure the axle, tightening to manufacturer torque specifications. Inspect the ABS sensor and wiring during installation to confirm proper alignment with the magnetic tone ring. Lubricate splines as recommended to facilitate smooth installation and prevent premature wear.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft CH-8242 is a new, not remanufactured, component built to meet or exceed OEM standards. It includes a magnetic ABS tone ring and a self-locking axle nut to maintain vehicle safety and driveline integrity. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliable performance in compatible Chrysler and Dodge vehicles.
