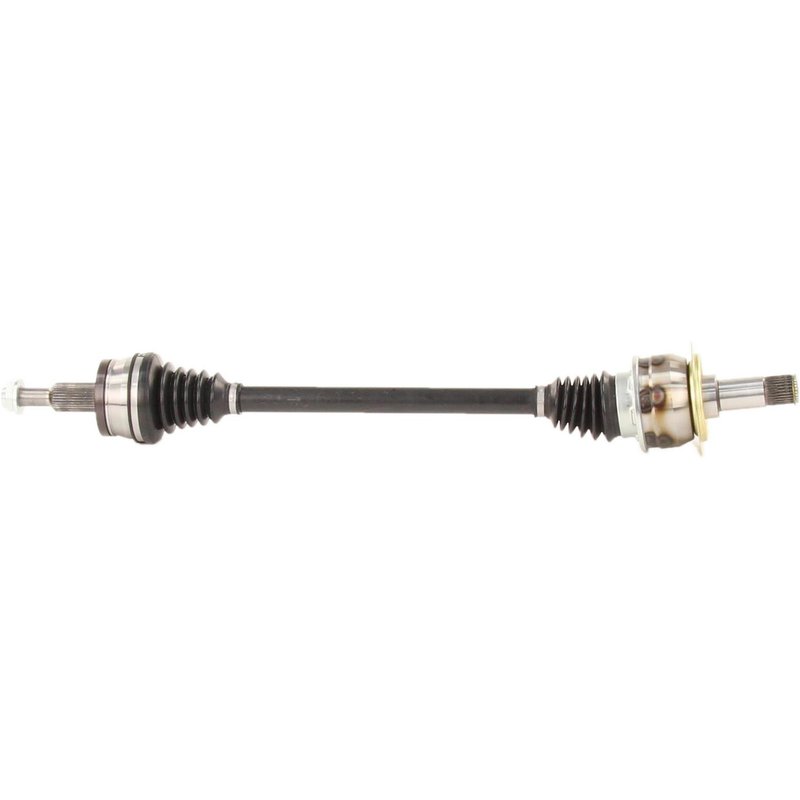

TrakMotive CH-8244 CV Axle Shaft - Rear Right

Overview of the TrakMotive CV Axle Shaft CH-8244

The TrakMotive CV Axle Shaft CH-8244 is engineered for reliable driveline performance in Chrysler and Dodge vehicles, including the 300, Challenger, and Charger models. Designed to meet OEM specifications, this new axle shaft ensures consistent power transfer and durability.

• Compatible with Chrysler 300, Dodge Challenger, and Dodge Charger
• Includes magnetic ABS tone ring with 48 teeth for accurate wheel speed sensing
• Neoprene boot material for enhanced protection against contaminants
• Self-locking hex axle nut (M22*1.5 thread size) included for secure installation
• Overall compressed length of 32.44 inches (824 mm) for precise fitment
• Inboard joint with 30 splines and male connection style
• Outboard conventional joint with 32 splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle shafts designed to restore driveline integrity. This line emphasizes compatibility with specific vehicle makes and models, ensuring that each axle shaft meets exact fitment and performance requirements. The CH-8244 model exemplifies this approach by incorporating features such as a magnetic ABS tone ring and neoprene boots to maintain optimal operation under various driving conditions.

Technical Specifications and Features

This CV axle shaft features a magnetic ABS tone ring with 48 teeth, which is included to provide precise wheel speed data for ABS systems. The axle nut is a self-locking type with a hex head measuring 1 1/4 inches (31.8 mm) across flats and a height of 3/4 inch (18.9 mm), ensuring a secure fit. The axle nut length is 1 1/3 inches (34.4 mm), and the thread size is M22*1.5. The neoprene boot material offers resistance to wear and environmental damage, extending the life of the joint. The inboard joint uses a male connection style with 30 splines, while the outboard joint is conventional with 32 splines, providing a reliable connection to the drivetrain components. The overall compressed length of 32.44 inches (824 mm) matches OEM specifications for proper installation.

Applications and Problem Solving

• Replaces worn or damaged CV axle shafts in Chrysler 300, Dodge Challenger, and Dodge Charger vehicles
• Restores proper ABS sensor function with included magnetic tone ring
• Eliminates axle vibration and noise caused by joint wear or boot failure
• Prevents grease leakage and contamination with durable neoprene boots
• Ensures secure wheel attachment with included self-locking axle nut

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft CH-8244, verify compatibility with your specific Chrysler or Dodge model and year. Use the included self-locking axle nut to secure the shaft, tightening to manufacturer torque specifications. Inspect the ABS tone ring alignment to ensure proper sensor operation. Avoid damaging the neoprene boot during installation to maintain joint protection. It is recommended to replace axle nuts and related hardware as needed to ensure a secure fit.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft CH-8244 is a new, not remanufactured, component designed to meet or exceed OEM standards. It includes a magnetic ABS tone ring and a self-locking axle nut to maintain system integrity. While specific warranty details are not provided, TrakMotive products typically undergo rigorous quality control to ensure durability and fitment accuracy for Chrysler and Dodge vehicles.
