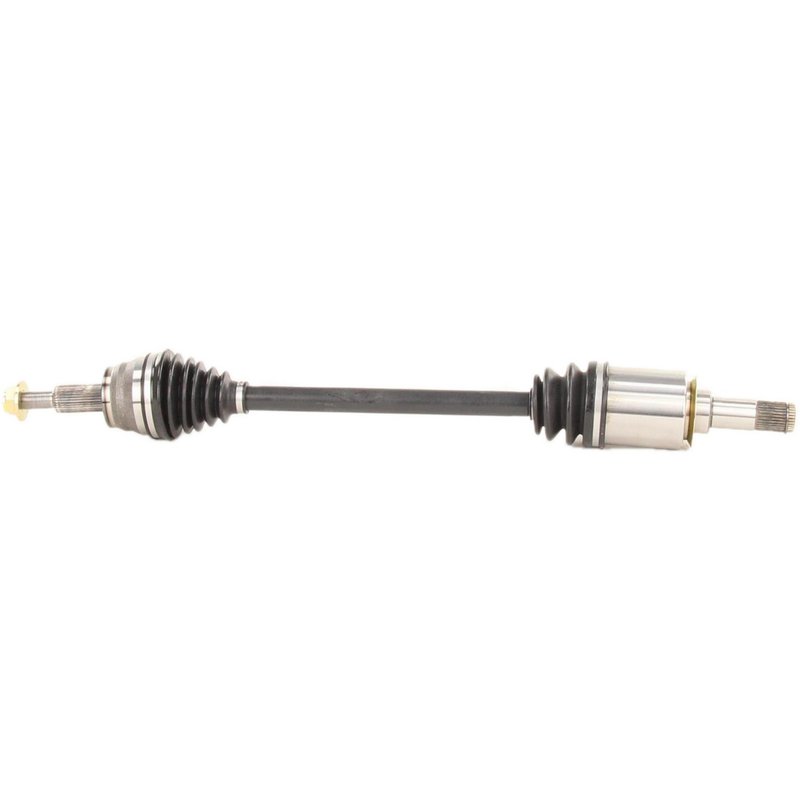

TrakMotive CH-8250 CV Axle Shaft - Rear Left or Rear Right
OE Quality 60-Day Returns
TrakMotive
 CV Axle Shaft

TrakMotive CH-8250 CV Axle Shaft - Rear Left or Rear Right

Brand TrakMotive CH-8250
Position Rear Left
Abs Tone Ring Included No
Axle Nut Head Type Hex
Axle Nut Height (in) 5/6
Axle Nut Height (mm) 21.2
Axle Nut Hex Size (in) 1 1/4
Axle Nut Hex Size (mm) 31.8
Axle Nut Included Yes
Axle Nut Length (in) 1 1/3
Axle Nut Length (mm) 34.4
Axle Nut Locking Type Self-Lock
Axle Nut Thread Size M22*1.5
Boot Material Neoprene
Inboard Joint Type Male
Inboard Shaft Connection Style Male
New Or Remanufactured New
Number Of Inboard Splines 32
Number Of Outboard Splines 32
Outboard Joint Type Conventional
Outboard Shaft Connection Style Conventional
Overall Compressed Length (in) 33.74
Overall Compressed Length (mm) 857
Product line CV Axle Shaft
Fits Dodge and Jeep · 73 vehicles

New axle shaft. Built with neoprene boots and a conventional outboard joint.

OE-style fitment. Includes a self-locking axle nut for straightforward installation.

Certified quality. Made by an ISO 9001 and TS 16949 certified company.

Cross-references TrakMotive CH-8250 for the same application. See all 1.

$124.92Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $124.92
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all CV Axle Shaft options

Rear CV Axle Shaft for Durango and Grand Cherokee

TrakMotive CH-8250 is a new rear CV axle shaft for select Dodge Durango and Jeep Grand Cherokee applications. It is built for rear, rear left, and rear right positions where the vehicle uses a 230mm ring gear or carrier configuration, with coverage across 2011-2022 model years.

Key Features

  • Brand: TrakMotive CV Axle Shaft
  • Part number: CH-8250
  • New replacement axle shaft, not remanufactured
  • Boot material: neoprene
  • Inboard joint type: male
  • Outboard joint type: conventional
  • 32 inboard splines and 32 outboard splines
  • Axle nut included with self-locking design
  • Axle nut thread size: M22 x 1.5
  • No ABS tone ring included
  • Overall compressed length: 33.74 in. (857 mm)

Product Details

This TrakMotive CV axle shaft is engineered for rear driveline service on Dodge Durango and Jeep Grand Cherokee models that use the listed 230mm differential or carrier setups. The CH-8250 uses a neoprene boot, male inboard connection, and conventional outboard joint design to match the specified rear axle applications. TrakMotive identifies this axle as a standard-duty replacement and notes that ABS axles fit non-ABS applications unless otherwise noted. The part number CH-8250 is also the interchange reference for this application.

Compatible vehicle coverage includes Fits 2020-2022 Dodge Durango, rear; Fits 2015-2019 Dodge Durango, rear right; Fits 2015-2019 Dodge Durango, rear left; Fits 2011-2014 Dodge Durango, rear right; Fits 2011-2014 Dodge Durango, rear left; Fits 2020-2022 Jeep Grand Cherokee, rear; Fits 2017-2019 Jeep Grand Cherokee, rear right; Fits 2017-2019 Jeep Grand Cherokee, rear left; Fits 2014-2016 Jeep Grand Cherokee, rear right; Fits 2014-2016 Jeep Grand Cherokee, rear left; Fits 2013 Jeep Grand Cherokee, rear right; Fits 2013 Jeep Grand Cherokee, rear left; Fits 2012 Jeep Grand Cherokee, rear right; Fits 2012 Jeep Grand Cherokee, rear left; and Fits 2011 Jeep Grand Cherokee, rear.

Common Uses

  • Restoring rear-wheel power transfer after axle wear
  • Replacing a clicking, binding, or vibration-prone CV axle
  • Addressing torn boots or grease loss at the rear axle assembly
  • Correcting driveline noise on Dodge Durango and Jeep Grand Cherokee rear applications
  • Replacing a damaged axle shaft after suspension or road impact

Installation Notes

Verify rear position, differential configuration, and spline count before installation. Confirm axle nut thread size M22 x 1.5 and hex size 1 1/4 in. match the vehicle specification. Because fitment varies by model year and rear axle setup, compare the original shaft length, joint style, and ring gear or carrier notes before service. Use the vehicle service procedure for torque values and final inspection.

Quality Assurance

TrakMotive manufactures this axle shaft as a new replacement part in an ISO 9001:1007 and TS 16949:2009 certified facility. The CH-8250 is backed by a limited lifetime warranty.

Related reading

This part fits 73 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodelDrive TypeLitersCylindersPositionNotes
2022DodgeDurango—RWD3.6LV6RearStandard Duty Replacement; CV Axle Shaft
2022JeepGrand Cherokee—RWD3.6LV6RearStandard Duty Replacement; CV Axle Shaft
2021DodgeDurango—RWD3.6LV6RearStandard Duty Replacement; CV Axle Shaft
2021JeepGrand Cherokee—RWD3.6LV6RearStandard Duty Replacement; CV Axle Shaft
2020DodgeDurango—RWD3.6LV6RearStandard Duty Replacement; CV Axle Shaft
2020JeepGrand Cherokee—RWD3.6LV6RearStandard Duty Replacement; CV Axle Shaft
2019DodgeDurangoSRTAWD——Rear Right230mm Ring Gear (9.06"); w/ Non-locking (Conventional differential); CV Axle Shaft
2019DodgeDurangoSRTAWD——Rear Left230mm Ring Gear (9.06"); w/ Non-locking (Conventional differential); CV Axle Shaft
2019DodgeDurangoSXTRWD3.6LV6Rear Right230mm Ring Gear (9.06"); CV Axle Shaft
2019DodgeDurangoCitadelRWD3.6LV6Rear Left230mm Ring Gear (9.06"); CV Axle Shaft
2019JeepGrand Cherokee—AWD——Rear Right230mm (Carrier); w/ Non-locking Conventional Differential; CV Axle Shaft
2019JeepGrand Cherokee—AWD——Rear Left230mm (Carrier); w/ Non-locking Conventional Differential; CV Axle Shaft
2019JeepGrand Cherokee—RWD3.6LV6Rear Right230mm (Carrier); CV Axle Shaft
2019JeepGrand Cherokee—RWD3.6LV6Rear Left230mm (Carrier); CV Axle Shaft
2018DodgeDurangoSRTAWD——Rear Right230mm Ring Gear (9.06"); w/ Non-locking (Conventional differential); CV Axle Shaft
2018DodgeDurangoSRTAWD——Rear Left230mm Ring Gear (9.06"); w/ Non-locking (Conventional differential); CV Axle Shaft
2018DodgeDurangoSXTRWD3.6LV6Rear Right230mm Ring Gear (9.06"); CV Axle Shaft
2018DodgeDurangoSXTRWD3.6LV6Rear Left230mm Ring Gear (9.06"); CV Axle Shaft
2018JeepGrand Cherokee—AWD——Rear Right230mm (Carrier); w/ Non-locking Conventional Differential; CV Axle Shaft
2018JeepGrand Cherokee—AWD——Rear Left230mm (Carrier); w/ Non-locking Conventional Differential; CV Axle Shaft
2018JeepGrand Cherokee—RWD3.6LV6Rear Right230mm (Carrier); CV Axle Shaft
2018JeepGrand Cherokee—RWD3.6LV6Rear Left230mm (Carrier); CV Axle Shaft
2017DodgeDurangoSXTAWD——Rear Right230mm Ring Gear (9.06"); CV Axle Shaft
2017DodgeDurangoSXTAWD——Rear Left230mm Ring Gear (9.06"); CV Axle Shaft
2017JeepGrand Cherokee—AWD——Rear Right230mm (Carrier); w/ Non-locking Conventional Differential; CV Axle Shaft
2017JeepGrand Cherokee—AWD——Rear Left230mm (Carrier); w/ Non-locking Conventional Differential; CV Axle Shaft
2017JeepGrand Cherokee—RWD3.6LV6Rear Right230mm (Carrier); CV Axle Shaft
2017JeepGrand Cherokee—RWD3.6LV6Rear Left230mm (Carrier); CV Axle Shaft
2016DodgeDurangoSXTAWD——Rear Right230mm Ring Gear (9.06"); CV Axle Shaft
2016DodgeDurangoSXTAWD——Rear Left230mm Ring Gear (9.06"); CV Axle Shaft
2016DodgeDurangoSXTRWD3.6LV6Rear Right230mm Ring Gear (9.06"); CV Axle Shaft
2016DodgeDurangoSXTRWD3.6LV6Rear Left230mm Ring Gear (9.06"); CV Axle Shaft
2016JeepGrand Cherokee—AWD——Rear Right230mm Ring Gear (Carrier); w/ Non-locking Conventional Differential; CV Axle Shaft
2016JeepGrand Cherokee—AWD——Rear Left230mm Ring Gear (Carrier); w/ Non-locking Conventional Differential; CV Axle Shaft
2016JeepGrand Cherokee—RWD3.6LV6Rear Right230mm Ring Gear (Carrier); CV Axle Shaft
2016JeepGrand Cherokee—RWD3.6LV6Rear Left230mm Ring Gear (Carrier); CV Axle Shaft
2015DodgeDurangoSXTAWD——Rear Right230mm Ring Gear (9.06"); CV Axle Shaft
2015DodgeDurangoSXTAWD——Rear Left230mm Ring Gear (9.06"); CV Axle Shaft
2015DodgeDurangoSXTRWD3.6LV6Rear Right230mm Ring Gear (9.06"); CV Axle Shaft
2015DodgeDurangoSXTRWD3.6LV6Rear Left230mm Ring Gear (9.06"); CV Axle Shaft
2015JeepGrand Cherokee—AWD——Rear Right230mm Ring Gear (Carrier); w/ Non-locking Conventional Differential; CV Axle Shaft
2015JeepGrand Cherokee—AWD——Rear Left230mm Ring Gear (Carrier); w/ Non-locking Conventional Differential; CV Axle Shaft
2015JeepGrand Cherokee—RWD3.6LV6Rear Right230mm Ring Gear (Carrier); CV Axle Shaft
2015JeepGrand Cherokee—RWD3.6LV6Rear Left230mm Ring Gear (Carrier); CV Axle Shaft
2014DodgeDurangoSXTAWD——Rear Right230mm Ring Gear; CV Axle Shaft
2014DodgeDurangoSXTAWD——Rear Left230mm Ring Gear; CV Axle Shaft
2014DodgeDurangoSXTRWD3.6LV6Rear Right230mm Ring Gear; CV Axle Shaft
2014DodgeDurangoSXTRWD3.6LV6Rear Left230mm Ring Gear; CV Axle Shaft
2014JeepGrand Cherokee—AWD——Rear Right230mm Ring Gear (Carrier); w/ Non-locking Conventional Differential; CV Axle Shaft
2014JeepGrand Cherokee—AWD——Rear Left230mm Ring Gear (Carrier); w/ Non-locking Conventional Differential; CV Axle Shaft
2014JeepGrand Cherokee—RWD3.6LV6Rear Right230mm Ring Gear (Carrier); CV Axle Shaft
2014JeepGrand Cherokee—RWD3.6LV6Rear Left230mm Ring Gear (Carrier); CV Axle Shaft
2013DodgeDurangoSXTAWD——Rear Right230mm Ring Gear; CV Axle Shaft
2013DodgeDurangoSXTAWD——Rear Left230mm Ring Gear; CV Axle Shaft
2013DodgeDurangoSXTRWD3.6LV6Rear Right230mm Ring Gear; CV Axle Shaft
2013DodgeDurangoSXTRWD3.6LV6Rear Left230mm Ring Gear; CV Axle Shaft
2013JeepGrand Cherokee—AWD5.7LV8Rear Right230mm Ring Gear (9.06"); Non Locking (Conventional differential); CV Axle Shaft
2013JeepGrand Cherokee—AWD5.7LV8Rear Left230mm Ring Gear (9.06"); Non Locking (Conventional differential); CV Axle Shaft
2013JeepGrand Cherokee—RWD3.6LV6Rear Right230mm Ring Gear (9.06"); CV Axle Shaft
2013JeepGrand Cherokee—RWD3.6LV6Rear Left230mm Ring Gear (9.06"); CV Axle Shaft
2012DodgeDurangoSXTAWD——Rear Right230mm Ring Gear; CV Axle Shaft
2012DodgeDurangoSXTAWD——Rear Left230mm Ring Gear; CV Axle Shaft
2012DodgeDurangoSXTRWD3.6LV6Rear Right230mm Ring Gear; CV Axle Shaft
2012DodgeDurangoSXTRWD3.6LV6Rear Left230mm Ring Gear; CV Axle Shaft
2012JeepGrand Cherokee—AWD5.7LV8Rear Rightw/ 230mm Ring Gear; Non Locking (Conventional differential); CV Axle Shaft
2012JeepGrand Cherokee—AWD5.7LV8Rear Leftw/ 230mm Ring Gear; Non Locking (Conventional differential); CV Axle Shaft
2012JeepGrand Cherokee——3.6LV6Rear Rightw/ 230mm Ring Gear; CV Axle Shaft
2012JeepGrand Cherokee——3.6LV6Rear Leftw/ 230mm Ring Gear; CV Axle Shaft
2011DodgeDurangoSXTAWD——Rear Right230mm Ring Gear; CV Axle Shaft
2011DodgeDurangoSXTAWD——Rear Left230mm Ring Gear; CV Axle Shaft
2011DodgeDurangoSXTRWD3.6LV6Rear Right230mm Ring Gear; CV Axle Shaft
2011DodgeDurangoSXTRWD3.6LV6Rear Left230mm Ring Gear; CV Axle Shaft
2011JeepGrand Cherokee—AWD5.7LV8RearStandard Duty Replacement; CV Axle Shaft
Directly replaces or cross-references 1 part number
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
TrakMotive — CH-8250
