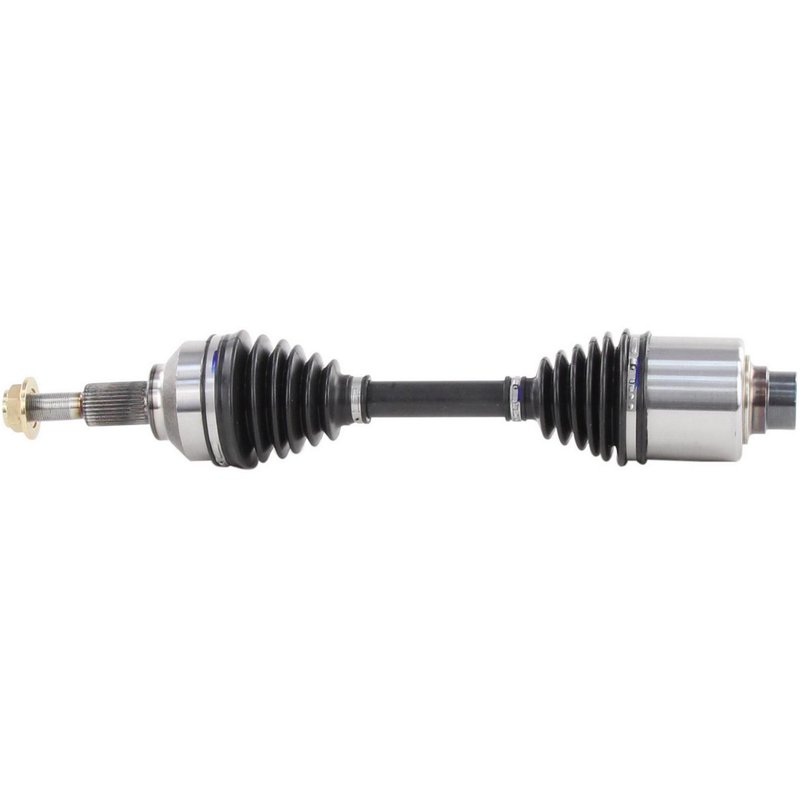

TrakMotive CH-8259 CV Axle Shaft - Front Right

Overview of the TrakMotive CV Axle Shaft CH-8259

The TrakMotive CV Axle Shaft CH-8259 is designed specifically for Chrysler and Dodge vehicles, including the 200 and Avenger models. This new CV axle shaft provides reliable driveline performance with precise fitment and durable construction.

• Brand: TrakMotive
• Brand Line: CV Axle Shaft
• Part Number: CH-8259
• Compatible with Chrysler 200 and Dodge Avenger
• Overall compressed length: 23.88 inches (606.5 mm)
• Axle nut included with self-locking feature
• Boot material: Neoprene for enhanced durability
• Inboard joint type: Female with 28 splines
• Outboard joint type: Conventional with 32 splines
• Axle nut specifications: Hex head, 1 1/4 inch (32 mm) hex size, 4/5 inch (20 mm) height, M22*1.5 thread size

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering dependable CV components engineered for precise fit and function. This line includes new CV axle shafts designed to meet OEM specifications, ensuring compatibility and performance for specific vehicle applications such as the Chrysler 200 and Dodge Avenger. The CH-8259 model exemplifies this approach with its robust neoprene boot and self-locking axle nut, providing secure installation and long-lasting service.

Technical Specifications and Features

The CH-8259 CV axle shaft features a neoprene boot that offers resistance to wear and environmental factors, helping to protect the joint from contaminants. The inboard joint is a female type with 28 splines, while the outboard joint is conventional with 32 splines, ensuring proper engagement and smooth power transfer. The included axle nut has a hex head design with a 1 1/4 inch (32 mm) hex size and a self-locking mechanism to maintain secure fastening during operation. The overall compressed length of 23.88 inches (606.5 mm) matches factory dimensions for a direct replacement.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Chrysler 200 and Dodge Avenger models
• Eliminates clicking or popping noises during turns caused by failing CV joints
• Resolves vibration or shuddering issues related to axle shaft wear
• Addresses grease leakage from torn or damaged CV boots
• Restores driveline integrity and smooth power delivery to the wheels

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft CH-8259, ensure the vehicle is securely lifted and supported. Remove the old axle shaft carefully, noting the orientation and connection points. The included self-locking axle nut should be torqued to manufacturer specifications to prevent loosening. Inspect the axle shaft splines for proper engagement and verify the neoprene boot is seated correctly to avoid premature wear. It is recommended to use appropriate tools for hex nut removal and installation to avoid damage.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component built to meet or exceed OEM standards. TrakMotive provides quality assurance through rigorous manufacturing controls. The included self-locking axle nut and durable neoprene boot contribute to the part's reliability. Warranty details should be confirmed with the distributor or manufacturer, as coverage may vary.
