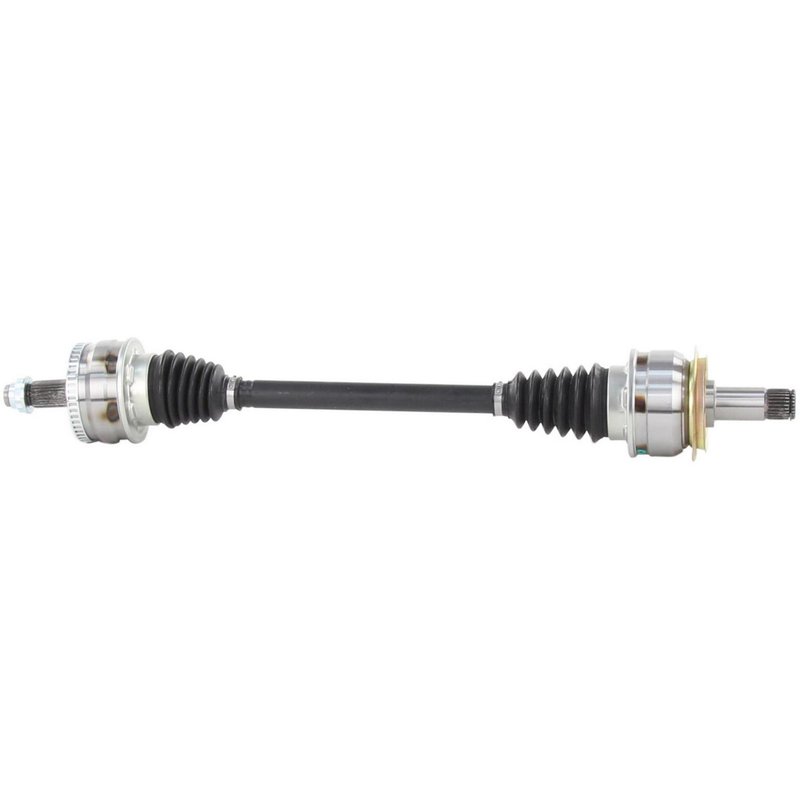

TrakMotive CH-8260 CV Axle Shaft - Rear Left or Rear Right

Overview of TrakMotive CV Axle Shaft CH-8260 for Chrysler Crossfire

The TrakMotive CV Axle Shaft CH-8260 is engineered specifically for Chrysler Crossfire models, providing reliable driveline performance. Designed as a new replacement part, this axle shaft ensures proper fit and function for your vehicle's CV components.

• Compatible with Chrysler Crossfire vehicles
• Includes ABS tone ring with 48 window-type teeth
• Neoprene boot material for durability and protection
• Comes with a standard locking hex axle nut (M24*1.5 thread size)
• Overall compressed length of 28.35 inches (720 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components tailored to specific vehicle applications. This CV Axle Shaft model CH-8260 features a male inboard joint type with 27 splines and a conventional outboard joint with 25 splines, ensuring compatibility and smooth power transfer for the Chrysler Crossfire. The inclusion of an ABS tone ring enhances vehicle safety systems by providing accurate wheel speed data.

Technical Specifications and Features

This CV axle shaft is constructed with a neoprene boot to resist wear and environmental damage. The axle nut included is a hex head type measuring 29.5 mm across flats, with a height of 17 mm and length of 33.8 mm, designed for standard locking. The ABS ring has 48 window-type teeth, which is integral for the vehicle's anti-lock braking system. The overall compressed length of 28.35 inches (720 mm) ensures proper fitment within the Chrysler Crossfire's driveline assembly.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Chrysler Crossfire
• Restores proper ABS sensor function with included tone ring
• Eliminates axle vibration or clicking noises during turns
• Prevents grease leakage with durable neoprene boot
• Ensures secure wheel attachment with included axle nut

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft CH-8260, verify compatibility with your Chrysler Crossfire model year. Use proper torque specifications for the M24*1.5 axle nut to ensure secure fitment. Inspect the boot for any damage during installation and confirm the ABS tone ring is properly aligned for accurate sensor readings. It is recommended to replace axle nuts with the included new hardware to maintain locking integrity.

Quality Assurance and Warranty

This CV axle shaft is a new, OEM-quality replacement part designed to meet or exceed factory specifications for Chrysler Crossfire vehicles. The inclusion of the ABS tone ring and neoprene boot supports long-term durability and safety. Warranty details are provided by TrakMotive and should be confirmed at the time of purchase.
