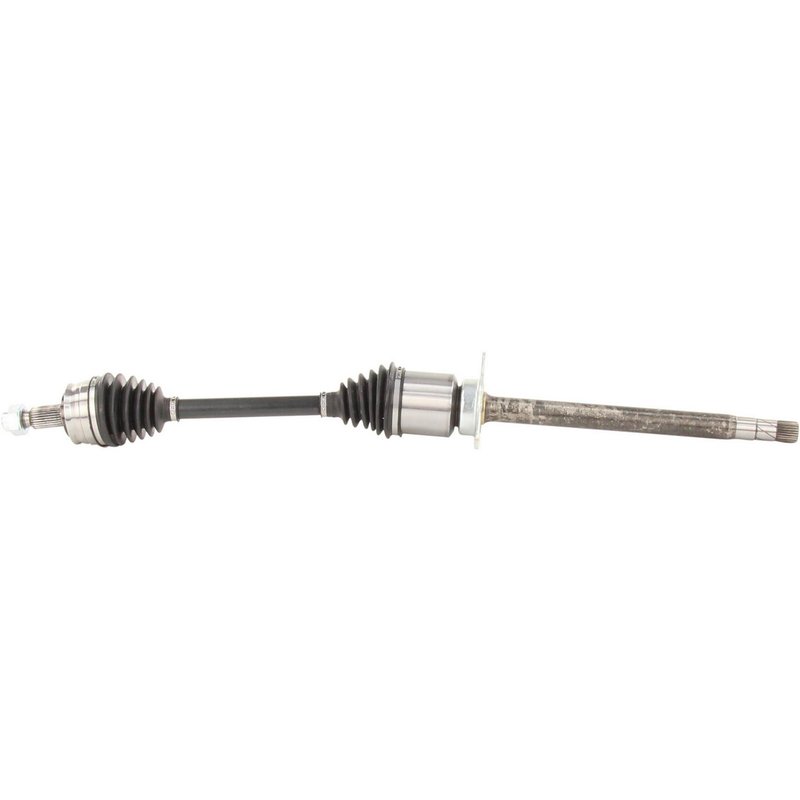

TrakMotive CH-8264 CV Axle Shaft - Front Right
| Brand | TrakMotive CH-8264 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 26.5 |
| Axle Nut Hex Size (in) | 1 3/7 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 5/8 |
| Axle Nut Length (mm) | 41.5 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 38.9 |
| Overall Compressed Length (mm) | 988 |
| Product line | CV Axle Shaft |
| Fits | Dodge · 4 vehicles |
New axle shaft. Includes the axle nut for a complete replacement.
Neoprene boot. Helps protect the joint from dirt and moisture.
ISO 9001 and TS 16949 certified. Built by a quality-managed manufacturer.
Cross-references TrakMotive CH-8264 for the same application. See all 1.
TrakMotive CV Axle Shaft for Dodge Dart
The TrakMotive CH-8264 CV axle shaft is a new front right driveline replacement for 2013-2016 Dodge Dart applications. Built for direct-fit service, it includes the axle nut and uses a neoprene boot for dependable joint protection in everyday driving.
Key Features
- Fits 2013-2016 Dodge Dart, front right
- TrakMotive CV Axle Shaft, part number CH-8264
- New axle shaft assembly for driveline repair
- Male inboard shaft connection with conventional outboard joint design
- 25 inboard splines and 27 outboard splines
- Neoprene boot material for joint coverage
- Axle nut included with M24 x 1.5 thread size
- 36 mm axle nut hex size and stake locking type
- Overall compressed length: 988 mm (38.9 in)
- ABS tone ring not included
Detailed Description
TrakMotive CH-8264 is a CV axle shaft for the front right position on the Dodge Dart from 2013 through 2016. This axle is built new, not remanufactured, and is configured with a male inboard connection, conventional outboard joint style, and the spline counts needed for the listed application. The included axle nut and specified compressed length help support a direct replacement during front axle service. TrakMotive positions this CV axle shaft line as a practical driveline solution for vehicles needing OE-style fitment and consistent joint operation.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Repair Uses
- Front axle noise during acceleration or turning
- Vibration from a worn CV joint or shaft assembly
- Clicking or popping from the front right driveline
- Boot damage that has led to joint contamination
- Replacement after axle shaft wear or failure
Installation Notes and Tips
Verify spline count, compressed length, and axle nut thread size before installation. This axle uses a hex-style nut with stake locking, so the existing hub and fastener setup should be checked for proper service procedure. ABS tone ring is not included, and ABS axles fit non-ABS applications unless otherwise noted by the vehicle listing.
Quality Assurance
TrakMotive identifies this CV axle shaft line as ISO 9001:1007 and TS 16949:2009 certified, with a limited lifetime warranty stated by the manufacturer.
| Year | Make | Model | Transmission | Position | Notes |
|---|---|---|---|---|---|
| 2016 | Dodge | Dart | Manual | Front Right | CV Axle Shaft |
| 2015 | Dodge | Dart | Manual | Front Right | CV Axle Shaft |
| 2014 | Dodge | Dart | Manual | Front Right | CV Axle Shaft |
| 2013 | Dodge | Dart | Manual | Front Right | CV Axle Shaft |
