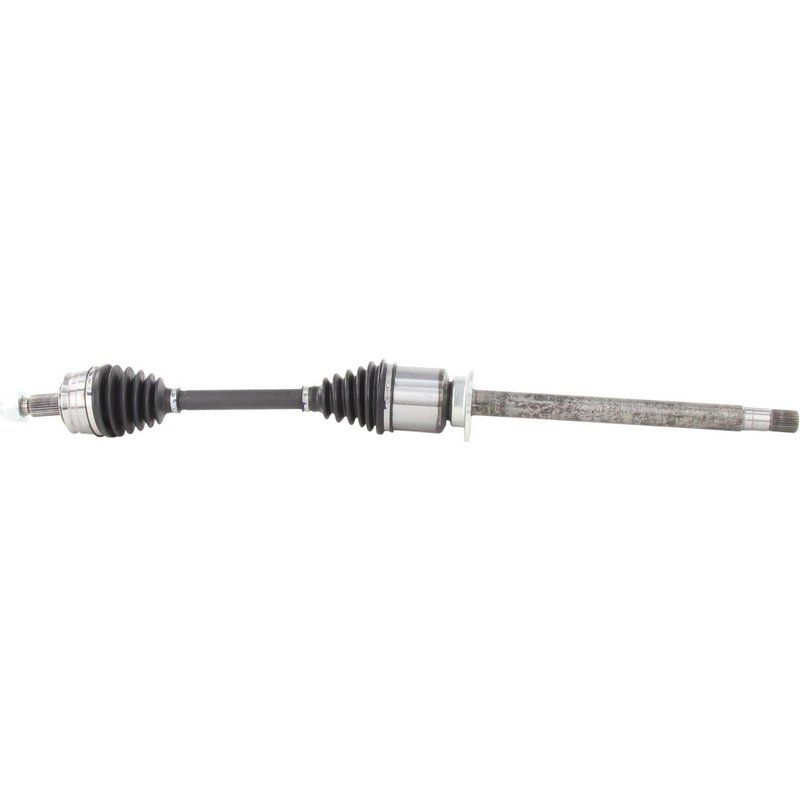

TrakMotive CH-8274 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft CH-8274

The TrakMotive CV Axle Shaft CH-8274 is designed specifically for Dodge Colt and Dart models, providing reliable driveline performance. This new axle shaft ensures proper fitment and durability for your vehicle's front-wheel-drive system.

• Compatible with Dodge Colt and Dodge Dart vehicles
• Includes axle nut with stake locking type for secure installation
• Neoprene boot material for enhanced joint protection
• Hex head axle nut with 36 mm hex size and 1 5/8 inch length
• Overall compressed length of 38.21 inches (970.5 mm)
• 27 splines on both inboard and outboard shafts for precise fit
• New, not remanufactured, ensuring original quality

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering dependable CV components tailored to specific vehicle applications. This line emphasizes precise engineering, including correct spline counts and joint types, to maintain driveline integrity. The CH-8274 model exemplifies this approach by matching the exact specifications required for Dodge Colt and Dart models, including the male inboard joint and conventional outboard joint types.

Technical Specifications and Features

This CV axle shaft features a neoprene boot that offers resistance to wear and environmental factors, helping to extend the life of the joint. The axle nut included is a hex head type with a 36 mm hex size and a stake locking mechanism, ensuring a secure fit and preventing loosening during operation. The shaft has 27 splines on both the inboard and outboard ends, compatible with the male inboard joint and conventional outboard joint connection styles. The overall compressed length measures 38.21 inches (970.5 mm), matching the factory specifications for proper installation and function.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Dodge Colt and Dart
• Eliminates clicking or popping noises during turns caused by joint wear
• Resolves vibration issues related to axle imbalance or joint failure
• Prevents grease leaks by restoring boot integrity with durable neoprene material
• Addresses axle nut loosening with included stake locking axle nut

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft CH-8274, ensure the axle nut is torqued to the manufacturer’s specifications and properly staked to prevent loosening. Verify that the 27-spline connections align correctly with the vehicle’s transmission and wheel hub. Inspect the neoprene boot for any damage during installation to maintain joint protection. This part is designed for direct replacement on compatible Dodge Colt and Dart models, simplifying the installation process.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft CH-8274 is a new, not remanufactured, component manufactured to meet OEM standards. It includes a stake-type locking axle nut to ensure secure fitment and long-term reliability. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to support vehicle driveline performance.
