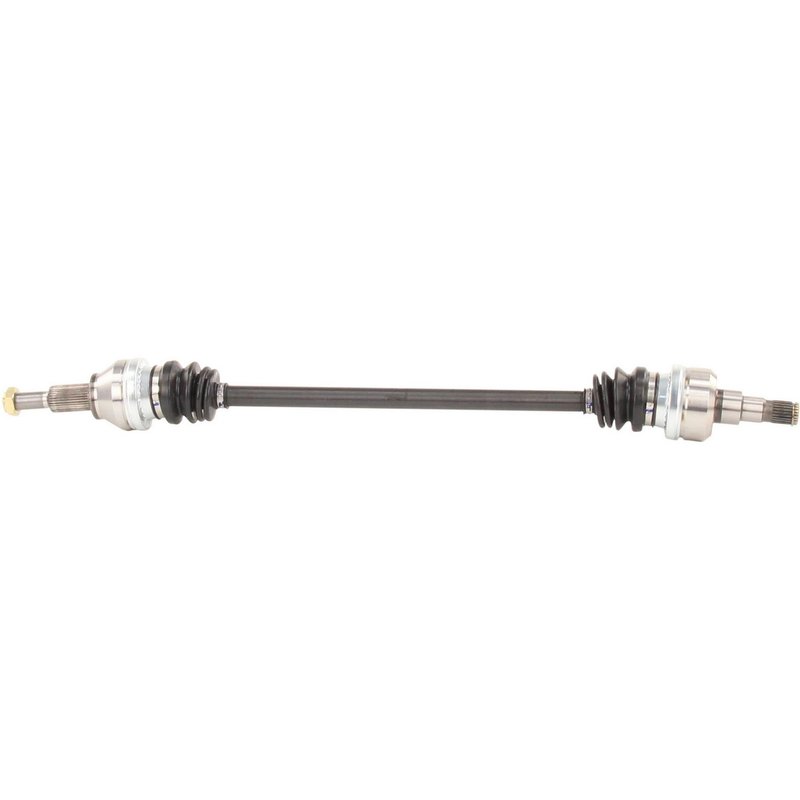

TrakMotive CH-8277 CV Axle Shaft - Rear Right
| Brand | TrakMotive CH-8277 |
|---|---|
| Position | Rear Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 3/5 |
| Axle Nut Height (mm) | 15 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Splines | 32 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 36.02 |
| Overall Compressed Length (mm) | 915 |
| Product line | CV Axle Shaft |
| Fits | Chrysler · 2 vehicles |
New replacement shaft. Built as a fresh CV axle shaft for straightforward service replacement.
Neoprene boot material. Helps resist wear while keeping the joint protected and flexible.
Includes axle nut. Comes with a self-locking hex nut for easier installation.
Cross-references Cardone Reman 60-3416, TrakMotive CH-8277 and 60-3601 for the same application. See all 7.
TrakMotive CV Axle Shaft for Chrysler Pacifica
TrakMotive CH-8277 is a new CV axle shaft for the rear right position on select 2007-2008 Chrysler Pacifica models. It is built with a neoprene boot, a male inboard connection, and a conventional outboard joint for direct driveline service on the listed application.
Key Features
- Fits 2007-2008 Chrysler Pacifica, rear right
- New CV axle shaft for driveline and axle repair
- Neoprene boot material for joint protection
- Male inboard shaft connection with 25 inboard splines
- Conventional outboard joint with spline shaft connection
- Includes axle nut with M22 x 1.5 thread, 32 mm hex size, and self-lock design
- Overall compressed length: 36.02 in. (915 mm)
- ABS tone ring not included
Product Details
TrakMotive CH-8277 is a CV axle shaft engineered for the rear right side of the 2007-2008 Chrysler Pacifica. The axle uses a male inboard joint, a spline-style outboard shaft connection, and 25 inboard splines with 32 outboard splines to match the listed fitment. TrakMotive positions this CV axle shaft within its CV Axle Shaft product line for driveline replacement work where the original axle has worn joints, damaged boots, or spline wear. This part cross-references Cardone Reman 60-3416 for the same application.
Common Repair Symptoms
- Clicking or popping from the rear right axle area during turns
- Vibration from worn CV joints or shaft imbalance
- Torn or deteriorated axle boot with grease leakage
- Axle spline wear or driveline noise under load
- Loss of smooth power transfer to the rear wheel
Installation Notes
Verify rear right fitment on the 2007-2008 Chrysler Pacifica before installation. Confirm axle nut thread size, hex size, and compressed length against the original part. Inspect the hub, seals, and mating splines for wear before assembly, and replace any damaged related components during service. ABS tone ring is not included, so confirm the vehicle’s original axle configuration before ordering.
Quality Assurance
TrakMotive states this axle is new and backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:1007 and TS 16949:2009 certification, supporting controlled production and quality management for this CV axle shaft.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2008 | Chrysler | Pacifica | AWD | Rear Right | CV Axle Shaft |
| 2007 | Chrysler | Pacifica | AWD | Rear Right | CV Axle Shaft |
