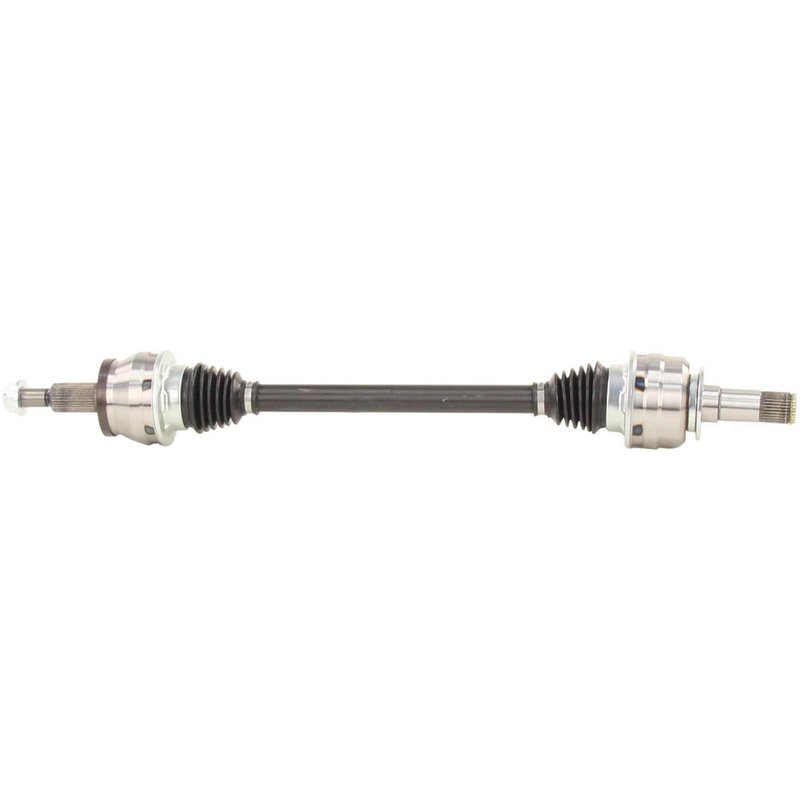

TrakMotive CH-8281 CV Axle Shaft - Rear Left
| Brand | TrakMotive CH-8281 |
|---|---|
| Position | Rear Left |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 6/7 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1 2/7 |
| Axle Nut Hex Size (mm) | 32.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37.9 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M27*2 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 33 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 24.8 |
| Overall Compressed Length (mm) | 630 |
| Product line | CV Axle Shaft |
| Fits | Dodge · 22 vehicles |
New axle shaft. Built with neoprene boot material for dependable joint protection.
OE-style fit. Includes a self-lock axle nut for straightforward installation.
Certified quality. Made by an ISO 9001 and TS 16949 certified company.
Cross-references TrakMotive CH-8281, 4578733AB and 4578733AC for the same application. See all 6.
Rear Left CV Axle Shaft for Chrysler and Dodge
TrakMotive CH-8281 is a new rear left CV axle shaft for select Chrysler 300, Dodge Charger, Dodge Magnum, and Dodge Challenger applications. It is built for standard-duty replacement use and is specified with the correct spline counts, compressed length, and axle nut details for listed vehicles.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: CH-8281
- Rear left position
- New construction
- Overall compressed length: 24.8 in. (630 mm)
- Inboard joint type: Male
- Outboard joint type: Conventional
- Inboard splines: 27
- Outboard splines: 33
- Boot material: Neoprene
- Axle nut included with self-lock design
- Axle nut thread size: M27x2
- No ABS tone ring included
Product Details
This TrakMotive CV axle shaft is engineered for rear left driveline service on 2005-2010 Chrysler 300, 2006-2010 Dodge Charger, 2006-2008 Dodge Magnum, and 2011-2014 Dodge Challenger. For 2009-2010 Dodge Challenger applications, compare spline counts and diameter to the original shaft before ordering. The CH-8281 uses a male inboard connection, a conventional outboard joint, and a neoprene boot to support OE-style replacement needs in the rear driveline.
TrakMotive’s CV Axle Shaft line focuses on direct-fit driveline replacement parts built to meet application-specific dimensions and connection styles. CH-8281 is a new axle assembly for Chrysler and Dodge rear left applications where the original shaft uses 27 inboard splines, 33 outboard splines, and a 24.8-inch compressed length.
Common Problems This Part Can Address
- Clicking or popping from a worn CV joint
- Vibration during acceleration from a damaged axle shaft
- Grease leakage from a torn or deteriorated boot
- Excessive driveline play from worn splines or joints
- Noise or binding from a failing rear left axle assembly
Installation Notes and Tips
- Verify rear left fitment against the vehicle’s original axle dimensions before installation.
- For 2009-2010 Dodge Challenger, compare spline counts and shaft diameter to the original part.
- Confirm axle nut thread size M27x2 and hex size 32.8 mm during service.
- Inspect hub, bearing, and differential interfaces for wear before installing the new axle.
- Use the listed axle nut and torque procedures for the specific vehicle application.
Quality Assurance
TrakMotive lists CH-8281 as a new CV axle shaft backed by a limited lifetime warranty. The manufacturer also states that its products are produced by an ISO 9001:1007 and TS 16949:2009 certified company.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
| Year | Make | Model | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2014 | Dodge | Challenger | — | — | 6.4L | V8 | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2013 | Dodge | Challenger | — | — | 6.4L | V8 | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2012 | Dodge | Challenger | — | — | 6.4L | V8 | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2011 | Dodge | Challenger | — | — | 6.4L | V8 | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2010 | Chrysler | 300 | — | — | 6.1L | V8 | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2010 | Dodge | Challenger | — | — | 6.1L | V8 | Rear Left | Compare spline counts and diameter to original; CV Axle Shaft |
| 2010 | Dodge | Challenger | — | Manual | 5.7L | V8 | Rear Left | Compare spline counts and diameter to original; CV Axle Shaft |
| 2010 | Dodge | Charger | — | — | 6.1L | V8 | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2009 | Chrysler | 300 | — | — | 6.1L | V8 | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2009 | Dodge | Challenger | — | — | 6.1L | V8 | Rear Left | Compare spline counts and diameter to original; CV Axle Shaft |
| 2009 | Dodge | Challenger | — | Manual | 5.7L | V8 | Rear Left | Compare spline counts and diameter to original; CV Axle Shaft |
| 2009 | Dodge | Charger | — | — | 6.1L | V8 | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2008 | Chrysler | 300 | — | — | 6.1L | V8 | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2008 | Dodge | Charger | — | — | 6.1L | V8 | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2008 | Dodge | Magnum | — | — | 6.1L | V8 | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2007 | Chrysler | 300 | — | — | 6.1L | V8 | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2007 | Dodge | Charger | — | — | 6.1L | V8 | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2007 | Dodge | Magnum | — | — | 6.1L | V8 | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2006 | Chrysler | 300 | — | — | 6.1L | V8 | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2006 | Dodge | Charger | — | — | 6.1L | V8 | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2006 | Dodge | Magnum | — | — | 6.1L | V8 | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2005 | Chrysler | 300 | RWD | — | 6.1L | V8 | Rear Left | Standard Duty Replacement; CV Axle Shaft |
