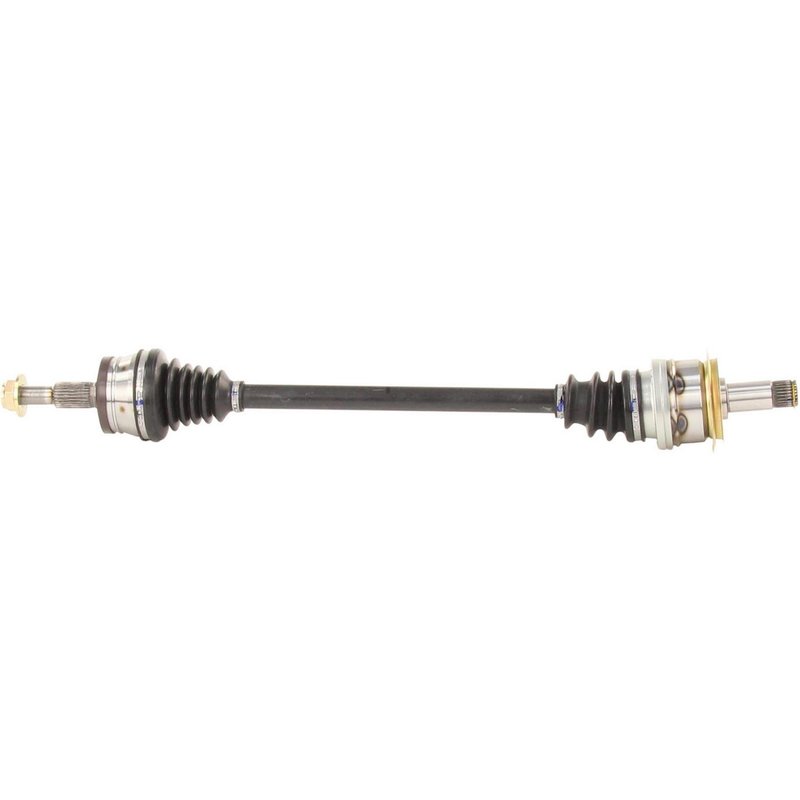

TrakMotive CH-8283 CV Axle Shaft - Rear Left
| Brand | TrakMotive CH-8283 |
|---|---|
| Position | Rear Left |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Magnetic |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 5/6 |
| Axle Nut Height (mm) | 21.2 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 31.8 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.4 |
| Axle Nut Locking Type | Self-Lock |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 32.64 |
| Overall Compressed Length (mm) | 829 |
| Product line | CV Axle Shaft |
| Fits | Chrysler and Dodge · 16 vehicles |
New axle shaft. Built as a fresh replacement, not remanufactured.
Magnetic ABS tone ring. Includes a 48-tooth ring for precise wheel-speed signal pickup.
Neoprene boot. Helps protect the joint from dirt and moisture.
Cross-references Cardone New 66-3649, Cardone Reman 60-3649 and TrakMotive CH-8283 for the same application. See all 6.
CV Axle Shaft for Rear Left Applications
TrakMotive CH-8283 is a new CV axle shaft for rear left driveline service on select Chrysler 300, Dodge Charger, and Dodge Magnum models. It is built with a 27-spline inboard and 27-spline outboard configuration, a 32.64 in. overall compressed length, and an ABS magnetic tone ring with 48 teeth.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: CH-8283
- Rear left position
- New axle shaft assembly
- 27 inboard splines and 27 outboard splines
- Overall compressed length: 32.64 in. (829 mm)
- ABS tone ring included; magnetic ring with 48 teeth
- Neoprene boot material
- Axle nut included with self-lock design, M22 x 1.5 thread, 31.8 mm hex size
- Inboard joint type: male; outboard joint type: conventional
Product Details
This TrakMotive CV axle shaft is part of the brand’s CV Axle Shaft line and is engineered for rear left service on 2005-2008 Chrysler 300, 2007-2008 Dodge Charger, and 2005-2008 Dodge Magnum applications. The CH-8283 uses a male inboard shaft connection, a conventional outboard shaft connection, and a neoprene boot for driveline protection. ABS-equipped versions include a magnetic tone ring, and TrakMotive notes that ABS axles fit non-ABS applications unless otherwise noted. This part cross-references Cardone New 66-3649 and Cardone Reman 60-3649 for the same application.
What It Helps Address
- Clicking or popping from a worn CV joint
- Vibration during acceleration from a damaged axle shaft
- Grease leakage from a torn boot
- ABS warning concerns related to a failed tone ring
- Driveline noise from spline or joint wear
Installation Notes
Verify spline counts, shaft diameter, and overall length against the original axle before installation. Confirm rear left fitment for the specific Chrysler 300, Dodge Charger, or Dodge Magnum model year listed. Use the included axle nut with the correct M22 x 1.5 thread and 31.8 mm hex size, and follow factory torque specifications during installation.
Quality Assurance
TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty and is produced by an ISO 9001:1007 and TS 16949:2009 certified company.
- Fits 2005-2008 Chrysler 300, rear left.
- Fits 2007-2008 Dodge Charger, rear left.
- Fits 2005-2008 Dodge Magnum, rear left.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2008 | Chrysler | 300 | AWD | — | — | Rear Left | Compare spline counts and diameter to original; CV Axle Shaft |
| 2008 | Dodge | Charger | AWD | 5.7L | V8 | Rear Left | Compare spline counts and diameter to original; CV Axle Shaft |
| 2008 | Dodge | Charger | AWD | 3.5L | V6 | Rear Left | Compare spline counts and diameter to original; CV Axle Shaft |
| 2008 | Dodge | Magnum | AWD | 5.7L | V8 | Rear Left | Compare spline counts and diameter to original; CV Axle Shaft |
| 2008 | Dodge | Magnum | AWD | 3.5L | V6 | Rear Left | Compare spline counts and diameter to original; CV Axle Shaft |
| 2007 | Chrysler | 300 | AWD | — | — | Rear Left | Compare spline counts and diameter to original; CV Axle Shaft |
| 2007 | Dodge | Charger | AWD | 5.7L | V8 | Rear Left | Compare spline counts and diameter to original; CV Axle Shaft |
| 2007 | Dodge | Charger | AWD | 3.5L | V6 | Rear Left | Compare spline counts and diameter to original; CV Axle Shaft |
| 2007 | Dodge | Magnum | AWD | 5.7L | V8 | Rear Left | Compare spline counts and diameter to original; CV Axle Shaft |
| 2007 | Dodge | Magnum | AWD | 3.5L | V6 | Rear Left | Compare spline counts and diameter to original; CV Axle Shaft |
| 2006 | Chrysler | 300 | AWD | — | — | Rear Left | Compare spline counts and diameter to original; CV Axle Shaft |
| 2006 | Dodge | Magnum | AWD | 5.7L | V8 | Rear Left | Compare spline counts and diameter to original; CV Axle Shaft |
| 2006 | Dodge | Magnum | AWD | 3.5L | V6 | Rear Left | Compare spline counts and diameter to original; CV Axle Shaft |
| 2005 | Chrysler | 300 | AWD | — | — | Rear Left | Compare spline counts and diameter to original; CV Axle Shaft |
| 2005 | Dodge | Magnum | AWD | 5.7L | V8 | Rear Left | CV Axle Shaft |
| 2005 | Dodge | Magnum | AWD | 3.5L | V6 | Rear Left | Compare spline counts and diameter to original; CV Axle Shaft |
