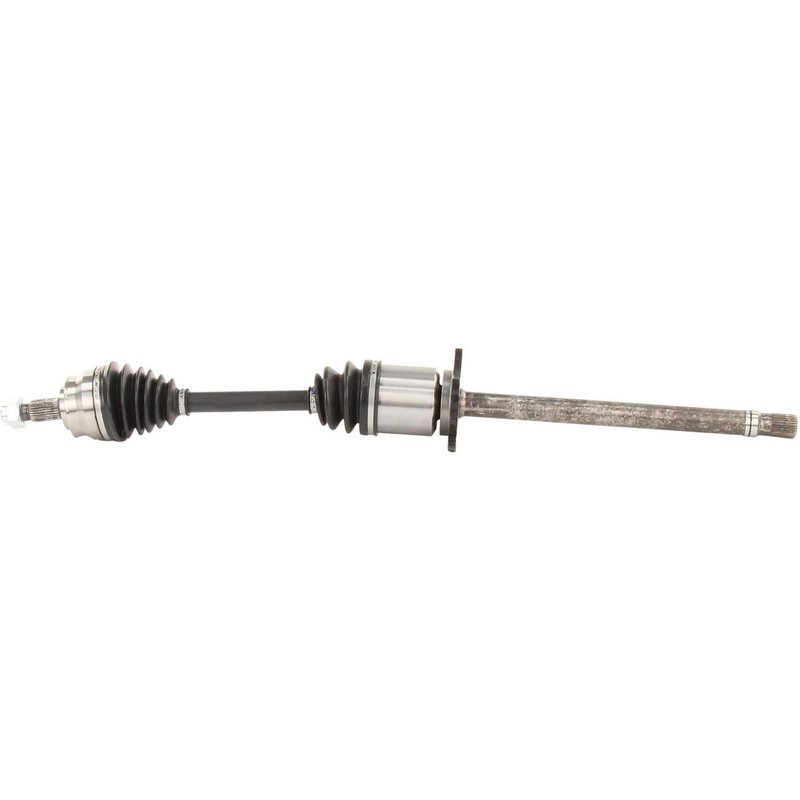

TrakMotive CH-8295 CV Axle Shaft - Front Right
| Brand | TrakMotive CH-8295 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 26.5 |
| Axle Nut Hex Size (in) | 1 3/7 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 5/8 |
| Axle Nut Length (mm) | 41.5 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 30 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 38.94 |
| Overall Compressed Length (mm) | 989 |
| Product line | AAR CV Axle Shaft |
| Fits | Chrysler · 3 vehicles |
New axle shaft. Fresh replacement part for driveline and CV component service.
Neoprene boot. Durable material helps protect the joint from wear and contamination.
Includes axle nut. Ready for a more complete installation out of the box.
Cross-references TrakMotive CH-8295 for the same application. See all 1.
TrakMotive CH-8295 CV Axle Shaft
The TrakMotive AAR CV Axle Shaft CH-8295 is a new front right axle assembly for select Chrysler 200 applications. It is built for 2015-2017 Chrysler 200 models with the updated design, and it includes the axle nut for a more complete service replacement.
Key Features
- Brand: TrakMotive AAR CV Axle Shaft
- Part number: CH-8295
- Fits 2015-2017 Chrysler 200, front right
- New CV axle shaft for driveline and axle service
- Neoprene boot material
- Male inboard shaft connection style
- Conventional outboard joint type with spline connection
- 30 inboard splines and 27 outboard splines
- Axle nut included; hex head, stake locking type, M24 x 1.5 thread
- Overall compressed length: 38.94 in. (989 mm)
Detailed Description
TrakMotive CH-8295 is a front right CV axle shaft for the Chrysler 200, covering 2015, 2016, and 2017 model years with the updated design. This axle is built as a new replacement part for driveline repair, with a neoprene boot, male inboard connection, and conventional outboard joint construction. The included axle nut and specified spline counts help match the original service requirements for the application.
For buyers searching for a Chrysler 200 front right CV axle shaft, CH-8295 provides a direct-fit replacement option for the listed vehicles. The part number CH-8295 is also useful when cross-checking catalog listings for the same application.
This part cross-references TrakMotive CH-8295 for the same application.
What It Helps Fix
- Clicking or popping noises during turns from a worn CV joint
- Vibration felt through the drivetrain under acceleration
- Torn or leaking axle boot conditions
- Excessive play in the front right axle assembly
- Loss of smooth power transfer to the wheel
Installation Notes and Tips
Verify the vehicle is a 2015-2017 Chrysler 200, front right, and confirm the updated design before ordering. Match the axle nut thread size, spline counts, and compressed length to the original part during installation. Inspect related seals, hub components, and suspension hardware for wear before completing the repair.
Quality Assurance
TrakMotive identifies this AAR CV axle shaft as a new part and notes ISO 9001:1007 and TS 16949:2009 certified manufacturing. The manufacturer also states a limited lifetime warranty for this part line.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2017 | Chrysler | 200 | FWD | 2.4L | L4 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2016 | Chrysler | 200 | FWD | 2.4L | L4 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2015 | Chrysler | 200 | FWD | 2.4L | L4 | Front Right | Updated Design; AAR CV Axle Shaft |
