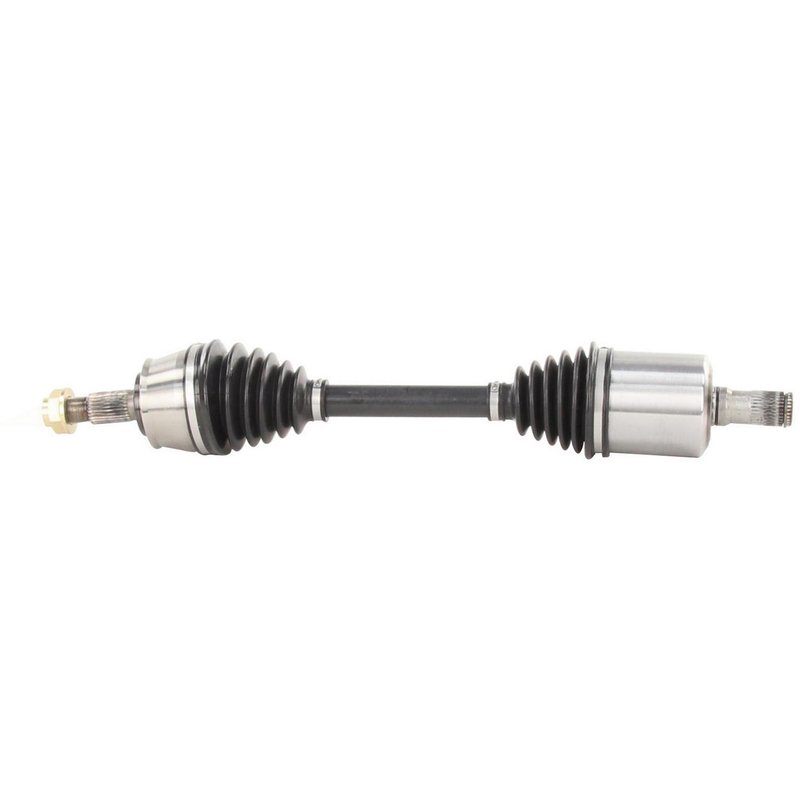

TrakMotive CH-8298 CV Axle Shaft - Front Right
Overview of TrakMotive AAR CV Axle Shaft CH-8298
The TrakMotive AAR CV Axle Shaft CH-8298 is designed specifically for Jeep Cherokee models, providing reliable driveline performance. This new CV axle shaft is engineered to meet OEM specifications, ensuring proper fit and function for your vehicle.
- Compatible with Jeep Cherokee
- Part Number: CH-8298
- New, not remanufactured
- Includes axle nut with stake locking type
- Neoprene boot material for durability
- Overall compressed length: 24.55 inches (623.5 mm)
- Hex axle nut head type with 1 2/5 inch (35.6 mm) hex size
- Inboard joint type: Male with 30 splines
- Outboard joint type: Conventional with 27 splines
About the AAR CV Axle Shaft Product Line
The AAR CV Axle Shaft line by TrakMotive focuses on delivering quality CV components tailored for specific vehicle applications. This product line emphasizes precise fitment and durable materials, such as neoprene boots and stake-type locking axle nuts, to maintain driveline integrity and reduce maintenance needs. The CH-8298 model exemplifies these standards for Jeep Cherokee owners requiring dependable replacement parts.
Detailed Product Description
The CH-8298 CV axle shaft features a neoprene boot designed to resist wear and environmental damage, extending the life of the joint. The inboard joint uses a male connection style with 30 splines, while the outboard joint is conventional with 27 splines, ensuring compatibility with the Jeep Cherokee’s driveline system. The included axle nut is a hex head type, measuring 1 2/5 inches (35.6 mm) across flats, with a length of 1 1/2 inches (37.53 mm) and a thread size of M24*1.5. The stake locking type nut provides secure fastening to prevent loosening during operation. The overall compressed length of 24.55 inches (623.5 mm) matches OEM specifications for proper installation and performance.
Common Applications and Problem Solving
- Replacement for worn or damaged CV axle shafts on Jeep Cherokee
- Resolves issues with axle vibration or clicking noises during turns
- Addresses grease leakage caused by torn or degraded boots
- Fixes driveline instability due to joint wear or spline damage
- Prevents axle nut loosening with stake locking design
Installation Notes and Tips
- Ensure compatibility with Jeep Cherokee model year before installation
- Use proper torque specifications for the M24*1.5 axle nut to avoid damage
- Inspect surrounding components such as wheel bearings and seals during replacement
- Verify the orientation of the male inboard joint and spline engagement
- Check boot seating to prevent premature wear or contamination
Quality Assurance and Warranty
The TrakMotive AAR CV Axle Shaft CH-8298 is a new part manufactured to meet or exceed OEM standards. It includes a neoprene boot for enhanced durability and a stake locking axle nut for secure installation. While specific warranty details are not provided, TrakMotive products typically come with manufacturer-backed quality assurance to support reliable performance in Jeep Cherokee vehicles.
| Brand | TrakMotive |
| Part Number | CH-8298 |
| Position | AAR CV Axle Shaft, Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1 2/5 |
| Axle Nut Hex Size (mm) | 35.6 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37.53 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 30 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 24.55 |
| Overall Compressed Length (mm) | 623.5 |
This part fits 6 vehicles. Search below:
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2017 | Jeep | Cherokee | AWD | 3.2L | V6 | Front Right | Standard Duty Suspension (opt SDA); AAR CV Axle Shaft |
| 2017 | Jeep | Cherokee | 4WD | 3.2L | V6 | Front Right | Updated Design; Standard Duty Suspension (opt SDA); AAR CV Axle Shaft |
| 2016 | Jeep | Cherokee | AWD | 3.2L | V6 | Front Right | Standard Duty Suspension (opt SDA); AAR CV Axle Shaft |
| 2015 | Jeep | Cherokee | AWD | 3.2L | V6 | Front Right | Standard Duty Suspension (opt SDA); AAR CV Axle Shaft |
| 2014 | Jeep | Cherokee | AWD | 3.2L | V6 | Front Right | Updated Design; Standard Duty Suspension (opt SDA); AAR CV Axle Shaft |
| 2014 | Jeep | Cherokee | 4WD | 3.2L | V6 | Front Right | Standard Duty Suspension (opt SDA); AAR CV Axle Shaft |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
