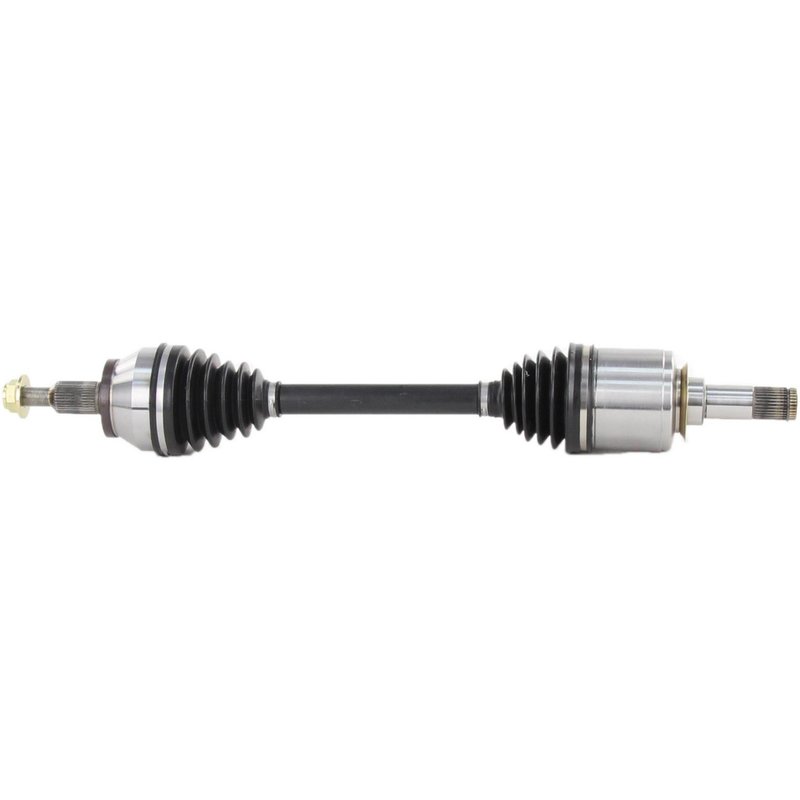

TrakMotive CH-8304 CV Axle Shaft - Rear Left

Overview of TrakMotive CV Axle Shaft CH-8304

The TrakMotive CV Axle Shaft CH-8304 is engineered for reliable driveline performance in Chrysler and Dodge vehicles, including the 300, Challenger, and Charger models. Designed as a new replacement part, it ensures precise fitment and durability for your vehicle's front axle assembly.

• Compatible with Chrysler 300, Dodge Challenger, and Dodge Charger
• Includes magnetic ABS tone ring with 48 teeth for accurate wheel speed sensing
• Neoprene boot material for enhanced protection against contaminants
• Self-locking hex axle nut (M22*1.5 thread size) included for secure installation
• Overall compressed length of 31.95 inches (811.5 mm) for exact fit
• Inboard joint with 32 splines and male connection style
• Outboard conventional joint with 35 splines and spline shaft connection

Detailed Product Features and Specifications

This TrakMotive CV Axle Shaft from the CV Axle Shaft product line is designed to meet the specific requirements of select Chrysler and Dodge vehicles. The magnetic ABS tone ring with 48 teeth is included to maintain proper ABS sensor function, critical for vehicle safety systems. The neoprene boot material offers resistance to wear and environmental damage, extending the life of the joint. The axle nut features a self-locking design with a 1 1/4 inch hex size and a height of 21.2 mm, ensuring a secure fit during installation. Both inboard and outboard joints are engineered for compatibility with the vehicle’s drivetrain, with 32 and 35 splines respectively, providing smooth power transfer and durability.

Applications and Common Repair Uses

• Replacement of worn or damaged CV axle shafts on Chrysler 300, Dodge Challenger, and Dodge Charger
• Restoring proper ABS sensor function with included magnetic tone ring
• Addressing axle joint boot tears or leaks to prevent grease loss and contamination
• Fixing axle shaft vibration or clicking noises during turns
• Repairing axle nut issues with included self-locking hex nut for secure fastening

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Verify the axle shaft length and spline counts match the original part. Use the included self-locking axle nut with the specified M22*1.5 thread size and torque to manufacturer specifications. Inspect the ABS tone ring and sensor alignment during installation to maintain proper ABS function. It is recommended to replace axle nuts and boots if damaged or worn during removal.

Quality Assurance and Warranty Information

The TrakMotive CV Axle Shaft CH-8304 is a new, OEM-quality replacement part designed to meet or exceed original equipment specifications. Manufactured with durable materials including neoprene boots and precision-machined joints, this axle shaft supports reliable driveline performance. While specific warranty details are not provided, TrakMotive products typically adhere to industry standards for quality and reliability.
