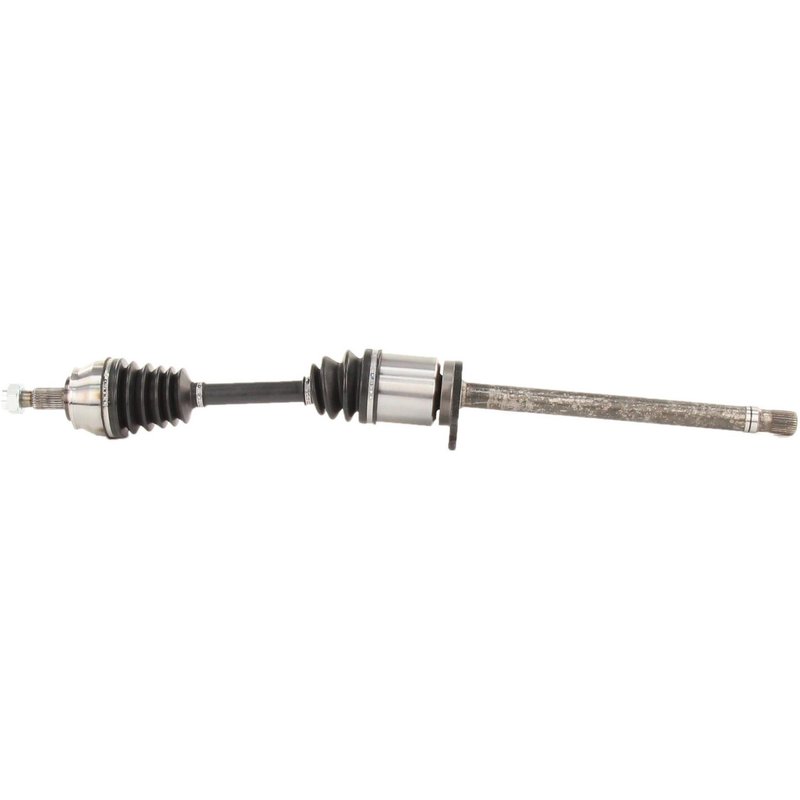

TrakMotive CH-8305 CV Axle Shaft - Front Right
| Brand | TrakMotive CH-8305 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 26.5 |
| Axle Nut Hex Size (in) | 1 3/7 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 5/8 |
| Axle Nut Length (mm) | 41.5 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 30 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 38.9 |
| Overall Compressed Length (mm) | 988 |
| Product line | AAR CV Axle Shaft |
| Fits | Chrysler · 3 vehicles |
New CV axle shaft. A direct replacement for dependable driveline service.
Neoprene boot. Helps protect the joint from dirt and moisture.
Axle nut included. Saves time by providing the required hardware.
Cross-references TrakMotive CH-8305 for the same application. See all 1.
TrakMotive CH-8305 CV Axle Shaft
The TrakMotive AAR CV Axle Shaft CH-8305 is a new front right axle assembly for select Chrysler 200 models. It is built for 2015-2017 Chrysler 200 applications and includes the axle nut for a more complete replacement on the passenger-side front driveline.
Key Features
- Fits 2015-2017 Chrysler 200, front right
- TrakMotive AAR CV Axle Shaft line
- New replacement axle shaft for driveline service
- Neoprene boot material
- Male inboard shaft connection style
- Conventional outboard joint type with spline connection
- Axle nut included; hex head, stake locking type, M24 x 1.5 thread
- No ABS tone ring included
- Overall compressed length: 988 mm (38.9 in.)
Detailed Description
TrakMotive CH-8305 is a front right CV axle shaft for the 2015-2017 Chrysler 200. This axle uses a 30-spline inboard connection and 27-spline outboard configuration, with a neoprene boot and conventional outboard joint design. The axle nut is included and uses a 36 mm hex size with stake-style locking. For shoppers searching for a 2015 Chrysler 200 front right CV axle shaft, 2016 Chrysler 200 passenger side axle, or 2017 Chrysler 200 driveline replacement, CH-8305 matches the listed application.
The AAR CV Axle Shaft line is positioned as a direct-fit driveline replacement option within TrakMotive’s axle program. This part number, CH-8305, is the listed interchange reference for the same application.
What It Helps Address
- Clicking or popping during turns from a worn outer CV joint
- Vibration or shudder under acceleration from axle wear
- Torn boot conditions that can lead to grease loss and contamination
- Excessive play in the front right driveline assembly
- Noise from a damaged or fatigued axle shaft
Installation Notes and Tips
Verify the vehicle is a 2015-2017 Chrysler 200 with front right fitment before installation. Confirm spline count, axle nut thread size, and overall length against the removed part. The axle nut is included; use the correct 36 mm hex tooling and follow the vehicle service procedure for stake-style locking. Because this axle does not include an ABS tone ring, confirm the vehicle’s ABS configuration before ordering.
Quality Assurance
TrakMotive states this axle is backed by a limited lifetime warranty and produced by an ISO 9001:1007 and TS 16949:2009 certified company. The product is new and built to the listed specifications for the 2015-2017 Chrysler 200 front right application.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2017 | Chrysler | 200 | FWD | 3.6L | V6 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2016 | Chrysler | 200 | FWD | 3.6L | V6 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2015 | Chrysler | 200 | FWD | 3.6L | V6 | Front Right | Updated Design; AAR CV Axle Shaft |
