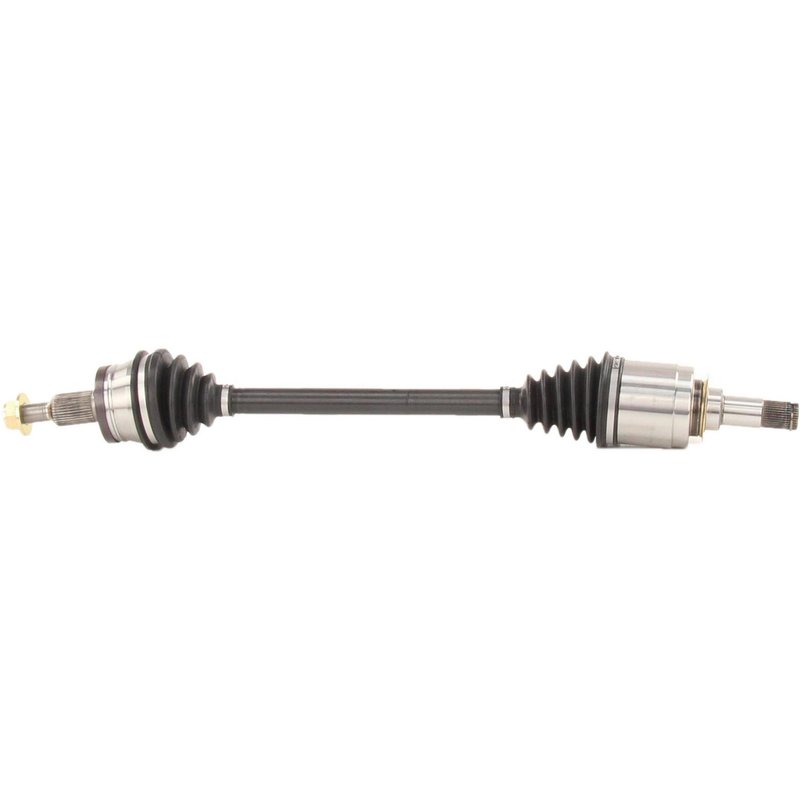

TrakMotive CH-8310 CV Axle Shaft - Rear Left or Rear Right
| Brand | TrakMotive CH-8310 |
|---|---|
| Position | Rear Right |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Magnetic |
| Abs Tone Ring Included | Yes |
| Axle Nut Included | No |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 37 |
| Number Of Outboard Splines | 35 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 32.09 |
| Overall Compressed Length (mm) | 815 |
| Product line | CV Axle Shaft |
| Fits | Chrysler and Dodge · 20 vehicles |
New replacement part. Built as a new CV axle shaft for dependable driveline service.
Neoprene boot material. Helps resist wear while keeping the joint protected.
Magnetic ABS tone ring. Includes a 48-tooth ring for consistent wheel-speed signal.
Cross-references TrakMotive CH-8310 for the same application. See all 1.
CV Axle Shaft for Rear Driveline Service
TrakMotive CH-8310 is a new CV axle shaft built for rear driveline replacement on select Chrysler and Dodge applications. It uses a neoprene boot, a magnetic ABS tone ring with 48 teeth, and OE-style spline counts to support accurate fitment on the listed vehicles.
The TrakMotive CV Axle Shaft line focuses on direct replacement driveline components for passenger vehicles that need precise spline engagement and ABS signal compatibility. CH-8310 is a rear axle solution for Chrysler 300, Dodge Challenger, and Dodge Charger applications where the original axle specifications match the listed dimensions and spline counts.
Key Features
- New CV axle shaft for rear driveline replacement
- Neoprene boot material for axle joint protection
- Magnetic ABS ring with 48 tooth count
- ABS tone ring included
- 37 inboard splines and 35 outboard splines
- Male inboard shaft connection style
- Conventional outboard joint type with spline connection
- Overall compressed length: 32.09 in. (815 mm)
- Axle nut not included
Detailed Description
TrakMotive CH-8310 is a rear CV axle shaft engineered for specific Chrysler and Dodge rear applications, including 2015-2018 Chrysler 300 rear right, 2015-2016 Chrysler 300 rear left, 2015-2018 Dodge Challenger rear right, 2015-2016 Dodge Challenger rear left, 2015-2018 Dodge Charger rear left, 2015-2016 Dodge Charger rear right, and 2019-2020 Dodge Challenger rear. Confirm spline counts, diameter, and position before ordering, especially on vehicles noted with VIN G or 2.62 ratio requirements. This part number, CH-8310, is a direct-fit style replacement for the listed rear axle positions when the original specifications match.
TrakMotive manufactures this CV axle shaft as a new component and backs its driveline products with ISO 9001:1007 and TS 16949:2009 certified manufacturing practices. CH-8310 is built for applications that require a magnetic ABS ring and a rear axle shaft with the specified spline configuration.
What It Helps Address
- Clicking or popping from a worn rear CV axle joint
- Vibration during acceleration from axle wear or imbalance
- ABS warning concerns related to a damaged tone ring
- Axle boot deterioration that can lead to grease loss and joint wear
- Fitment issues when replacing a rear axle on Chrysler 300, Dodge Challenger, or Dodge Charger models
Installation Notes and Tips
Verify rear position, spline counts, and axle length against the original shaft before installation. Compare the inboard and outboard connection styles, and confirm whether the vehicle uses the listed ABS ring configuration. For 2015-2018 Chrysler 300 and Dodge Challenger applications, and 2015-2018 Dodge Charger applications, review the fitment notes carefully before installation.
CH-8310 is listed for rear right, rear left, and rear applications depending on model year and trim details. Use the vehicle VIN and original axle measurements to confirm the correct side and configuration before service.
Quality Assurance
TrakMotive identifies this axle shaft as a new replacement part and states that its driveline products are produced under ISO 9001:1007 and TS 16949:2009 certified quality systems. The manufacturer also provides a limited lifetime warranty.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2020 | Dodge | Challenger | RWD | 3.6L | V6 | Rear | 2.62 Ratio; AAR CV Axle Shaft |
| 2019 | Dodge | Challenger | RWD | 3.6L | V6 | Rear | 2.62 Ratio; AAR CV Axle Shaft |
| 2018 | Chrysler | 300 | RWD | 3.6L | V6 | Rear Right | Compare spline counts and diameter to original; CV Axle Shaft |
| 2018 | Dodge | Challenger | RWD | 3.6L | V6 | Rear Right | VIN G (8th Digit); Compare spline counts and diameter to original; CV Axle Shaft |
| 2018 | Dodge | Charger | RWD | 3.6L | V6 | Rear Left | Compare spline counts and diameter to original; CV Axle Shaft |
| 2017 | Chrysler | 300 | RWD | 3.6L | V6 | Rear Right | Compare spline counts and diameter to original; CV Axle Shaft |
| 2017 | Dodge | Challenger | RWD | 3.6L | V6 | Rear Right | VIN G (8th Digit); Compare spline counts and diameter to original; CV Axle Shaft |
| 2017 | Dodge | Charger | RWD | 3.6L | V6 | Rear Left | Compare spline counts and diameter to original; CV Axle Shaft |
| 2016 | Chrysler | 300 | RWD | 3.6L | V6 | Rear Right | Compare spline counts and diameter to original; CV Axle Shaft |
| 2016 | Chrysler | 300 | RWD | 3.6L | V6 | Rear Left | Compare spline counts and diameter to original; CV Axle Shaft |
| 2016 | Dodge | Challenger | — | 3.6L | V6 | Rear Right | VIN G (8th Digit); Compare spline counts and diameter to original; CV Axle Shaft |
| 2016 | Dodge | Challenger | — | 3.6L | V6 | Rear Left | VIN G (8th Digit); Compare spline counts and diameter to original; CV Axle Shaft |
| 2016 | Dodge | Charger | RWD | 3.6L | V6 | Rear Right | Compare spline counts and diameter to original; CV Axle Shaft |
| 2016 | Dodge | Charger | RWD | 3.6L | V6 | Rear Left | Compare spline counts and diameter to original; CV Axle Shaft |
| 2015 | Chrysler | 300 | RWD | 3.6L | V6 | Rear Right | Compare spline counts and diameter to original; CV Axle Shaft |
| 2015 | Chrysler | 300 | RWD | 3.6L | V6 | Rear Left | Compare spline counts and diameter to original; CV Axle Shaft |
| 2015 | Dodge | Challenger | — | 3.6L | V6 | Rear Right | VIN G (8th Digit); Compare spline counts and diameter to original; CV Axle Shaft |
| 2015 | Dodge | Challenger | — | 3.6L | V6 | Rear Left | VIN G (8th Digit); Compare spline counts and diameter to original; CV Axle Shaft |
| 2015 | Dodge | Charger | RWD | 3.6L | V6 | Rear Right | Compare spline counts and diameter to original; CV Axle Shaft |
| 2015 | Dodge | Charger | RWD | 3.6L | V6 | Rear Left | Compare spline counts and diameter to original; CV Axle Shaft |
