TrakMotivePart #: CH-8314

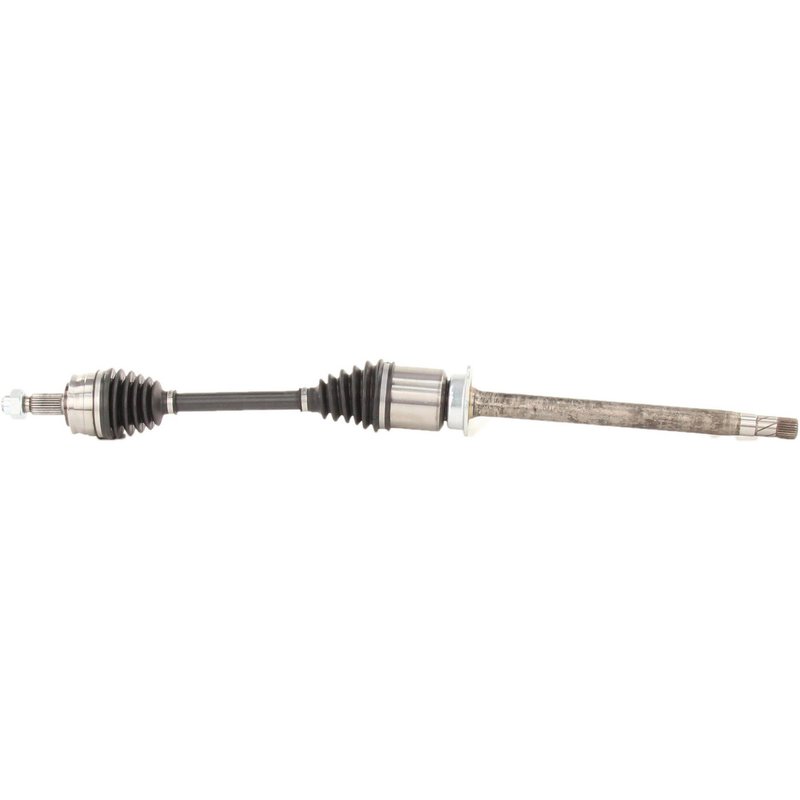

TrakMotive CH-8314 CV Axle Shaft - Front Right
⚙️ 5 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$215.89Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship
Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
📦AAR CV Axle Shaft, Front Right
🚗Fitment: Dodge, Dart
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all CV Axle Shaft options
TrakMotive CH-8314 CV Axle Shaft - Front Right
| Brand | TrakMotive |
| Part Number | CH-8314 |
| Position | AAR CV Axle Shaft, Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1.04 |
| Axle Nut Height (mm) | 26.5 |
| Axle Nut Hex Size (in) | 1.42 |
| Axle Nut Hex Size (mm) | 36 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.63 |
| Axle Nut Length (mm) | 41.5 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 39.76 |
| Overall Compressed Length (mm) | 1010 |
This part fits 5 vehicles. Search below:
| Year | Make | Model | Submodel | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2016 | Dodge | Dart | Aero | Automatic Dual Clutch | Front Right | Updated Design; AAR CV Axle Shaft | ||
| 2015 | Dodge | Dart | Aero | Automatic Dual Clutch | Front Right | Updated Design; AAR CV Axle Shaft | ||
| 2014 | Dodge | Dart | Aero | Automatic Dual Clutch | 1.4L | L4 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2013 | Dodge | Dart | Limited | Automatic | 1.4L | L4 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2013 | Dodge | Dart | Aero | Automatic Dual Clutch | 1.4L | L4 | Front Right | Updated Design; AAR CV Axle Shaft |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
CH-8314
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
