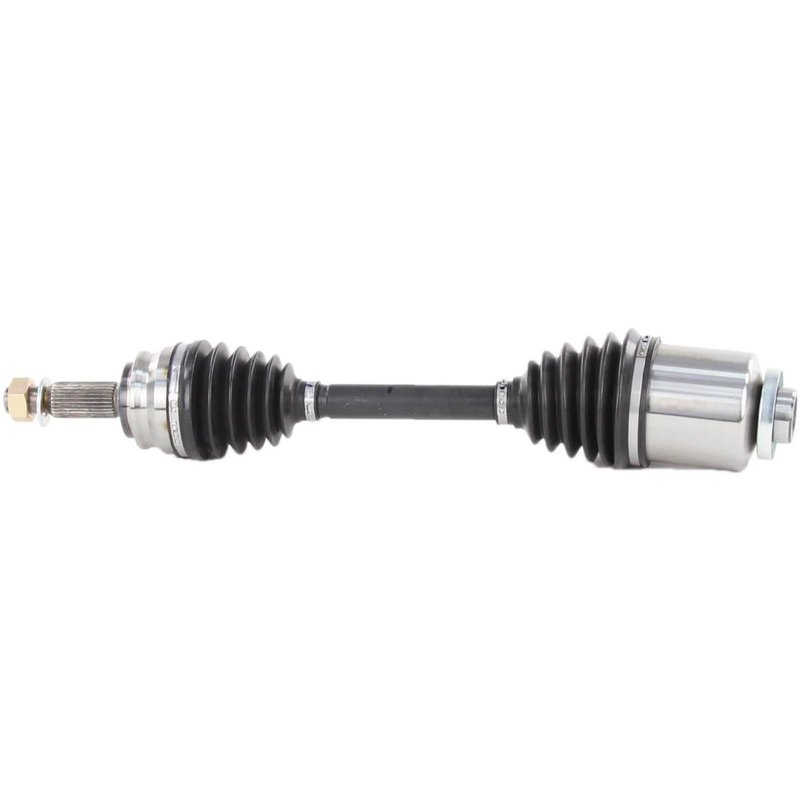

TrakMotive CH-8315 CV Axle Shaft - Front Right
| Brand | TrakMotive CH-8315 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.59 |
| Axle Nut Height (mm) | 15 |
| Axle Nut Hex Size (in) | 1.26 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.45 |
| Axle Nut Length (mm) | 36.95 |
| Axle Nut Locking Type | Cotter Pin |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 28-2 |
| Number Of Outboard Splines | 28 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 34.65 |
| Overall Compressed Length (mm) | 858.5 |
| Product line | AAR CV Axle Shaft |
| Fits | Jeep and Dodge · 34 vehicles |
New replacement shaft. Built as a direct-fit CV axle shaft for straightforward service.
Neoprene boot material. Helps resist wear while keeping the joint protected.
Axle nut included. Comes with the nut and cotter-pin locking setup.
Cross-references TrakMotive CH-8315 for the same application. See all 1.
TrakMotive CH-8315 Front Right CV Axle Shaft
The TrakMotive AAR CV Axle Shaft CH-8315 is a new front right axle assembly for select Jeep Compass, Jeep Patriot, and Dodge Caliber applications. It is built with a neoprene boot, spline-style shaft connections, and a conventional outboard joint for direct driveline service on listed vehicles.
Key Features
- Part number CH-8315 from TrakMotive AAR CV Axle Shaft line
- Front right CV axle shaft for select Jeep and Dodge applications
- New construction with neoprene boot material
- Female inboard joint with spline connection
- Conventional outboard joint with spline connection
- Includes axle nut with M22 x 1.5 thread, 32 mm hex size, and cotter pin locking type
- No ABS tone ring included
- Overall compressed length: 34.65 in. (858.5 mm)
Product Details
TrakMotive CH-8315 is an AAR CV axle shaft built for front right service on 2007-2017 Jeep Patriot, 2007-2016 Jeep Compass, and 2007-2012 Dodge Caliber applications, with a 2009 Dodge Caliber VIN B (8th digit) listing and a 2017 Jeep Compass listing for the updated design with classic-style vertical rear door handle. The axle uses 28 outboard splines and a 28-2 inboard spline count, along with a female inboard joint and conventional outboard joint for the specified driveline layout. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What This Axle Shaft Helps Address
- Clicking or popping during turns from worn CV joints
- Vibration or shudder under acceleration from a damaged axle shaft
- Grease leakage caused by a torn or deteriorated boot
- Driveline noise from spline wear or joint wear
- Front right axle replacement needs on listed Jeep Compass, Jeep Patriot, and Dodge Caliber models
Installation Notes and Tips
Verify front right fitment by year, model, and any listed notes before installation. Confirm the axle nut thread size, hex size, and locking style match the vehicle specification, and check whether the application uses ABS or non-ABS hardware since this axle does not include an ABS tone ring. Inspect seals, hub condition, and mating splines during service to help ensure proper fit and operation.
Quality Assurance
TrakMotive identifies this CH-8315 axle as a new part and backs it with a limited lifetime warranty. The manufacturer also states ISO 9001:1007 and TS 16949:2009 certification, reflecting controlled production and quality management practices.
| Year | Make | Model | Submodel | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2017 | Jeep | Compass | — | FWD | Manual | — | — | Front Right | Updated Design; classic style, vertical rear door handle; AAR CV Axle Shaft |
| 2017 | Jeep | Patriot | — | FWD | Manual | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2017 | Jeep | Patriot | — | FWD | Automatic | 2.4L | L4 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2016 | Jeep | Compass | — | FWD | Manual | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2016 | Jeep | Patriot | — | FWD | Manual | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2016 | Jeep | Patriot | — | FWD | Automatic | 2.4L | L4 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2015 | Jeep | Compass | — | FWD | Manual | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2015 | Jeep | Patriot | — | FWD | Manual | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2015 | Jeep | Patriot | — | FWD | Automatic | 2.4L | L4 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2014 | Jeep | Compass | — | FWD | Manual | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2014 | Jeep | Patriot | — | FWD | Manual | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2013 | Jeep | Compass | — | FWD | Manual | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2013 | Jeep | Patriot | — | FWD | Manual | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2012 | Dodge | Caliber | — | — | Manual | 2.0L | L4 | Front Right | AAR CV Axle Shaft |
| 2012 | Jeep | Compass | — | FWD | Manual | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2012 | Jeep | Patriot | — | FWD | Manual | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2011 | Dodge | Caliber | — | — | Manual | 2.4L | L4 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2011 | Dodge | Caliber | — | — | Manual | 2.0L | L4 | Front Right | AAR CV Axle Shaft |
| 2011 | Jeep | Compass | — | FWD | Manual | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2011 | Jeep | Patriot | — | FWD | Manual | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2010 | Dodge | Caliber | — | — | Manual | 2.4L | L4 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2010 | Dodge | Caliber | — | — | Manual | 2.0L | L4 | Front Right | AAR CV Axle Shaft |
| 2010 | Jeep | Compass | — | FWD | Manual | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2010 | Jeep | Patriot | — | FWD | Manual | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2009 | Dodge | Caliber | SRT-4 | — | Manual | 2.4L | L4 | Front Right | Updated Design; VIN B (8th digit); AAR CV Axle Shaft |
| 2009 | Dodge | Caliber | — | — | — | 1.8L | L4 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2009 | Jeep | Compass | — | FWD | Manual | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2009 | Jeep | Patriot | — | FWD | Manual | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2008 | Dodge | Caliber | — | — | — | 1.8L | L4 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2008 | Jeep | Compass | — | FWD | Manual | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2008 | Jeep | Patriot | — | FWD | Manual | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2007 | Dodge | Caliber | — | — | — | 1.8L | L4 | Front Right | Updated Design; AAR CV Axle Shaft |
| 2007 | Jeep | Compass | — | FWD | Manual | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2007 | Jeep | Patriot | — | FWD | Manual | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
