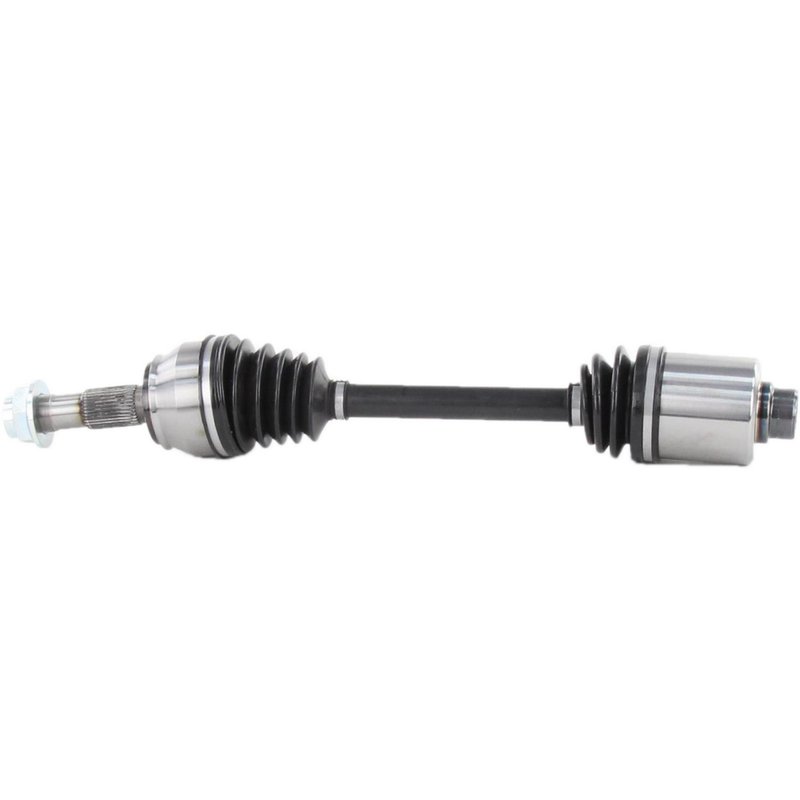

TrakMotive CH-8320 CV Axle Shaft - Front Right

TrakMotive AAR CV Axle Shaft CH-8320 Overview

The TrakMotive AAR CV Axle Shaft CH-8320 is engineered for reliable driveline performance in Ram ProMaster 1500, 2500, and 3500 models. Designed as a new replacement part, it ensures proper fit and function for your vehicle's front axle assembly.

• Compatible with Ram ProMaster 1500, 2500, and 3500
• New CV axle shaft with no ABS tone ring included
• Includes axle nut with stake locking type for secure installation
• Inboard joint type: male with 28 splines
• Outboard joint type: conventional with 35 splines
• Overall compressed length: 26.04 inches (661.5 mm)
• Axle nut specifications: hex head, 1.22 inches (31.1 mm) height, 1.8 inches (45.7 mm) hex size, M33x1.5 thread size

About the AAR CV Axle Shaft Product Line

The AAR CV Axle Shaft line by TrakMotive focuses on delivering precise driveline components tailored for specific vehicle applications. This product line emphasizes compatibility and durability, providing new CV axle shafts designed to meet factory specifications for Ram ProMaster vans. The CH-8320 model exemplifies this approach with its detailed spline counts and axle nut features, ensuring a proper fit and reliable operation.

Detailed Product Description

The CH-8320 CV axle shaft is a critical driveline component that transfers torque from the transmission to the wheels while accommodating suspension movement. This new axle shaft features a male inboard joint with 28 splines and a conventional outboard joint with 35 splines, both utilizing spline connection styles for secure engagement. The included axle nut has a hex head design with a stake locking mechanism, thread size M33x1.5, and dimensions optimized for the Ram ProMaster series. The overall compressed length of 26.04 inches (661.5 mm) ensures proper fitment within the front axle assembly.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Ram ProMaster 1500, 2500, and 3500
• Resolves issues related to axle shaft vibration or clicking noises during turns
• Addresses axle nut loosening problems with included stake locking nut
• Restores driveline integrity after joint or spline wear
• Prevents drivetrain binding caused by faulty or bent axle shafts

Installation Notes and Tips

Ensure compatibility with your specific Ram ProMaster model before installation. Use proper torque specifications for the axle nut (M33x1.5 thread) and stake the nut to prevent loosening. Verify spline engagement on both inboard and outboard joints to avoid premature wear. It is recommended to inspect related suspension and driveline components during replacement to maintain overall system performance.

Quality Assurance and Warranty

The TrakMotive AAR CV Axle Shaft CH-8320 is manufactured to meet OEM standards for fit and function. This new part undergoes quality control inspections to ensure durability and reliability in service. Warranty coverage details should be confirmed with the distributor or manufacturer, as they may vary by region and application.
